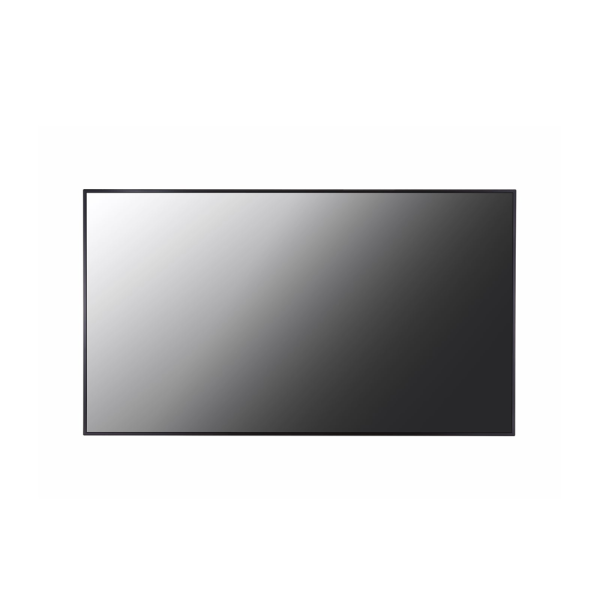

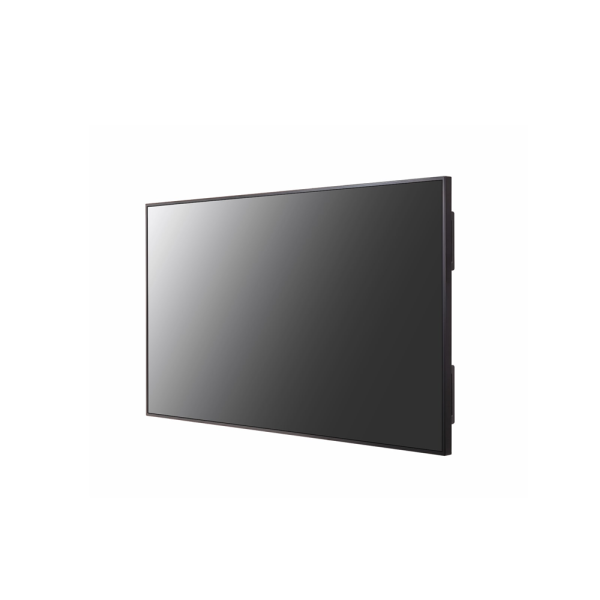

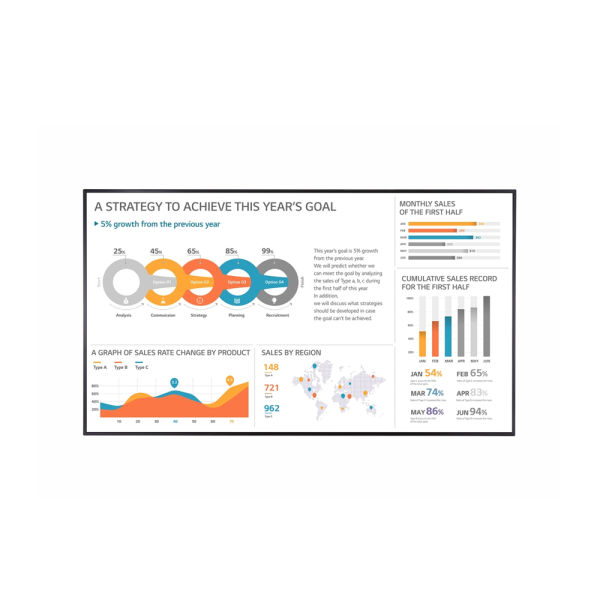

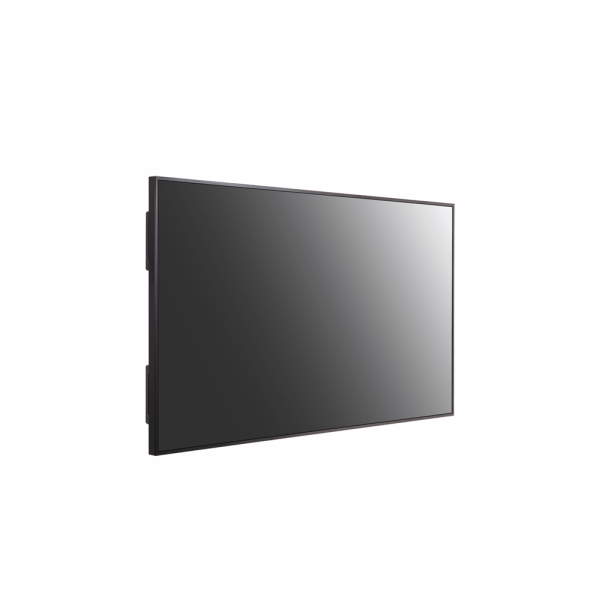

LG UH5J 86" 4K Smart LED Commercial Display

SKU : 86UH5J-H
Brand : LG
Availablity : Online Only, In Stock
Ships within 1 and 3 days from our Seven Hills, NSW warehouse
Screen Size: 86" IPS, Back Light Type: Edge, Aspect Ratio: 16:9, Native Resolution: 3840 x 2160 (UHD), Refresh Rate: 120Hz, Brightness: 500nit (Typ.), 03 Years Limited Warranty, 86UH5J-H.
Ask a question about this product
Call Us

Estimated Shipping

Pay what you see.

No surcharge On Credit Card, AMEX or Paypal. American express, master card, nab, Paypal, visa

Share

  • Description
  • Specifications
  • Reviews

Product Description

Manufacture # LG | Model # 86UH5J-H



With a recommend brightness of 500 cd/m² for indoor display, the UH5J-H series clearly delivers content and attracts public attention, making it the most suitable display for marketing in meeting rooms, airports, retail, shopping malls, etc.


Features:

  • In various places the UH5J-H series is unable to avoid exposure to environments containing dust, humidity, etc. which may hamper performance over time. The conformal coating on power board reduces these risks by protecting UH5J-H series from salt, dust, iron powder, humidity, etc.
  • The UH5J-H series has supported Crestron Connected for high compatibility with professional AV controls to achieve seamless integration and automated control, boosting business management efficiency.
  • The IP5x Dust-Proof Certification ensures that the product is protected from dust, reducing the risk of performance degradation.


Overview:

  • Screen Size: 86" IPS
  • Back Light Type: Edge
  • Aspect Ratio: 16:9
  • Native Resolution: 3840 x 2160 (UHD)
  • Refresh Rate: 120Hz
  • Brightness: 500nit (Typ.)



Manufacturer Warranty: 03 Years Limited Warranty

Technical Specifications

Panel:-
Screen Size 86"
Panel Technology IPS
Back Light Type Edge
Aspect Ratio 16:9
Native Resolution 3840 x 2160 (UHD)
Refresh Rate 120Hz
Brightness 500nit (Typ.)
Contrast Ratio 1,100:1
Dynamic CR 1,000,000:1
Color gamut NTSC 72%
Viewing Angle(H x V) 178 X 178
Color Depth 10bib, 1.07Billion colors
Response Time 8ms (G to G)
Surface Treatment(Haze) 0.28
Life time 50,000Hrs (Typ.)
Operation Hours (Hours/Day) 24/7
Connectivity:-
Input HDMI (3, HDMI1/HDMI2 : HDCP 2.2/1.4, HDMI3 : HDCP 1.4), DP (1, HDCP2.2/1.3), DVI-D (HDCP1.4), Audio In, RS232C IN (1, 4pin Phone-jack), RJ45(LAN), IR IN, USB2.0 Type A(1)
Output HDMI Out, Audio Out, RS232C OUT (1, 4pin Phone-jack)
Power:-
Power Supply AC 100-240V~, 50/60Hz
Power Type Built-In Power
Power Consumption:-
Typ. 215W (TBD)
Max. 280W (TBD)
BTU (British Thermal Unit) 733.69 BTU/Hr(Typ.)
955.5 BTU/Hr(Max) (TBD)
Smart Enegy Saving(~70%) 150.5W (TBD)
DPM 0.5W
Power off 0.5W
Sound:-
Speaker Yes
OPS Compatibility:-
OPS Type Compatible Yes
Certification:-
Safety CB / NRTL
EMC FCC Class "A" / CE / KC
ErP / Energy Star Yes (NewErP) / No (TBD)
Accessory:-
Basic Remote Controller(include battery 2ea), Power Cord, QSG, Regulation Book, Phone to RS232C Gender
Optional OPS Kit(KT-OPSF), LSW640A/B(Wall Mount)
Mechanical Specification:-
Bezel Color Black
Bezel Width Even bezel : 14.3mm
Weight(Head) 49.0Kg
Monitor Dimension(W x H x D) 1926.2 x 1097.2 x 60.6mm
(without Handle and LG Logo)
Handle Yes
VESA Standard Mount Interface 600 x 400
