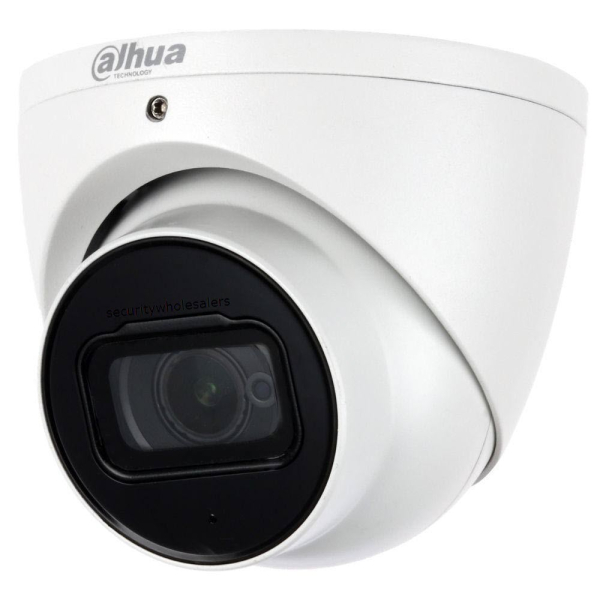

Dahua HDW3866EMP 8MP Wizsense SMD 4.0 (4K) Turret Fixed Camera

Sku: DH-IPC-HDW3866EMP-S-AUS

Brand: Dahua

Category: IP Cameras

$188.10

Shipping Information

Availability: On Order

On Order - These items are sourced upon request and may take longer to deliver. We will confirm availability once your order is received, as some products may occasionally be discontinued or unavailable.

Shipping Calculator

Dahua WizSense offers advanced AI security cameras with high-accuracy human and vehicle detection. Features include SMD 4.0 for reduced false alarms, Starlight technology for low-light clarity, and real-time alerts via mobile apps. Ideal for intelligent, simple, and affordable security solutions.

-
+

100% Guarantee Safe Checkout

Thumbnail 3

Description

Manufacture: Dahua | Model: DH-IPC-HDW3866EMP-S-AUS



Launched by Dahua Technology, WizSense is a series of wide-range AI products and solutions that adopt independent AI chips and deep learning algorithms. It can recognize humans and vehicles in an image with high accuracy, enabling users to focus on real targets. WizSense focuses on humans and vehicles, benefiting everyone with intelligent functions, simple configuration and inclusive products.
SMD 4.0: With upgraded AI capabilities, the SMD function filters out irrelevant objects in the scene. Equipped with a new deep learning algorithm, SMD 4.0 is optimized to filter out small and large animals in the scene to avoid triggering false alarms. Also, SMD 4.0 can detect the colour information of clothing and vehicle for data support of quick search after an event.
WizSense Series - Engineered to provide smart, simple and affordable security. WizSense series cameras support an independent AI chip with a deep learning algorithm to provide a more intelligent and simple security solution focused on human and vehicle detection. This helps filter out false alerts triggered by bugs, changes in light, leaves, trees and animals.
Supports Smart Motion Detection Plus (SMD+) dramatically reduces false alarms in motion detection by only detecting humans and vehicles, greatly reducing false alerts triggered by bugs, changes in light, leaves, trees and animals. Target is tracked and triggers real-time alerts to a smart device through the iOS/Android app.
Through advanced video algorithms, Dahua's Intelligent Video Surveillance (IVS) technology supports smart functions such as Tripwire and Intrusion Detection.
Starlight technology generates clear images in near-complete darkness. A high-performing sensor and special algorithms work together to capture images in low-light and no-light environments.



Key Features



  • 8-MP 1/2.8" CMOS image sensor, excellent low luminance performance and high definition of images.
  • Outputs max. 8MP (3840 × 2160) @25/30 fps.
  • H.265 codec, high compression rate, ultra-low bit rate.
  • Built-in IR LED, max. IR distance: 30 m.
  • ROI, SMART H.264 +/H.265+, AI H.264/H.265, flexible coding, applicable to various bandwidth and storage environments.
  • Rotation mode, WDR, 3D NR, HLC, BLC, and digital watermarking, applicable to various monitoring scenes.
  • Intelligent detection: Intrusion, tripwire (support the classification and accurate detection of vehicle and human).
  • Abnormality detection: Motion detection, privacy masking, scene changing, audio detection, no SD card, SD card full, SD card error, network disconnection, IP conflict, illegal access, and voltage detection.
  • Max. 256 G Micro SD card. Built-in Mic.
  • 12 VDC/PoE power supply facilitates installation.
  • IP67 protection.
  • SMD 4.0, AI SSA.

Image Sensor 1/2.8" CMOS
Max. Resolution 3840 (H) × 2160 (V)
ROM 128 MB
RAM 1 GB
Scanning System Progressive
Electronic Shutter Speed Auto/Manual 1/3 s–1/100,000 s
Min. Illumination 0.007 lux@F1.4 (Color, 30 IRE)
0.0007 lux@F1.4 (B/W, 30 IRE)
0 lux (Illuminator on)
S/N Ratio > 56 dB
Illumination Distance 30 m (164 ft)
Illuminator On/Off Control Auto/Manual
Illuminator Number 2 (IR LED)
Pan/Tilt/Rotation Range Pan: 0°–360°; Tilt: 0°–78°; Rotation: 0°–360°
Lens Type Fixed-focal
Lens Mount M12
Focal Length 2.8 mm; 3.6 mm
Max. Aperture F1.4
Field of View 2.8 mm: Horizontal:107°; Vertical: 56°; Diagonal: 127°
3.6 mm: Horizontal:84°; Vertical: 47°; Diagonal: 97°
Iris Control Fixed
Close Focus Distance 2.8 mm: 1.5 m (4.9 ft)
3.6 mm: 2 m (6.6 ft)
Video Compression H.265; H.264; H.264H; H.264B; MJPEG (only supported by the sub stream)
Day/Night Auto (ICR)/Color/B/W
BLC Yes
HLC Yes
WDR 120 dB
Scene Self-adaptation (SSA) Yes
Alarm Events No SD card; SD card full; SD card error; network disconnection; IP conflict; illegal access; motion detection; video tampering; intrusion; tripwire; scene changing; audio detection; voltage detection; SMD; safety exception
Network Port RJ-45 (10/100 Base-T)
Interoperability ONVIF (Profile S/Profile G/Profile T); CGI; P2P; Milestone; Genetec
Certifications CE-LVD: EN62368-1;
CE-EMC: Electromagnetic Compatibility Directive 2014/30/EU;
FCC: 47 CFR FCC Part 15, Subpart B;
UL/CUL: UL62368-1 & CAN/CSA C22.2 No. 62368-1-14
Power Supply 12 VDC/PoE (802.3af)
Power Consumption Basic: 4.3 W (12 VDC); 4.9 W (PoE)
Max: 7.6 W (12 VDC); 8.9 W (PoE)
Operating Temperature –40 °C to +60 °C (–40 °F to 140 °F) /Less than 95% RH
Storage Temperature –40 °C to +60 °C (–40 °F to 140 °F)
Protection IP67
Casing Metal
Product Dimensions 93.6 mm × Φ106.0 mm (3.69" × Φ4.17")
Net Weight 500 g (1.10 lb)
Gross Weight 770 g (1.70 lb)
