Sku: 86XE3FS-B
Brand: LG
Category: Commercial Panel
Availability: On Order
On Order - These items are sourced upon request and may take longer to deliver. We will confirm availability once your order is received, as some products may occasionally be discontinued or unavailable.
Shipping Calculator
Find
86-inch UHD display with a resolution of 3,840 x 2,160, 3000 cd/m² brightness, and a 178° viewing angle. Built-in power, CE and FCC certified, and operates in temperatures from -30°C to 50°C.
We Accept
Manufacture: LG | Model: 86XE3FS-B

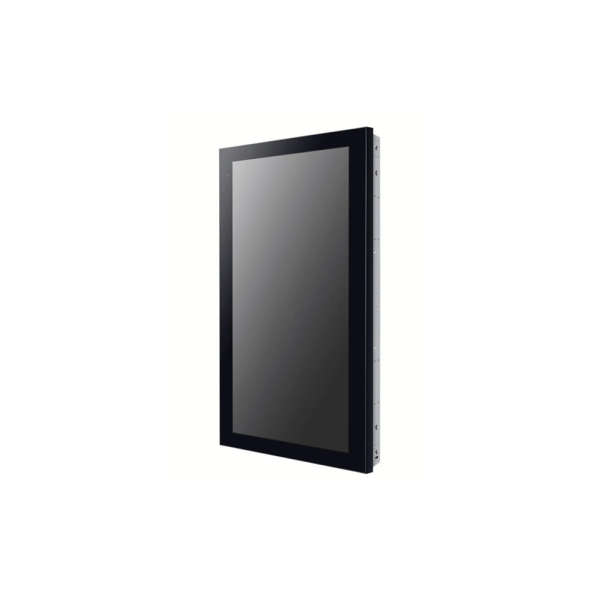

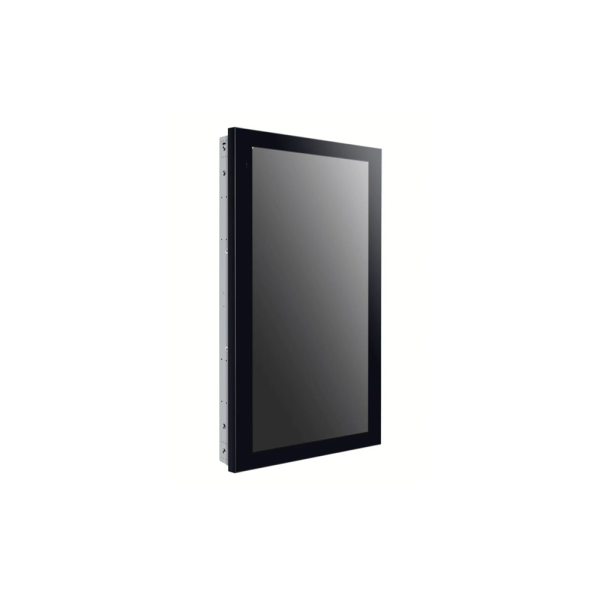

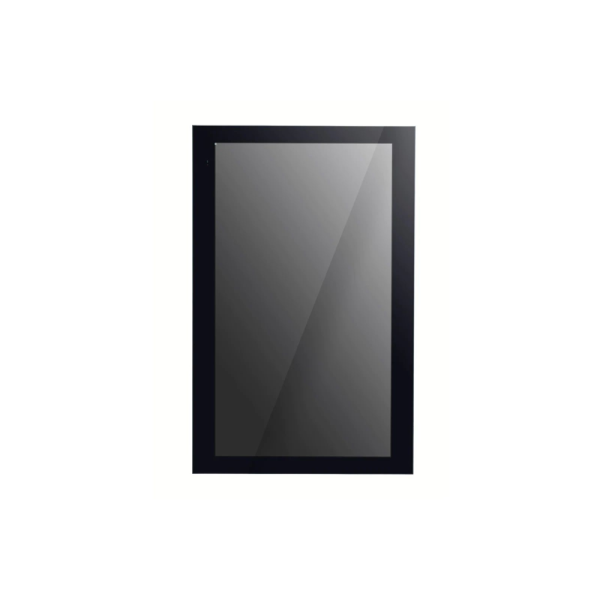

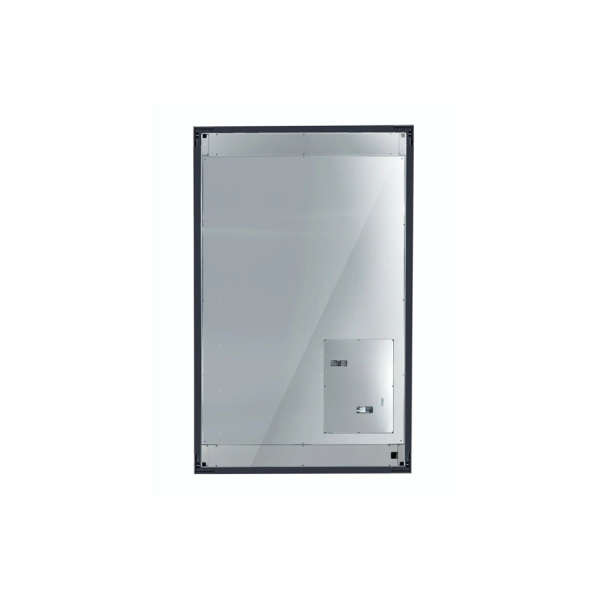

The 86” UHD Display is a powerful, large-format display offering impressive resolution and brightness, making it ideal for high-visibility environments. With a native resolution of 3840 x 2160 (UHD), the display offers a viewing angle of 178° x 178° and brightness levels of up to 3000 cd/m², ensuring a sharp and vivid display. The built-in power supply and a variety of accessories make it easy to integrate into various setups.
| CERTIFICATION | |
|---|---|
| Safety | CB / NRTL |
| ERP / Energy Star | Yes (EU Only) / No |
| EMC | FCC Class "A" / CE / KC |
| MECHANICAL SPECIFICATION | |
| Bezel Width | 101 mm (T/B), 135 mm (L/R) |
| Monitor Dimensions (W x H x D) | 1,338 x 2,100 x 187 mm |
| Weight (Head) | 276 kg |
| Packed Weight | 310 kg |
| ENVIRONMENT CONDITIONS | |
| Operation Humidity | 5% to 100% |
| Operation Temperature | -30°C to 50°C |
| POWER | |
| Power Type | Built-In Power |
| Power Supply | 100-240 V~, 50/60 Hz |
| PANEL | |
| Screen Size (Inch) | 86" |
| Native Resolution | 3,840 x 2,160 (UHD) |
| Viewing Angle (H x V) | 178 x 178 |
| Brightness | 3000 cd/m² (Typ.) / 2800 cd/m² (Min.) |
| OPS COMPATIBILITY | |
| OPS Type Compatible | No |
| ACCESSORY | |
| Basic | Remote Controller, HDMI Cable, USB Cable, Manual(IG&EIG), Regulation Book, Phone to RS232C Gender, LAN Extension Cable, Cord Grip Rubbers |
| POWER CONSUMPTION | |
| BTU (British Thermal Unit) | 0 BTU/Hr(Typ.), 0 BTU/Hr(Max) |
| DPM | 1W ↓ |
| Power Off | 0.5W ↓ |
| Max. Power | 1850W |
| Typ. Power | 1450W (Full White) 680W (IEC 62087) |
