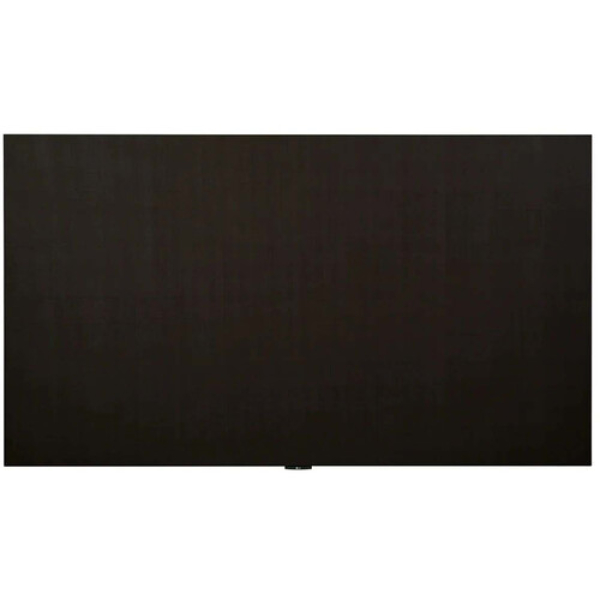

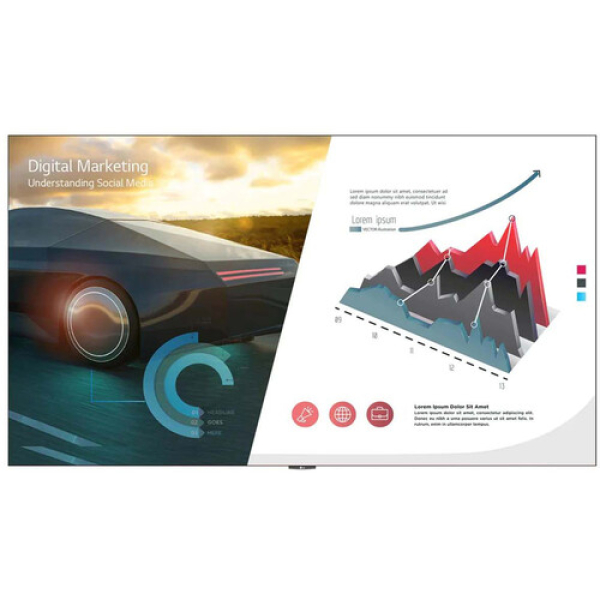

LG LAEC015 136" All-in-one Smart Series Screen Display

Name: LG LAEC015 136 All-in-one Smart Series Screen Display
Brand: LG
SKU: LAEC015-GN
Price: 53129 AUD
Availability: InStock

SKU : LAEC015-GN

Brand : LG

Availablity : on order
On Order items usually have to be ordered in and may take bit longer to get them delivered from our Seven Hills, NSW warehouse

LED display with 1,920 x 1,080 resolution, 500 cd/m² brightness, and a 3000:1 contrast ratio. Features embedded controller, front service access, and 100,000-hour LED lifespan. CE, FCC, and RoHS certified.

Ask a question about this product

Call Us

Estimated Shipping

Find

For Bulky items and non-metro Australia a different shipping will be quoted on order receipt.

No surcharge On Credit Card, AMEX or Paypal. American express, master card, nab, Paypal, visa

Description
Specifications
Reviews

Product Description

Manufacture: LG | Model: LAEC015-GN

The Large Format 55” Display offers superior optical and electrical performance for a variety of environments. With a screen resolution of 1920 x 1080 and high brightness of 500 cd/m², it ensures clear and vibrant visuals for both indoor and outdoor usage. The built-in speakers and low power consumption make it an ideal choice for long-term use in professional settings.

Key Features:

Size: 55 inches
Resolution: 1920 x 1080 (Full HD)
Pixel Configuration: 3 in 1 SMD
Pixel Pitch: 1.5625 mm
Screen Dimensions: 3004.6 x 1692.1 x 36.5 mm
Screen Surface Area: 5.06 m²
Weight of the Screen: 129 kg
Physical Pixel Density: 409,600 pixels/m²
Service Access: Front
Brightness (Min. after Calibration): 500 cd/m²
Brightness Uniformity: 98%
Color Uniformity: ±0.015Cx, Cy
Contrast Ratio: 3000:1
Processing Depth: 16 bits
Power Consumption (Max.): 2000 W per screen
Power Consumption (Avg.): 800 W per screen
Power Consumption (Max., W/m²): 395 W
Power Consumption (BTU/h/Screen, Max.): 6,824 BTU/h
Power Supply: 100 to 240 V
Frame Rate: 50 / 60 Hz
Refresh Rate: ≥2880 Hz
LED Lifetime: 100,000 hours (half brightness)
Operating Temperature: 0°C to +40°C
Operating Humidity: <90% RH (without condensation)
IP Rating (Front): IP30
IP Rating (Rear): IP20
Speaker: Built-in (9W + 9W)
Certification: CE, FCC, ETL, CB
Environment: RoHS, REACH
Controller: Embedded

Technical Specifications

PHYSICAL PARAMETERS
Pixel Configuration	3 in 1 SMD
Pixel Pitch (mm)	1.5625
Screen Resolution	1,920 x 1,080
Module Dimensions (W x H, mm)	250 x 281.25
No. of Modules per Screen (W x H)	12 x 6 (Total 72)
Screen Dimensions (W x H x D, mm, including bezel)	3,004.6 x 1,692.1 x 36.5 (Thickest 70)
Screen Surface Area (?)	5.06
Weight of the screen	129
Physical Pixel Density (pixels/?)	409,600
Flatness of Unit Case (mm)	±0.2
Unit Case Material	Aluminum
Service Access	Front
OPTICAL SPECIFICATIONS
Min. Brightness (After Calibration)	500
Color Temperature	7300K
Visual Viewing Angle (H x V)	160° x 160°
Brightness Uniformity	98%
Color Uniformity	±0.015Cx,Cy
Contrast Ratio	3000:1
Processing Depth (bit)	16
ELECTRICAL SPECIFICATIONS
Power Consumption (W/screen, Max.)	2,000
Power Consumption (W/screen, Avg.)	800
Power Consumption (W/?, Max.)	395
Power Consumption (BTU/h/Screen, Max.)	6,824
Power Consumption (BTU/h/Screen, Avg.)	2,730
Power Consumption (BTU/h/m², Max.)	1,348
Power Supply (V)	100 to 240
Frame Rate (Hz)	50 / 60
Refresh Rate (Hz)	≥2880
OPERATION SPECIFICATIONS
LED Lifetime (Half brightness)	100,000
Operating Temperature (?)	0? to +40?
Operating Humidity	<90% RH (without condensation)
IP Rating Front	IP30
IP Rating Rear	IP20
SPEAKER
Speaker	Built-in (9W+9W)
CERTIFICATION
Certification	CE, FCC, ETL, CB
ENVIRONMENT
Environment	RoHS, REACH
CONTROLLER
Controller	Embedded
