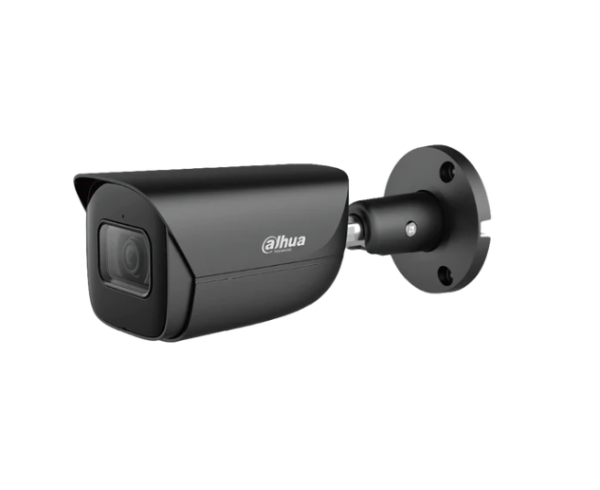

Dahua 8 MP IR Fixed-focal Bullet WizSense Network Camera Black

SKU : DH-IPC-HFW3866EP-AS-AUS-BLK
Brand : Dahua
Availablity : on order
On Order items usually have to be ordered in and may take bit longer to get them delivered from our Seven Hills, NSW warehouse
Dahua WizSense Series delivers AI-powered security with precise human and vehicle detection, advanced SMD 4.0 for fewer false alarms, and Starlight technology for clear images in low light. The 8MP cameras, intelligent detection features, and IP67-rated weatherproof design make this a smart, reliable security solution.
Ask a question about this product
$221.00

Estimated Shipping

For Bulky items and non-metro Australia a different shipping will be quoted on order receipt.

No surcharge On Credit Card, AMEX or Paypal. American express, master card, nab, Paypal, visa

Share

  • Description
  • Specifications
  • Reviews

Product Description

Manufacture: Dahua | Model: DH-IPC-HFW3866EP-AS-AUS-BLK



Launched by Dahua Technology, WizSense is a series of wide-range AI products and solutions that adopt independent AI chips and deep learning algorithms. It can recognize humans and vehicles in an image with high accuracy, enabling users to focus on real targets. WizSense focuses on humans and vehicles, benefiting everyone with intelligent functions, simple configuration, and inclusive products.

SMD 4.0: With upgraded AI capabilities, the SMD function filters out irrelevant objects in the scene. Equipped with a new deep learning algorithm, SMD 4.0 is optimized to filter out small and large animals in the scene to avoid triggering false alarms. Additionally, SMD 4.0 can detect the color information of clothing and vehicles to provide data support for quick searches after an event.

WizSense Series is engineered to provide smart, simple, and affordable security. WizSense series cameras support an independent AI chip with a deep learning algorithm to provide a more intelligent and simple security solution focused on human and vehicle detection. This helps filter out false alerts triggered by bugs, changes in light, leaves, trees, and animals.

Supports Smart Motion Detection Plus (SMD+), dramatically reducing false alarms in motion detection by only detecting humans and vehicles, greatly reducing false alerts triggered by bugs, changes in light, leaves, trees, and animals. The target is tracked and triggers real-time alerts to a smart device through the iOS/Android app.

Through advanced video algorithms, Dahua's Intelligent Video Surveillance (IVS) technology supports smart functions such as Tripwire and Intrusion Detection.

Starlight technology generates clear images in near-complete darkness. A high-performing sensor and special algorithms work together to capture images in low-light and no-light environments.



Key Features



  • 8 MP 1/2.8" CMOS image sensor, excellent low luminance performance, and high definition of images.
  • Outputs max. 8 MP (3840 × 2160) @25/30 fps.
  • H.265 codec, high compression rate, ultra-low bit rate.
  • Built-in IR LED, max. IR distance: 30 m.
  • ROI, SMART H.264+/H.265+, AI H.264/H.265, flexible coding, applicable to various bandwidth and storage environments.
  • Rotation mode, WDR, 3D NR, HLC, BLC, digital watermarking, applicable to various monitoring scenes.
  • Intelligent detection: Intrusion, tripwire (supports the classification and accurate detection of vehicles and humans).
  • Abnormality detection: Motion detection, privacy masking, scene changing, audio detection, no SD card, SD card full, SD card error, network disconnection, IP conflict, illegal access, and voltage detection.
  • Alarm: 1 in, 1 out (Only - AS supports); audio: 1 in, 1 out (Only - AS supports); max. 256 G Micro SD card, built-in Mic.
  • 12 VDC/PoE power supply facilitates installation.
  • IP67 protection.
  • SMD 4.0, AI SSA.

Technical Specifications

Image Sensor 1/2.8" CMOS
Max. Resolution 3840 (H) × 2160 (V)
ROM 128 MB
RAM 1 GB
Scanning System Progressive
Electronic Shutter Speed Auto/Manual 1/3 s–1/100,000 s
Min. Illumination 0.007 [email protected] (Color, 30 IRE)
0.0007 [email protected] (B/W, 30 IRE)
0 lux (Illuminator on)
S/N Ratio > 56 dB
Illumination Distance 30 m (98.4 ft)
Illuminator On/Off Control Auto/Manual
Illuminator Number 1 (IR LED)
Pan/Tilt/Rotation Range Pan: 0°–360°; Tilt: 0°–90°; Rotation: 0°–360°
Lens Type Fixed-focal
Lens Mount M12
Focal Length 2.8 mm; 3.6 mm
Max. Aperture F1.4
Field of View 2.8 mm: Horizontal: 107°, Vertical: 56°, Diagonal: 127°
3.6 mm: Horizontal: 84°, Vertical: 47°, Diagonal: 97°
Iris Control Fixed
Close Focus Distance 2.8 mm: 1.5 m (4.9 ft)
3.6 mm: 2 m (6.6 ft)
IVS (Perimeter Protection) Tripwire, intrusion (supports classification and accurate detection of vehicles and humans)
AI SSA Yes
Quick Pick With AI NVR, quickly pick up human/vehicle targets of interest from SMD events
Smart Search Works with Smart NVR to refine intelligent search, event extraction, and merging event videos
Video Compression H.265; H.264; H.264H; H.264B; MJPEG (only supported by the sub stream)
Day/Night Auto (ICR)/Color/B/W
BLC Yes
HLC Yes
WDR 120 dB
Scene Self-adaptation (SSA) Yes
White Balance Auto; Natural; Street Lamp; Outdoor; Manual; Regional Custom
Gain Control Auto
Noise Reduction 3D NR
Motion Detection OFF/ON (4 areas, rectangular)
Region of Interest (RoI) Yes (4 areas)
Defog Yes
AFSA Yes
Image Rotation 0°/90°/180°/270° (Supports 90°/270° with 2688×1520 resolution and lower)
Mirror Yes
Privacy Masking 4 areas
Built-in MIC Yes
Network Port RJ-45 (10/100 Base-T)
SDK and API Yes
Certifications CE-LVD, CE-EMC, FCC, UL/CUL
Power Supply 12 VDC/PoE (802.3af)
Power Consumption Basic: 3.8 W (12 VDC); 4.6 W (PoE)
Max: 5.9 W (12 VDC); 7.2 W (PoE)
Operating Temperature –40 °C to +60 °C (–40 °F to 140 °F) / Less than 95% RH
Storage Temperature –40 °C to +60 °C (–40 °F to 140 °F)
Protection IP67
Casing Metal
Product Dimensions 192.7 mm × 70.5 mm × 66.4 mm (7.59" × 2.77" × 2.61") (L × W × H)
Net Weight 590 g (1.30 lb)
Gross Weight 780 g (1.72 lb)
