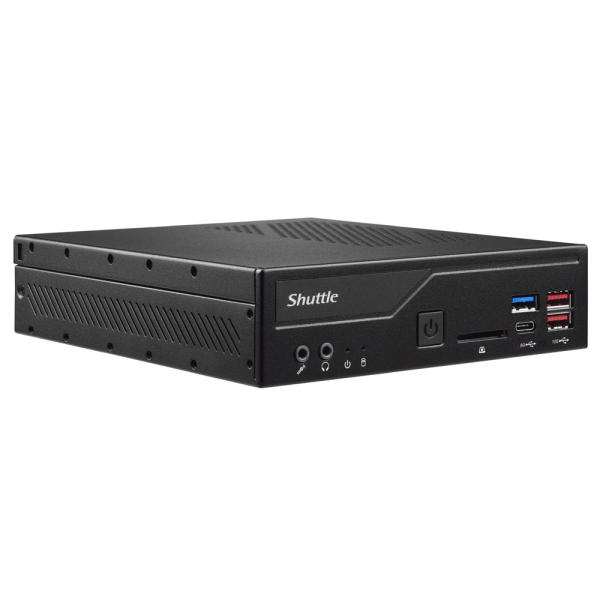

Shuttle DH670 Slim Barebone Industrial PC

SKU : DH670
Brand : Shuttle
Availablity : on order
On Order items usually have to be ordered in and may take bit longer to get them delivered from our Seven Hills, NSW warehouse
Processor: LGA1700 socket Core i3/i5/i7/i9, Chipset: Intel H670 Express, Audio: Realtek ALC662/897/888S High Definition Audio, Storage Interface: SATA 6.0Gb/s, Drive Bays: 2.5" HDD / SSD bay, Warranty: 03 Years, DH670.
Ask a question about this product

Estimated Shipping

For Bulky items and non-metro Australia a different shipping will be quoted on order receipt.

No surcharge On Credit Card, AMEX or Paypal. American express, master card, nab, Paypal, visa


  • Description
  • Specifications
  • Reviews

Product Description

Manufacture # Shuttle | Model # DH670


Shuttle XPC Slim series DH670 models support Intel 13th/12th-Gen hybrid architecture, offering high-performance and high-efficiency cores for a 65W base power processor with up to 16 cores and 24 threads. Integrated with Intel UHD graphics, they deliver stunning 4K/60P UHD resolution clarity, enhancing AI and computer vision applications. These models are suitable for diverse applications, including digital signage and kiosks.



  • With two HDMI 2.0b and two DisplayPort outputs built-in, the DH670 support four independent displays, providing productivity benefits and dynamic visualization for multi-tasking and digital signage applications.
  • With a native M.2 2280/2260/2242 Type M slot and a M.2 2230 Type E slot, the DH670 offer considerably faster storage performance and expansion capacity for M.2 SSD and Wi-Fi modules.
  • The DH670 provide four USB 3.2 Gen2, four USB 3.2 Gen1 (including one Type-C), two RS232, and a SD Ver. 3.01 card reader* for flexible connectivity options.
  • The DH670 feature Shuttle’s exclusive heat-pipe cooling system with smart fan design. The clever ventilation design allows for constant air circulation between the inside and outside of the machine resulting in high stability and low noise for long-term operation.



  • Processor: LGA1700 socket Core i3/i5/i7/i9
  • Chipset: Intel H670 Express
  • Audio: Realtek ALC662/897/888S High Definition Audio
  • Storage Interface: SATA 6.0Gb/s
  • Drive Bays: 2.5" HDD / SSD bay


Manufacturer Warranty: 03 Years Limited Warranty

Technical Specifications

Form Factor 1.3L chassis
Processor Support Intel 12/13th LGA1700 socket Core i3/i5/i7/i9, Pentium, Celeron 65W processor
Chipset Intel H670 Express chipset
Memory 2 x DDR4 SODIMM slots,32GB per DIMM (Max 64GB) DDR4 up to 3200 MHz
Video Output HDMI 2.0 x 2+ DisplayPort x 2, Quad video outputs
4K playback (Dual channel memory recommended)
Integrated in CPU
Audio Realtek ALC662/897/888S High Definition Audio
Ethernet (2)Intel Gigabit LAN (DH670)
Supports 10/100/1000 Mb/Sec.
Support wake ON LAN (WOL) feature
Storage Interface SATA 6.0Gb/s interface
Onboard Connectors (1) 4pin fan connector
(1) VGA(For PVG01 use)
(1) 1x4 pin USB header(For WWN03 use)
(1) SATA connector w/power
(1) Front audio header
(1) Auto power on header
(1) RS232 voltage switch

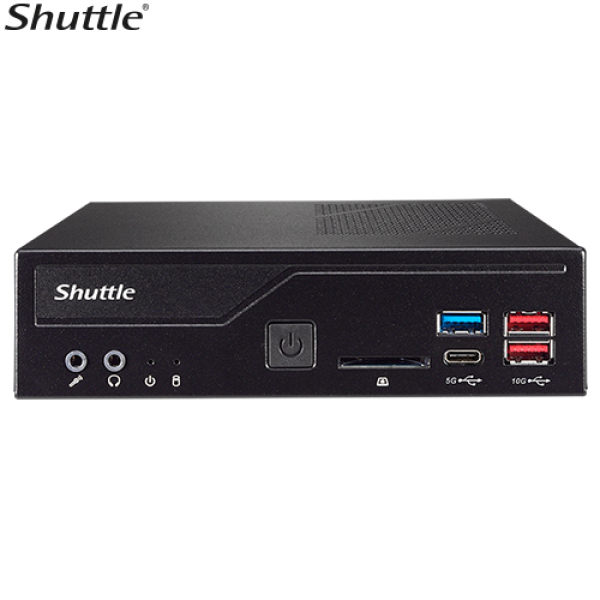

Front Panel (2) USB 3.2 Gen1 ports
(Include Type C x1)
(2) USB 3.2 Gen2 ports
(1) Microphone-In
(1) Line-Out
(1) Power-On button
(1) Power LED
(1) SD card reader

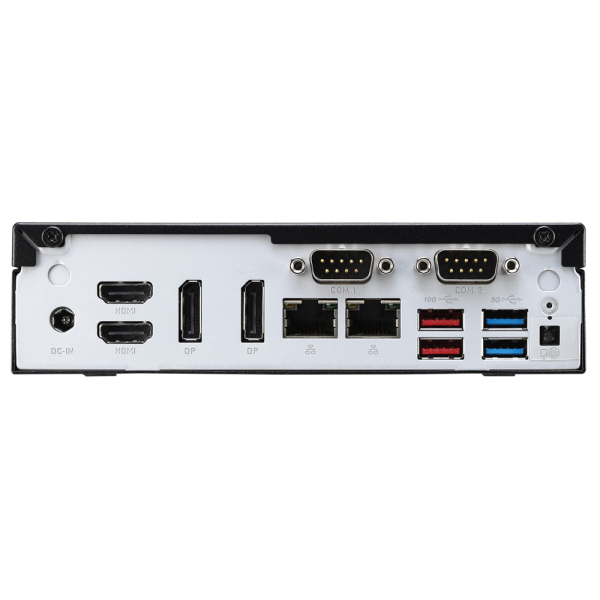

Back Panel (2) RJ45 LAN ports
(2) HDMI port
(2) Display port
(2) USB 3.2 Gen1 ports
(2) USB 3.2 Gen2 ports
(1) RS232
(1) RS232/RS422/RS485
(1) External 4pin header
(1) DC-in
(2) Wireless Antenna fixture
(1) Kensington lock
Drive Bays (1) 2.5" HDD / SSD bay
Dimensions 190(L) x 165(W) x 43(H) mm
Power 120W Power Adapter
Input:100- 240V AC
19V 6.32A
Accessories XPC Multilanguage Quick User Guide XPC DVD Driver VESA mount VESA Screw pack Power cord
Thermal Grease
HDD Screw pack
120W adapter
Expansion Slot (1) M.2 2280 Type M key socket
(1) M.2 2230 Type E key socket
Os Support Windows 10/11 64 bit O.S Linux
Remark RS232 ports support 0/5/12V output. Voltage setting please refer to Quick Guide.
Operating Temperature 0°C~50°C
