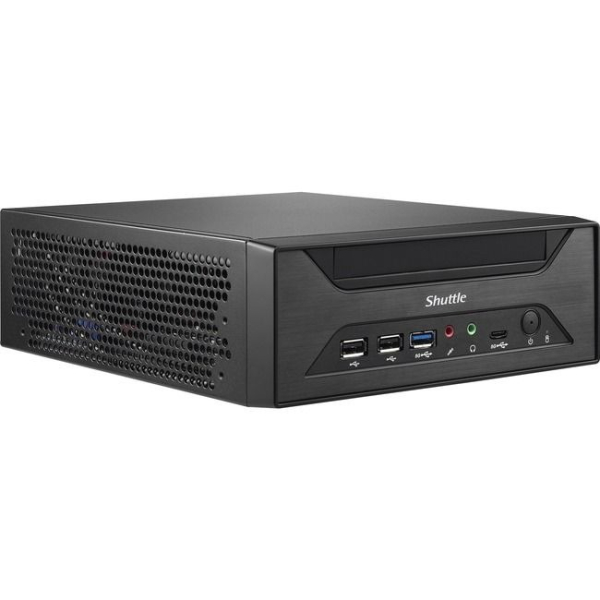

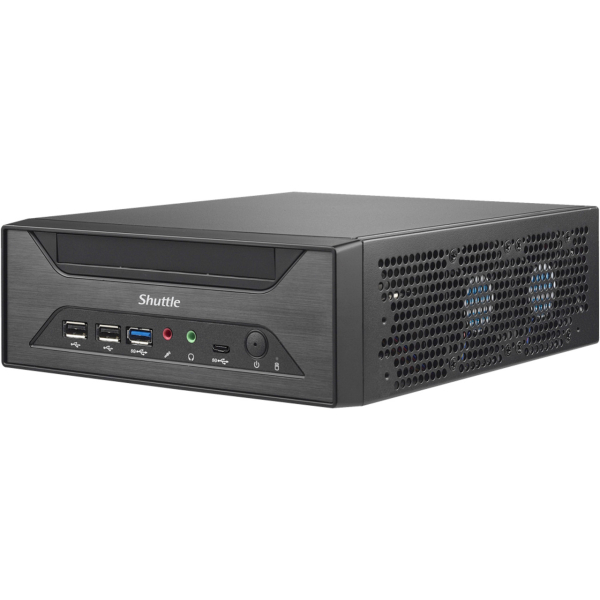

Shuttle XH610 Barebone System LGA 1700 65 Processor Support Mini PC

SKU : XH610
Brand : Shuttle
Availablity : on order
On Order items usually have to be ordered in and may take bit longer to get them delivered from our Seven Hills, NSW warehouse
Form Factor: Mini-ITX MB, Processor: Core i3/i5/i7/i9, Chipset: Intel H610 Express, Memory: 32GB DIMM SODIMM, Warranty: 01 Year, SYS-XH610.
Ask a question about this product
$697.00

Estimated Shipping

For Bulky items and non-metro Australia a different shipping will be quoted on order receipt.

No surcharge On Credit Card, AMEX or Paypal. American express, master card, nab, Paypal, visa

Share

  • Description
  • Specifications
  • Reviews

Product Description

Manufacture # Shuttle | Model # SYS-XH610



Up to three displays can be used simultaneously via one HDMI 2.0b, one DisplayPort, and one VGA. Feature an extra storage expansion that supports three 2.5” HDD/SSD storage drives or one 3.5” HDD (with an optional PHD4). Besides, the series includes 4 x USB 3.2 Gen1 (Include one Type-C), 4 x USB 2.0, Intel 1G + Intel 2.5G LAN, 2 x M.2, and 2 x RS232 to perform its rich I/O capabilities. In addition, another optional accessory PCM31 can be chosen to support a max of five RS232 ports to connect peripheral devices and deliver a robust performance that can drive highly interactive kiosks, vending machines, digital signage, and surveillance applications.



Features:

  • The XH610 series supports installing two 2.5” HDD/ SSD and a slim ODD or three 2.5” HDD/SSD storage drives. Meanwhile, the models also support a 3.5” HDD for increased storage with an optional accessory PHD4.
  • With one HDMI 2.0b, one DisplayPort, and one VGA output built-in, the XH610 series supports three independent displays, providing productivity benefits and dynamic visualization for multitasking and digital signage applications.
  • With a native M.2 2280/2260/2242 Type M slot and an M.2 2230 Type E slot, the XH610 series offers considerably faster storage performance and expansion capacity for M.2 SSD and Wi-Fi modules.
  • XH610 series provides one RS232 and one RS232/422/485 that support 0V/5V/12V. If equipped with the optional accessory PCM31, three additional RS232 can be added to house various peripherals such as thermal printers, label printers, and barcode scanners.



Overview:

  • Form Factor: Mini-ITX MB
  • Processor: Core i3/i5/i7/i9
  • Chipset: Intel H610 Express
  • Memory: 32GB DIMM SODIMM



Manufacturer Warranty: 01 Year Limited Warranty

Technical Specifications

Form Factor Mini-ITX MB
3.5 L chassis
Processor Support Intel 12/13th Generation Core i3/i5/i7/i9, Pentium, Celeron LGA1700 CPU max. TDP 65W
BIOS v2.03 and updated version support Raptor Lake (13th) CPU
Chipset Intel H610 Express chipset
Memory 2 x DDR4 SODIMM slots,32GB per DIMM (Max 64GB)
DDR4 3200 MHz
Video Output HDMI + Display + D-Sub (VGA) port triple display
Audio Realtek ALC662/ALC897/ALC888S 5.1 channel High Definition Audio
Ethernet (1)Intel GbE Lan / (1)Intel 2.5 GbE Lan
10Mb/s,100Mb/s,1Gb/s operation
Support Wake-On-LAN function
Storage Interface SATA 6.0Gb/s interface
Onboard Connectors (3) SATA connectors
(1) 1x4 pin USB 2.0 header
(2) 4pin fan connectors
(1) SATA power connector(5V)
(1) SATA power connector(12V)
(1) Auto power on header
(1) RS232 voltage switch
(4) RS232 connectors
(1) Battery connector

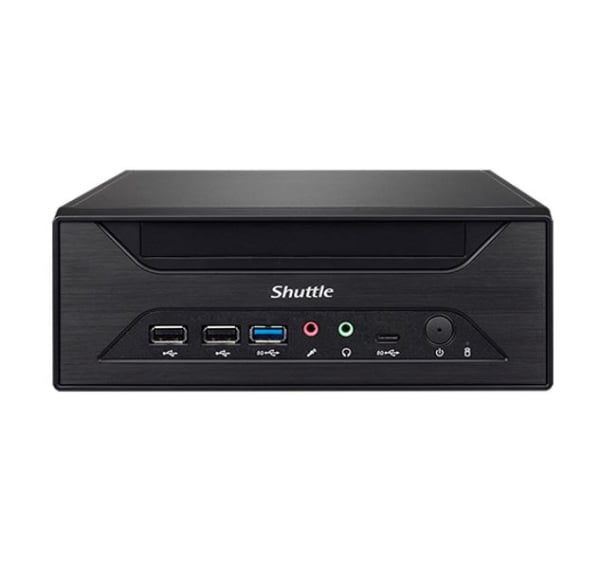

Front Panel (2) USB 2.0 ports
(2) USB 3.2 Gen1 ports (Include Type C x 1)
(1) Microphone-In
(1) Earphone-Out
(1) Power-On button
(1) Power LED
(1) HDD LED

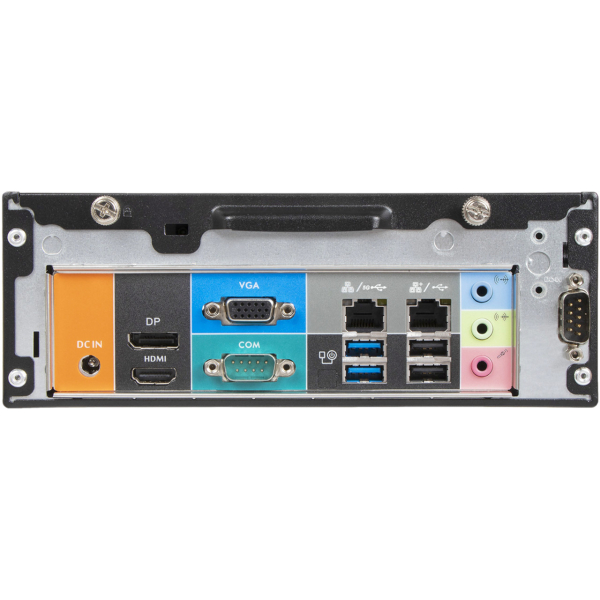

Back Panel (2) RJ45 Gigabit LAN port w/LED
(1) Display port
(1) HDMI
(1) D-Sub (VGA) port
(2) USB 2.0 ports
(2) USB 3.2 Gen1 ports
(1) RS232
(1) RS232/RS422/RS485
(1) Line in port
(1) Line out port
(1) MIC in port
(1) Clear CMOS button
(1) DC in
(1) Kensington lock
(2) Wireless Antenna fixture
Drive Bays (1) 2.5" HDD / SSD bay
(1) Slim ODD bay. User can install either 1 Slim ODD or (1) 2.5" HDD/SSD
Dimensions XH610 : 238(L) x 200(W) x 72(H) mm
Power 120W Power Adapter
Input:100- 240V AC
19V 6.32A
Accessories XPC Multilanguage Quick User Guide
XPC DVD Driver
1* Power cord
1* SATA cable (pre-install for HDD)
1* SATA cable (pre-install for ODD)
1* 4 pin to SATA power cable Screws
Expansion Slot (1) M.2 2280 Type M key socket
(1) M.2 2230 Type E Key socket
Os Support Windows 10/11 64 bit O.S Linux
Remark 1. PHD4 3.5" HDD rack accessory can support
Operating Temperature 0°C~50°C
