Manufacture: Shuttle | Model: DH32U

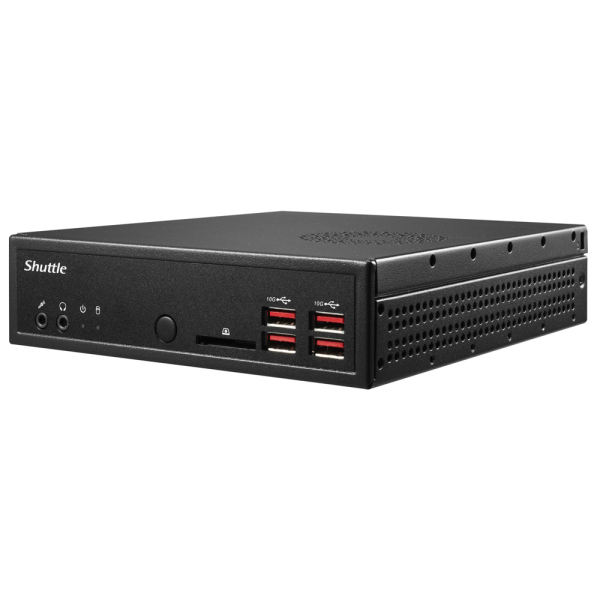

The Shuttle 1.3L Chassis is a compact and high-performance mini PC designed for versatile computing needs. Powered by Intel Tiger Lake-U processors, including the Pentium 7505 and optional Core i3, i5, and i7 models, it ensures efficient performance. It supports up to 64GB of dual-channel DDR4 memory for seamless multitasking. With four HDMI 2.0b ports, this system delivers quad independent video output and 4K/2K playback. Dual Intel i211 Gigabit LAN ensures fast and stable networking, while multiple USB 3.2 ports provide excellent connectivity. The system includes an M.2 expansion slot for additional storage and an RS232 port for industrial applications. With a 90W power adapter and support for Windows 10 and Linux, this mini PC is ideal for both business and home use.
| Form Factor | Shuttle 1.3L Chassis |
|---|---|
| Processor | Intel Tiger Lake-U Pentium 7505 15W CPU i3 1115G4, i5 1135G7, i7 1165G7 (optional) |
| Memory | 2 x 260 pin DDR4 SODIMM slots, 32GB per DIMM (Max 64GB) Dual Channel DDR4 3200 MHz |
| Video Output | HDMI 2.0b x 4 (Quad independent video output) 4K/2K playback (Dual channel memory recommended) Support EDID Emulation Function (DH32UE series only) |
| Audio | Realtek ALC662/897/888S 2-channel High Definition Audio |
| Ethernet | Intel i211 x2 100Mb/s and 1Gb/s operation Support Wake-On-LAN function |
| Storage Interface | SATA 6.0Gb/s interface |
| Onboard Connectors | (1) SATA power connector (2) 4-pin fan connectors (1) Auto power on header (1) VGA (1) RS232 (1) RS232/422/485 (1) External 4-pin header (Power/Clear/CMOS/5V/GND) |

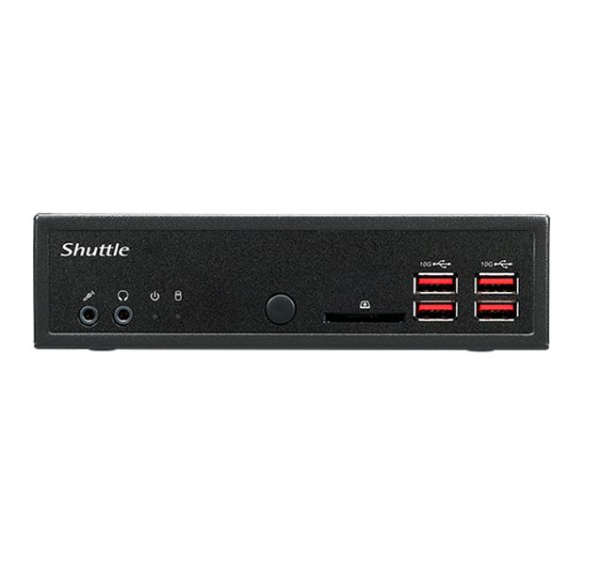

| Front Panel | (4) USB 3.2 Gen2 ports (1) Microphone-In (1) Earphone-Out (1) Power-On button (1) Power LED (1) HDD LED (1) SD Card reader |

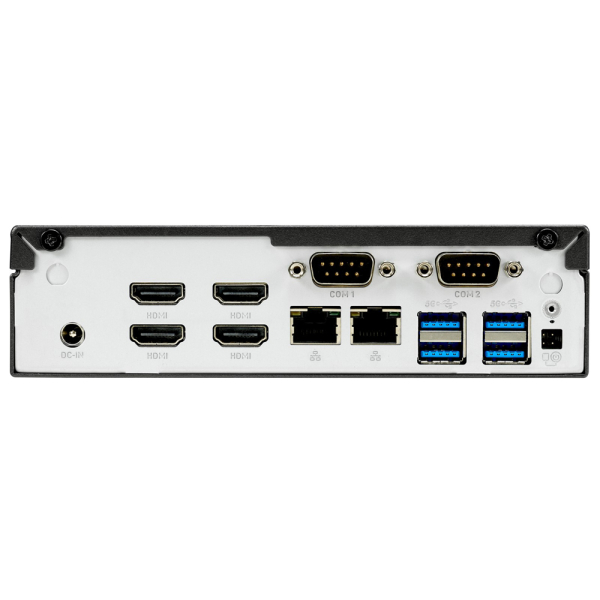

| Back Panel | (2) RJ45 Gigabit LAN ports (4) HDMI ports (4) USB 3.2 Gen1 ports (1) RS232 (1) RS232/422/485 (1) External power on/Clear CMOS header (1) Kensington lock (2) Wireless Antenna fixtures (1) DC-in |
| Drive Bays | (1) 2.5" HDD / SSD bay |
| Dimensions | 190(L) x 165(W) x 43(H) mm |
| Power | 90W Power Adapter Input: 100-240V AC Output: 19V 4.7A DC |
| Accessories | XPC Multilanguage Quick User Guide XPC DVD Driver VESA mount Power cord Screws |
| Expansion Slot | (1) M.2 2280 Type M key socket (1) M.2 2230 Type E key socket |
| OS Support | Windows 10 64-bit OS, Linux |
| Remark | *RS232 ports support a total of 500mA, 0/5/12V output. Voltage setting reference in Quick Guide. |
| Graphics | Intel Xe DG1 GPU Execution Units (EUs): Celeron/Pentium/i3: 48 EUs i5: 80 EUs i7: 96 EUs |
| Operating Temperature | 0? ~ 50? |
