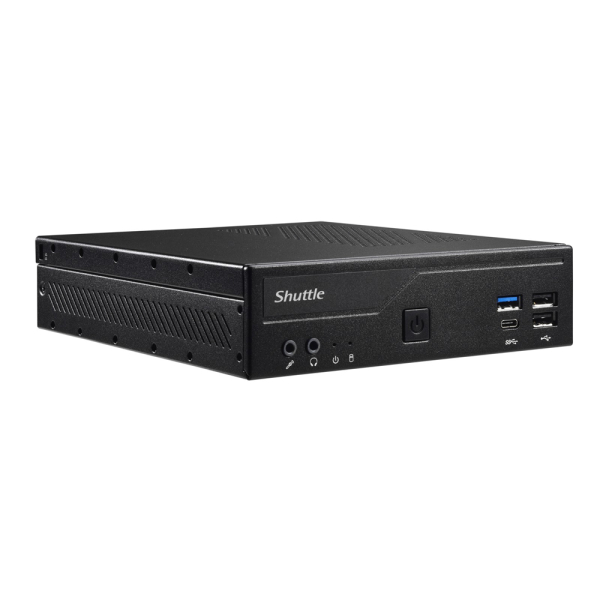

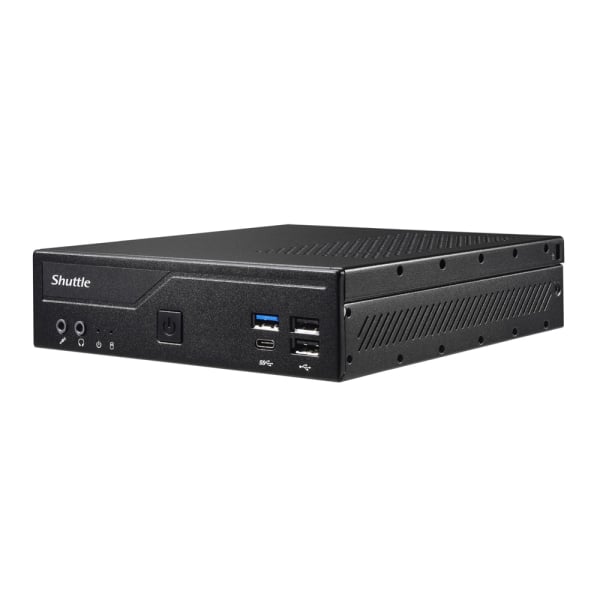

Shuttle DH610 Intel H610 Chip Barebone Slim PC

SKU : DH610
Brand : Shuttle
Availablity : Online Only, In Stock
Ships within 1 and 3 days from our Seven Hills, NSW warehouse or Pickup in 3 to 4 days
Processor: LGA1700 socket Core i3/i5/i7/i9, Chipset: Intel H610 Express, Audio: Realtek High Definition Audio, Storage Interface: SATA 6.0Gb/s, Drive Bays: 2.5" HDD / SSD bay, Warranty: 03 Years, DH610.
Ask a question about this product
$601.00

Estimated Shipping

For Bulky items and non-metro Australia a different shipping will be quoted on order receipt.

No surcharge On Credit Card, AMEX or Paypal. American express, master card, nab, Paypal, visa

Share

  • Description
  • Specifications
  • Reviews

Product Description

Manufacture # Shuttle | Model # DH610



Shuttle XPC Slim series DH610 supports Intel 13th/12th Gen LGA1700 processors. With Intel new performance hybrid architecture and UHD graphics 700 series integrated, the model computes performance along with the potential for powering AI deployment. Support up to three displays via one HDMI 2.0b and two DisplayPort for display productivity and flexibility.



Features:

  • With one HDMI 2.0b and two DisplayPort outputs built-in, DH610 supports three independent displays, providing productivity benefits and dynamic visualization for multitasking and digital signage applications.
  • With a native M.2 2280/2260/2242 Type M slot and an M.2 2230 Type E slot, DH610 offers considerably faster storage performance and expansion capacity for M.2 SSD and Wi-Fi modules.
  • DH610 provides four USB 3.2 Gen1 (Including one Type-C), four USB 2.0, and two RS232 for flexible connectivity options. In addition, Intel 2.5 GbE and Intel 1GbE Lan are equipped to support Wake on LAN functions to provide high-speed data transfer capability.
  • DH610 features Shuttle’s exclusive heat-pipe cooling system with an intelligent fan design. The clever ventilation design allows constant air circulation between the inside and outside of the machine resulting in high stability and low noise for 24/7 long-term operation.



Overview:

  • Processor: LGA1700 socket Core i3/i5/i7/i9
  • Chipset: Intel H610 Express
  • Audio: Realtek High Definition Audio
  • Storage Interface: SATA 6.0Gb/s
  • Drive Bays: 2.5" HDD / SSD bay



Manufacturer Warranty: 03 Years Limited Warranty

Technical Specifications

Form Factor 1.3L chassis
Processor Support Intel 12/13th LGA1700 socket Core i3/i5/i7/i9, Pentium, Celeron 65W processor
Chipset Intel H610 Express chipset
Memory 2 x DDR4 SODIMM slots,32GB per DIMM (Max 64GB) DDR4 up to 3200 MHz
Video Output HDMI 2.0 x 1+ DisplayPort x 2, Triple video outputs
4K playback (Dual channel memory recommended)
Integrated in CPU
Audio Realtek High Definition Audio
Ethernet (1)Intel GbE Lan / (1)2.5 GbE Lan
10Mb/s,100Mb/s,1Gb/s operation
Support Wake-On-LAN function
Storage Interface SATA 6.0Gb/s interface
Onboard Connectors (1) 4pin fan connector
(1) VGA(For PVG01 use)
(1) 1x4 pin USB header(For WWN03 use)
(1) SATA connector w/power
(1) Front audio header
(1) Auto power on header
(1) RS232 voltage switch

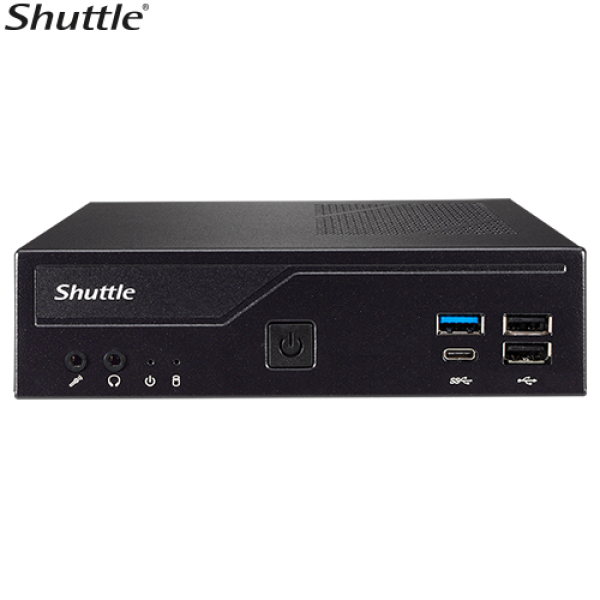

Front Panel (2) USB 3.2 Gen1 ports
(Include Type C x1)
(2) USB 2.0 ports
(1) Microphone-In
(1) Line-Out
(1) Power-On button
(1) Power LED
(1) HDD LED

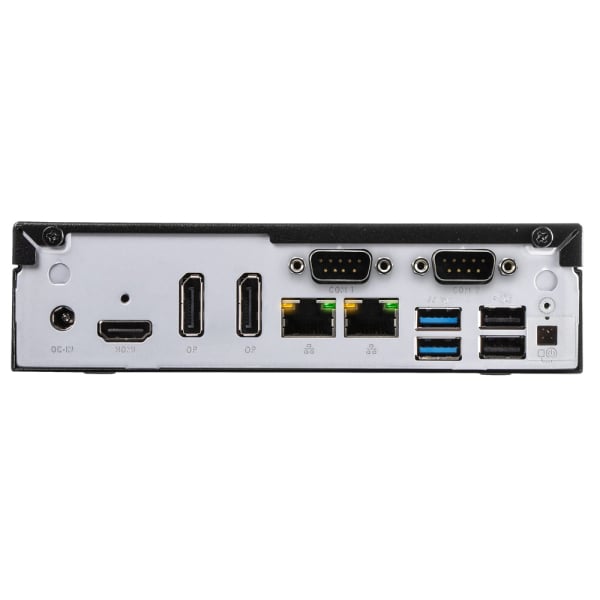

Back Panel (2) RJ45 Gigabit LAN port w/LED
(1) HDMI port
(2) Display port
(2) USB 3.2 Gen1 ports
(2) USB 2.0 ports
(1) RS232
(1) RS232/RS422/RS485
(1) External 4pin header
(1) DC-in
(2) Wireless Antenna fixture
(1) Kensington lock
Drive Bays (1) 2.5" HDD / SSD bay
Dimensions 190(L) x 165(W) x 43(H) mm
Power 120W Power Adapter
Input:100- 240V AC
19V 6.32A
DH610 support 12V DC input.
Accessories XPC Multilanguage Quick User Guide
XPC DVD Driver
VESA mount
VESA Screw pack
Power cord
Thermal Grease
HDD Screw pack
120W adapter
Expansion Slot (1) M.2 2280 Type M key socket
(1) M.2 2230 Type E key socket
Os Support Windows 10/11 64 bit O.S Linux
Remark RS232/422/485 ports support 0/5/12V output. Voltage setting please refer to Quick Guide.
Operating Temperature 0°C~50°C
