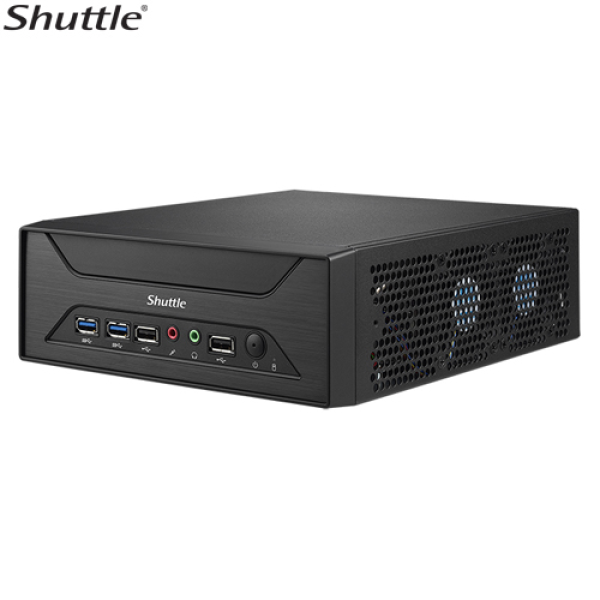

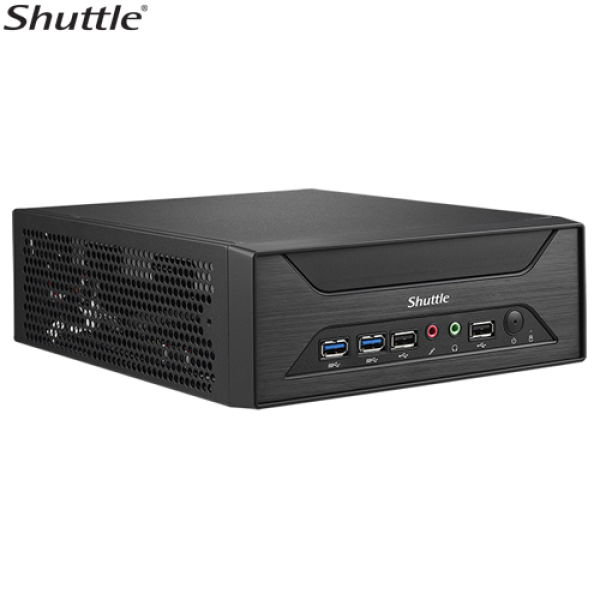

Shuttle XH270 XPC Slim Mini-ITX Barebone PC

SKU : XH270
Brand : Shuttle
Availablity : Online Only, In Stock
Ships within 1 and 3 days from our Seven Hills, NSW warehouse or Pickup in 3 to 4 days
Processor: Support Skylake-S/Kabylake-S 65W CPU, Chipset: Intel H270 Express Chipset, Audio: Realtek ALC662 5.1 channel High Definition audio, Storage Interface: SATA 6.0Gb/s interface, Drive Bays: Support 4* 2.5” HDD/SSD, Warranty: 03 Years, XH270.
Ask a question about this product
$457.00

Estimated Shipping

For Bulky items and non-metro Australia a different shipping will be quoted on order receipt.

No surcharge On Credit Card, AMEX or Paypal. American express, master card, nab, Paypal, visa

Share

  • Description
  • Specifications
  • Reviews

Product Description

Manufacture # Shuttle | Model # XH270



Shuttle’s newly XH270 has presented a new look of supporting up to four 2.5” Hard Drives in compact 3-liter size. The XH270 is equipped with Intel® H270 Express chipset and based on the new 14nm 7th/6th generation Intel® Core™ and Pentium® processors in the LGA1151 package. With Intel® Built-in graphics engine, it is capable of driving three 1080p HD display or dual 4K ultra HD display for high-end graphics capability via HDMI, DisplayPort and VGA interface.The XH270 has plenty of I/O ports and fast storage interface includes 4x USB 2.0, 4x USB 3.0, 1x RS232, 2x Intel Gigabit LAN, 4x SATA 6Gbps and 2x M.2 interfaces. Ready to Intel® Optane™ Memory technology, the XH270 allow users run the system as fast as SSD on HDD maintain its large capacity demand with affordable cost.



Features:

  • Equipped with the new LGA 1151 socket, the all-new XH270 supports both Intel® 6th/ 7th Generation (Skylake/Kabylake) Core i3/i5/i7, Pentium, and Celeron 65W processors. Built-in DirectX 12 compatibility with the Intel® HD Graphics significantly increases CPU or GPU.
  • With integrated Intel H270 Chipset, the XH270 supports dual channel DDR4 2400 with up to 64GB memory (16GBx2). It also supports Intel Gigabit LAN, SATA 6Gbps, and USB3.0 interfaces for superb data transfer speed.
  • With a 7th Gen Intel Core processor, the XH270 supports the latest Intel® Optane technology which makes your overall system performance up to 28% faster to deliver amazing speed.
  • The XH270 supports 4K high resolution (3840x2160) content playback. Now with four times the resolution of Full HD, viewers can enjoy the super detailed and crystal clear imaging of 4K.
  • The XH270 allows up to four 2.5” HDDs installation in 3-liter slim size. With RAID supports, user can easily create a large capacity file server to correspond to different application needs.
  • Display imaging on up to three screens via HDMI, DisplayPort and VGA outputs. User can smooth convey dynamic high-resolution information and targeted promotions.



Overview:

  • Processor: Support Skylake-S/Kabylake-S 65W CPU
  • Chipset: Intel H270 Express Chipset
  • Audio: Realtek ALC662 5.1 channel High Definition audio
  • Storage Interface: SATA 6.0Gb/s interface
  • Drive Bays: Support 4* 2.5” HDD/SSD



Manufacturer Warranty: 03 Years Limited Warranty

Technical Specifications

Form Factor Mini-ITX MB
3L chassis
Processor Support Skylake-S/Kabylake-S 65W CPU
Chipset Intel H270 Express Chipset
Memory (2)DDR4 SO-DIMM 2133/2400MHz support, dual channel up to 64GB (32GB*2)
Video Output (1)HDMI+(1)DisplayPort+(1)VGA support triple independent display 4K playback
Integrated in CPU
Audio Realtek ALC662 5.1 channel High Definition audio
Ethernet Intel I211*2 10Mb/100Mb/1Gb/s operation
Support Wake-on-LAN function
Support Teaming feature
Storage Interface SATA 6.0Gb/s interface
Onboard Connectors (1) 4pin fan connector
(4) SATA connector w/power
(2) 2x5 pin USB2.0 header
(1) Front audio header
(1) Front USB2.0 header
(1) Front USB3.0 header
(1) Auto power on
(1) RS232 header

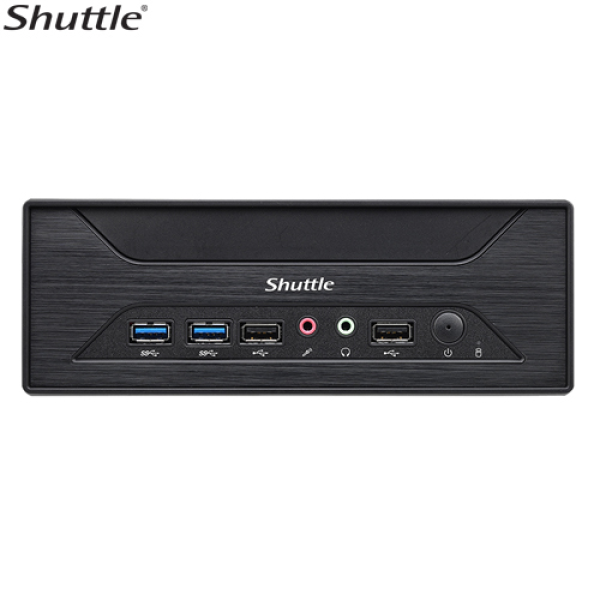

Front Panel (1) Power Button
(1) Power Led
(1) HDD Led
(2) USB2.0 port
(2) USB3.0 port
(1)MIC-In
(1)Earphone-Out

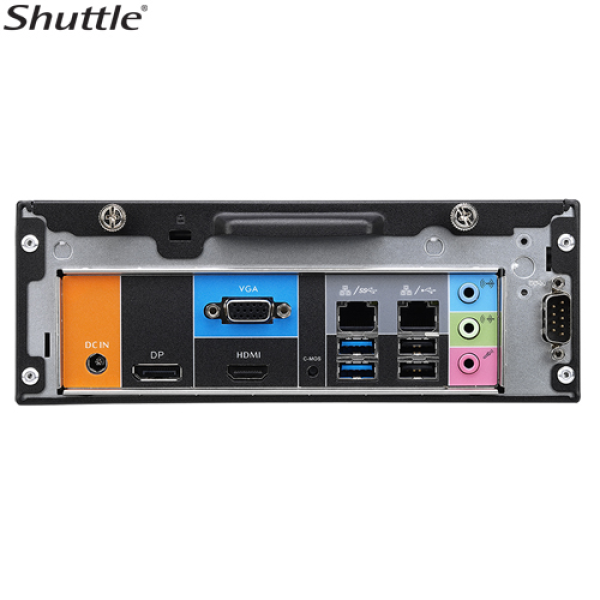

Back Panel (2) RJ45 Gigabit LAN port
(1) DisplayPort
(1) HDMI
(1) VGA
(2) USB2.0 port
(2) USB3.0 port
(1) RS232
(1) Line-in port
(1) Line out port
(1) MIC-in port
(1) Clear CMOS button
(1) DC in
(1)Kensington lock
(2)Wireless Antenna fixture(optional)
Drive Bays Support 4* 2.5” HDD/SSD
Dimensions 240(L) x 200(W) x 72(H) mm
Power 120W Power Adapter
Input:100- 240V AC
Output: 19V 6.32A DC
Accessories XPC Multilanguage Quick User Guide
XPC DVD Driver
Thermal Grease
120W adapter
2.5 HDD rack*4
Power cord
HDD Screw pack
Expansion Slot (1) M.2 2280 Type M (PCIe x4,SATA 6GB/s)
(1) M.2 2230 Type A,E (PCIe x1,USB2.0)
Os Support Windows 7(SKL-S only)
Windows 10
Linux
