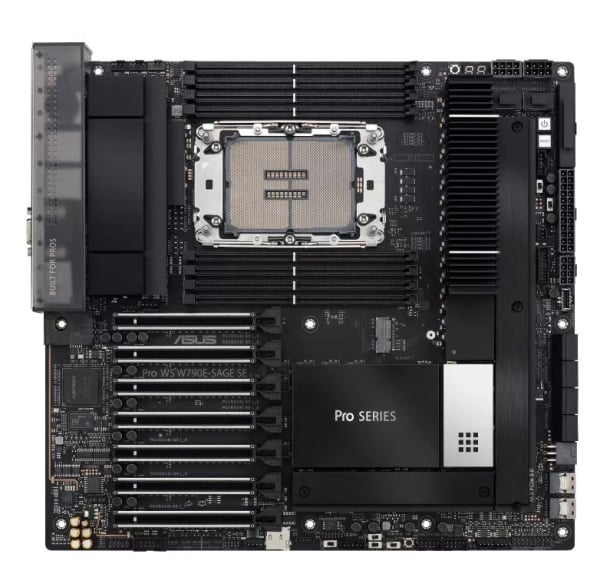

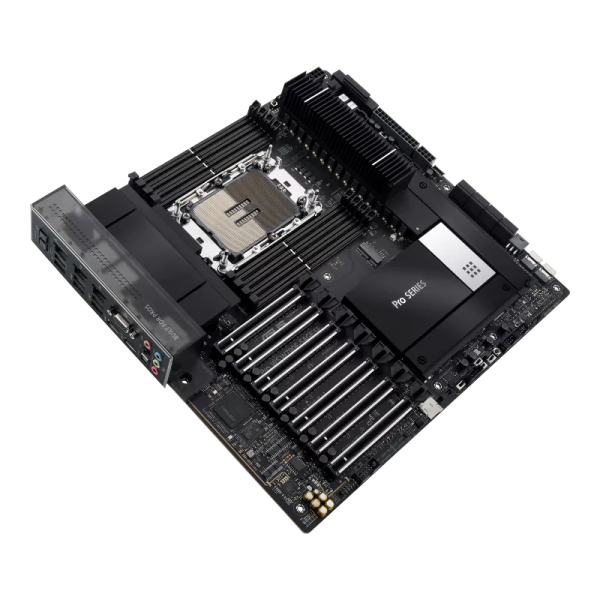

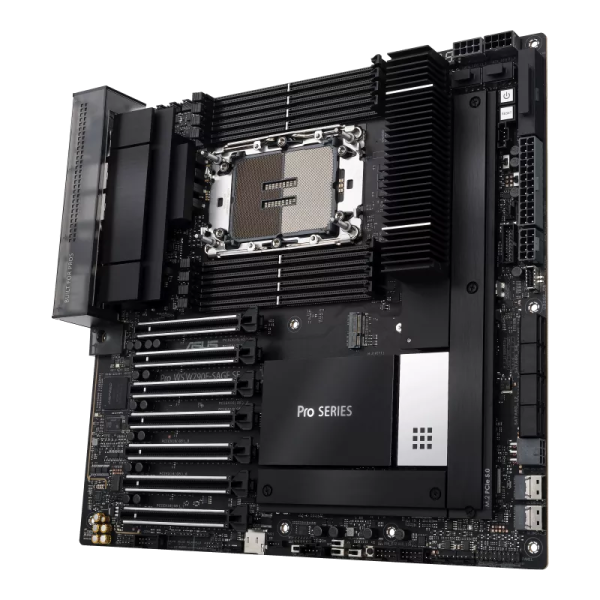

| CPU |
Intel Socket LGA4677 for Xeon W-3400 and W-2400 Series Processors
Supports Intel Turbo Boost Max Technology 3.0
Refer to www.asus.com for CPU support list. |
| Chipset |
Intel W790 Chipset |
| Memory |
8 x DIMM slots, Max. 2048GB, DDR5
6800(OC)/6600(OC)/6400(OC)/6200(OC)/6000(OC)/5800(OC)/5600(OC)/5400(OC)/5200(OC)/5000(OC)/4800 ECC Registered Memory
8-Channel Memory Architecture
Supports Intel Extreme Memory Profile (XMP)
Supported memory types, data rate (speed), and number of DRAM modules vary depending on the CPU and memory configuration, for more information please refer to CPU/Memory Support list under the Support tab of product information site or visit https://www.asus.com/support/ |
| Graphics |
1 x VGA port from AST2600
Expansion Slots Intel Xeon W-3400 Series Processors
7 x PCIe 5.0 slot(s) (Seven at x16/x16/x16/x16/x16/x8/x16)
Intel Xeon W-2400 Series Processors
4 x PCIe 5.0 slot(s) (Four at x16/x16/x16/x16)
Please check the PCIe bifurcation table on the support site (https://www.asus.com/support/FAQ/1037507/).
Please refer to the block diagrams in the Appendix for more details.
To ensure compatibility of the device installed, please refer to https://www.asus.com/support/ for the list of supported peripherals. |
| Storage |
Total supports 3 x M.2 slots, 2 x SlimSAS slots and 8 x SATA 6Gb/s ports
Intel Xeon W-3400 Series Processors
M.2_1 slot (Key M), type 2242/2260/2280/22110 (supports PCIe 5.0 x4 mode)
M.2_2 slot (Key M), type 2242/2260/2280/22110 (supports PCIe 5.0 x4 mode)
Intel W790 Chipet
M.2_3 slot (Key M), type 2242/2260/2280/22110 (supports PCIe 4.0 x4 mode)
SlimSAS_1 port supports PCIe 4.0 x4 mode NVMe device
SlimSAS_2 port supports PCIe 4.0 x4 mode NVMe device
8 x SATA 6Gb/s ports
Supports Intel Virtual RAID on CPU (Intel VROC) and Intel Volume Management Device (IntelVMD)
Intel VROC Technology supports PCIe RAID 0/1/5/10, SATA RAID 0/1/5/10. VROC_HW_Key is purchased separately.
M.2_1 and M.2_2 slots will be disabled once an Intel Xeon W-2400 Series Processor is installed. |
| Ethernet |
1 x Intel dual 10Gb Ethernet
1 x Realtek 1Gb Ethernet
ASUS LANGuard |
| USB |
Rear USB (Total 8 ports)
1 x USB 3.2 Gen 2x2 port(s) (1 x USB Type-C)
5 x USB 3.2 Gen 2 port(s) (4 x Type-A + 1 x USB Type-C)
2 x USB 2.0 port(s) (2 x Type-A)
Front USB (Total 7 ports)
1 x USB 3.2 Gen 2 connector (supports USB Type-C )
1 x USB 3.2 Gen 1 header(s) support(s) 2 additional USB 3.2 Gen 1 ports
2 x USB 2.0 header(s) support(s) 4 additional USB 2.0 ports |
| Audio |
Realtek S1220A 7.1 Surround Sound High Definition Audio CODEC
Impedance sense for front and rear headphone outputs
Internal audio Amplifier to enhance the highest quality sound for headphone and speakers
Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking
High quality 120 dB SNR stereo playback output and 113 dB SNR recording input (Line-in)
Supports up to 32-Bit/192 kHz playback |
| Audio Features |
Power pre-regulator reduces power input noise to ensure consistent performance
Rear optical S/PDIF out port
Premium audio capacitors
Dedicated audio PCB layers
Unique de-pop circuit
Due to limitations in HDA bandwidth, 32-Bit/192 kHz is not supported for 7.1
Surround Sound audio. |

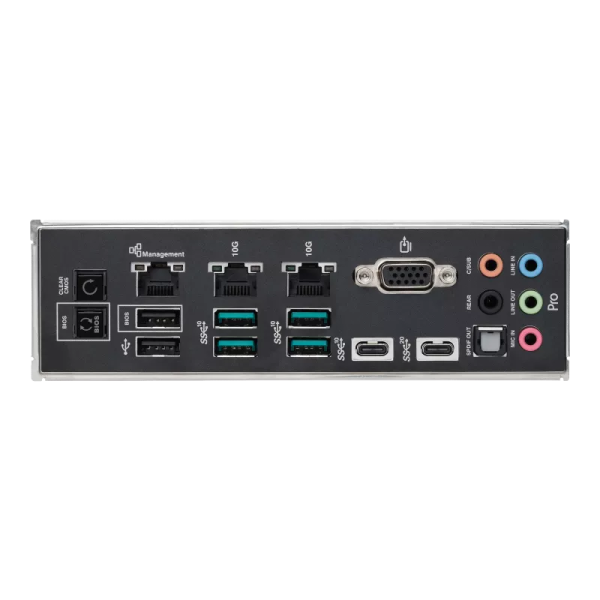

| Back Panel I/O Ports |
1 x USB 3.2 Gen 2x2 port(s) (1 x USB Type-C)
5 x USB 3.2 Gen 2 port(s) (4 x Type-A + 1 x USB Type-C)
2 x USB 2.0 port(s) (2 x Type-A)
1 x VGA port
2 x Intel dual 10Gb Ethernet ports
1 x Realtek 1Gb Ethernet port
5 x Audio jacks
1 x Optical S/PDIF out port
1 x BIOS FlashBack button
1 x Clear CMOS button |
| Internal I/O Connectors:- |
|
| Fan and Cooling related |
1 x 4-pin CPU Fan header(s)
1 x 4-pin CPU OPT Fan header(s)
5 x 4-pin Chassis Fan header(s)
1 x W_PUMP+ header(s) |
| Power related |
2 x 24-pin Main Power connector
4 x 8-pin +12V Power connector
1 x 8-pin PCIe Power connector
1 x 6-pin PCIe Power connector |
| Storage related |
3 x M.2 slots (Key M)
2 x SlimSAS connector(s)
8 x SATA 6Gb/s ports
1 x VROC Key connector |
| USB |
1 x USB 3.2 Gen 2 connector (support(s) USB Type-C )
1 x USB 3.2 Gen 1 header(s) support(s) 2 additional USB 3.2 Gen 1 ports
2 x USB 2.0 header(s) support(s) 4 additional USB 2.0 ports |
| Miscellaneous |
1 x COM Port header
1 x FlexKey button
1 x Front Panel Audio header (AAFP)
1 x LN2 Mode jumper
1 x M.2 slot (Key E)
1 x ReTry button
1 x Safe Boot button
1 x SPI TPM header (14-1pin)
1 x Start button
1 x 20-3 pin System Panel header with Chassis intrude function
1 x Thermal Sensor header |
| BMC Related |
1 x BMC switch
1 x VGA switch
1 x BMC LAN fixed IP switch
1 x IPMI switch
2 x Q_PSU switch
2 x PSU SMBus header
1 x Front panel location LED header
1 x Location button header
1 x VPP_I2C header
1 x Micro SD card socket
1 x BMC_T_SENSOR header
1 x BMC LED
1 x Location LED
1 x Message LED header |
| Special Features |
Extreme OC Kit
FlexKey button
LN2 Mode
ReTry button
Safe boot button
Start button
Extreme Engine Digi+
10K Black Metallic Capacitors
MicroFine Alloy Choke
ASUS 5X PROTECTION III
DIGI+ VRM (Digital power design with DrMOS)
ESD Guards
LANGuard
Overvoltage Protection
Safeslot
Stainless-Steel Back I/O
ASUS Q-Design
M.2 Q-Latch
Q-Code
Q-Connector
Q-DIMM
Q-LED (CPU [red], DRAM [yellow], VGA [white], Boot Device [yellow green])
Q-Slot
ASUS Thermal Solution
M.2 heatsink backplate
M.2 heatsink
Steel backplate
VRM heatsink design
ASUS EZ DIY
BIOS FlashBack button
BIOS FlashBack LED
Caterr1 LED
Box Headers
Clear CMOS button
ProCool II
Pre-mounted I/O shield
SafeSlot
SafeDIMM
Bespoke Motherboard Design & Business Focused Features
24/7 Reliability
Overcurrent Protection |
| Software Features |
ASUS Exclusive Software
Armoury Crate
Fan Xpert 4
AI Suite 3
TPU
DIGI+ VRM
Turbo app
PC Cleaner
ASUS CPU-Z
IT Management software supported
ASUS Control Center Express(ACCE)
Adobe Creative Cloud (Free Trial)
Norton 360 Deluxe (60 Days Free Trial)
WinRAR
UEFI BIOS
ASUS EZ DIY
ASUS CrashFree BIOS 3
ASUSTeK. EzFlash Utility
FlexKey |
| BIOS |
512 Mb Flash ROM, UEFI AMI BIOS |
| Manageability |
WOL by PME, PXE (UEFI mode) |
| Accessories |
Cables
4 x SATA 6Gb/s cables
1 x Thermistor cable pack
Miscellaneous
1 x VRM Fan holder
1 x Q-connector
1 x M.2 Rubber Package(s)
1 x M.2 backplate Rubber Package(s)
1 x Screw package for M.2 Key E
1 x CPU guard for LGA 4677 E1A
1 x CPU guard for LGA 4677 E1B
Documentation
1 x ACC Express Activation Key Card
1 x User guide |
| Operating System |
Windows 11, Windows 10 64-bit |
| Form Factor |
EEB Form Factor
12 inch x 13 inch (30.5 cm x 33 cm) |
