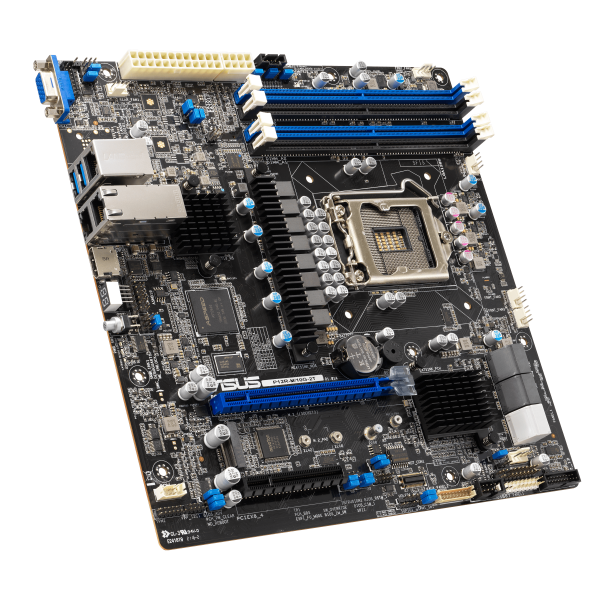

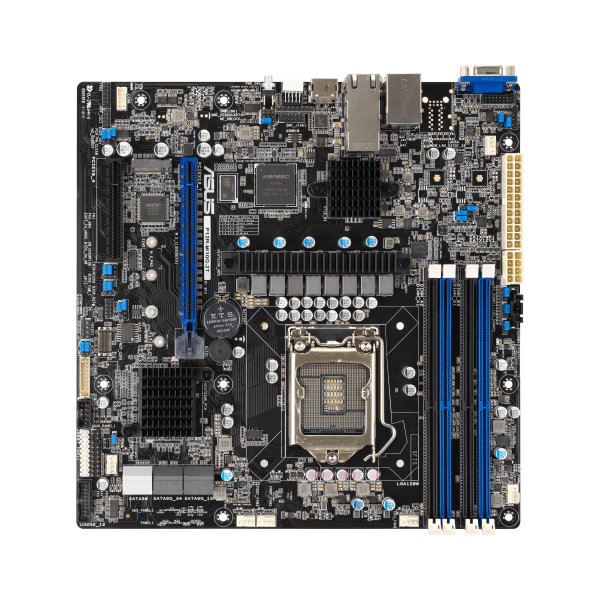

Asus Xeon E MB LGA 1200 DDR4 UDIMM Micro-ATX Server Motherboard

SKU : P12R-M-10G-2T-ASMB
Brand : Asus
Availablity : Online Only, In Stock
Ships within 1 and 3 days or pick up from our Seven Hills, NSW warehouse within 1 to 3 days
Processor socket: LGA 1200, Chipset: Intel C252, Number of memory slots: 4, Factor: microATX, Memory slots type: DIMM, 03 Years Limited Warranty, P12R-M-10G-2T-ASMB.
Ask a question about this product

Estimated Shipping

Pay what you see.

No surcharge On Credit Card, AMEX or Paypal. American express, master card, nab, Paypal, visa


  • Description
  • Specifications
  • Reviews

Product Description

Manufacture # Asus | Model # P12R-M-10G-2T-ASMB


PCI Express (PCIe) 4.0 delivers 16 GT/s bandwidth, which is double the speed of PCIe 3.0, offering lower power consumption, better lane scalability and backwards compatibility. ASUS P12R server motherboards are PCIe 4.0 ready to support a diverse array of graphics, storage and networking – enabling flexible scalability for demanding or increasing workloads.



  • Ideal for remote office/branch office (ROBO) use and everyday business environments
  • Powered by eight-core Intel Xeon E-2300-series processor with support for up to 95 W TDP
  • Flexible expandability with six native SATA HDDs and two PCI Express 4.0 slots
  • Dual Intel X710AT Gigabit Ethernet with teaming support
  • One M.2 for up to 32 Gbps performance for faster OS booting
  • HDMI 1.4 support for high-resolution display maintenance and monitoring
  • Onboard ASUS ASMB10-iKVM with ASPEED AST2600 controller for out-of-band management
  • Integrated PFR FPGA as the platform Root-of-Trust solution for firmware resiliency


  • Processor socket: LGA 1200
  • Chipset: Intel C252
  • Number of memory slots: 4
  • Factor: microATX
  • Memory slots type: DIMM


Manufacturer Warranty: 03 Years Limited Warranty

Technical Specifications

Processor socket LGA 1200
Compatible processor series Intel Pentium, Intel Xeon E
Chipset Intel C252
Supported memory types DDR4-SDRAM
Number of memory slots 4
Memory slots type DIMM
Memory channels Dual-channel
Supported memory clock speeds 2666,2933,3200 MHz
Maximum internal memory 128 GB
Supported memory module capacities 4GB, 8GB, 16GB, 32GB
Supported storage drive interfaces M.2, SATA III
Graphics card family ASPEED
Graphics card AST2600
On-board graphics card memory 64 MB
On Board I/O 1 x TPM header
1 x PSU Power Connector (24-pin ATX power connector + 8-pin ATX 12V power connector)
2 x USB3.2 Gen2 ports
1 x USB3.2 Gen1 header
1 x USB 2.0 pin header
6 x Fan Header, 4pin
1 x SMBus
1 x Chassis Intruder
4 x Front LAN LED
1 x Serial Port Header
1 x M.2 Connector
1 x VGA Header
1 x Onboard header for optional management card
Back I/O Ports 2 x USB 3.2 Gen
2 1 x VGA Port
1 x HDMI Port
2 x 10 GbE LAN + 1 x Mgmt LAN
Ethernet LAN Yes
Wi-Fi No
PCI Express x4 slots 1
PCI Express x16 (Gen 4.x) slots 1
Number of M.2 (M) slots 1
Factor microATX
Width 244 mm
Depth 244 mm
