Product Description

Manufacture: TP-Link | Model: VIGI C420I(4mm)

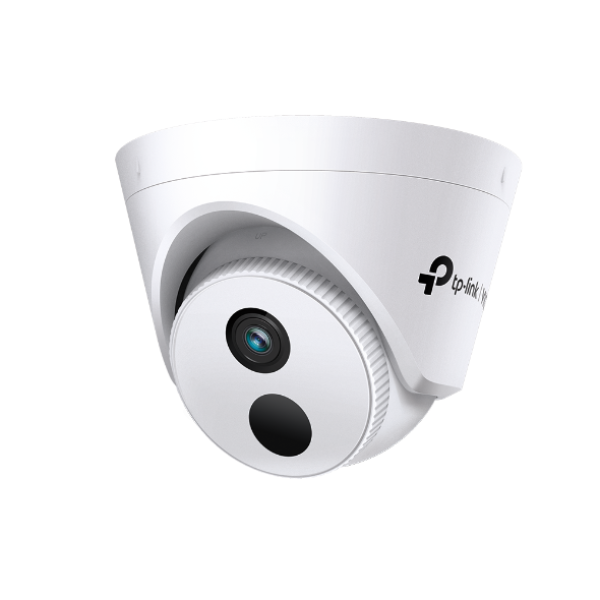

The VIGI Network Camera is a high-performance surveillance solution designed for enhanced security. Featuring a 1/3” Progressive Scan CMOS sensor, it captures clear 1080p full HD footage with advanced H.265+ compression for efficient storage. The camera offers excellent low-light performance with an IR range of up to 30 meters. It supports smart event detection, including human and vehicle classification, intrusion detection, and line-crossing alerts. A wide dynamic range (WDR) ensures balanced exposure in varying lighting conditions. With PoE support, installation is simple and flexible. The camera is compatible with VIGI App, Security Manager, and web browsers for seamless remote access. Privacy features include up to four customizable masks, and security is reinforced with HTTPS encryption and password protection. Durable and lightweight, it operates in extreme temperatures from -30°C to 60°C, making it ideal for both indoor and outdoor use.

Key Features:

1/3” Progressive Scan CMOS Sensor
1080p Full HD Resolution
30m IR Night Vision with Smart IR
H.265+ Video Compression for Efficient Storage
Smart Detection (Human & Vehicle, Intrusion, Line-Crossing)
Wide Dynamic Range (WDR) for Balanced Lighting
PoE (802.3af/at) for Easy Installation
Multiple Remote Access Options (VIGI App, Security Manager, Web UI)
Privacy Protection with Customizable Masks
Weather-Resistant Design with -30°C to 60°C Operating Range

Technical Specifications

Image Sensor	1/3” Progressive Scan CMOS
Shutter Speed	1/3 to 1/10000 s
Slow Shutter	Yes
Minimum Illumination	Color: 0.01 Lux; 0 Lux with IR Light
Day/Night Mechanism	IR Cut Filter
Day/Night Switch	Unified/Scheduled/Auto
Type	Fixed Focal Lens
Focal Length	2.8/4 mm
Aperture	2.8 mm: F2.2 4 mm: F2.0
FOV (Field of View)	2.8mm: Horizontal FOV: 88.2° Vertical FOV: 48.7° Diagonal FOV: 106.5° 4mm: Horizontal FOV: 74.6° Vertical FOV: 41.3° Diagonal FOV: 88.1°
Lens Mount	M12
2.8 mm	Detect: 45 m (149 ft) Observe: 19 m (62 ft) Recognize: 9 m (30 ft) Identify: 5 m (15 ft)
4 mm	Detect: 60 m (198 ft) Observe: 25 m (83 ft) Recognize: 12 m (40 ft) Identify: 6 m (20 ft)
Range	Pan: 0° to 360° Tilt: 0° to 85° Rotate: 0° to 360°
IR LED	Quantity: 1 Range: 30m Wavelength: 850nm
White LED	N/A
Illuminator On/Off Control	Auto/Scheduled/Always on/Always off
Max. Resolution	1920 × 1080
Main Stream Frame Rate	50Hz: 1fps, 5fps, 10fps, 15fps, 20fps, 25fps 60Hz: 1fps, 5fps, 10fps, 15fps, 20fps, 25fps, 30fps
Main Stream Resolution	1920x1080, 1280x960, 1280x720
Sub-Stream Frame Rate	50Hz: 1fps, 5fps, 10fps, 15fps, 20fps, 25fps 60Hz: 1fps, 5fps, 10fps, 15fps, 20fps, 25fps, 30fps
Sub-Stream Resolution	704x576, 640x480, 352x288, 320x240
Bit Rate Control	CBR, VBR
Video Compression	Main Stream: H.265+/H.265/H.264+/H.264 Sub-Stream: H.265/H.264
H.264 Type	Main Profile/High Profile
H.264+	Main Stream Supported
H.265 Type	Main Profile
H.265+	Main Stream Supported
Video Bit Rate	Main Stream: 256 Kbps to 4 Mbps Sub-Stream: 64 Kbps to 512 Kbps
Image Settings	Mirror, Brightness, Contrast, Saturation, Sharpness, Exposure, WDR, White Balance, Prevent Overexposure to Infrared Light, HLC Adjustable by Client Software, Rotation(90°/270°)
Image Enhancement	BLC/3D DNR/HLC/SmartIR
Wide Dynamic Range (WDR)	WDR
SNR	≥ 52 dB
Image Parameters Switch	Yes
Privacy Mask	Up to 4 Masks
ROI (Region of Interest)	1 Region
OSD Setting	Yes
Protocol	TCP/IP, UDP, ICMP, HTTP, HTTPS, DHCP, DNS, RTSP, NTP, UPnP UDP, SSL/TLS
ONVIF	Yes
API	ONVIF
Simultaneous Live View	3 Main Streams & 3 Sub-Streams
Client	VIGI App, VIGI Security Manager, Web UI
Web Browser	Google Chrome® 57 and above Firefox® 52 and above Safari® 11 and above Microsoft® Edge 91 and above
Cloud	Yes
Security	Password Protection, HTTPS Encryption, IP Address Filter, Digest Authentication
Smart Event	Human & Vehicle Classification, Area Intrusion Detection, Line-Crossing Detection, People Detection, Vehicle Detection, Region Entering Detection, Region Exiting Detection, Object Abandoned Detection, Object Removal Detection
Basic Event	Motion Detection, Video Tampering Detection, Exception (Illegal Login)
Alarm Linkage	Message Push
Linkage Method	N/A
Output Notification	Message Push
Operating Temperature	-30–60 °C
Storage Temperature	-40–60 °C
Operating Humidity	95% or Less (Non-Condensing)
Storage Humidity	95% or Less (Non-Condensing)
Package Contents	VIGI Network Camera Quick Start Guide Mounting Accessories
Material	Plastic
Net Weight	0.19 Kg
Gross Weight	0.34 Kg
Power Supply	PoE: 802.3af/at, class 0, Max. 5.5 W
Protection	N/A
Product Dimensions (L x W x H)	123× 83× 123 mm
Certifications	CE, EAC, UKCA, RCM, Triman, BSMI, VCCI, FCC, IC
