Name: TP-Link VIGI C3406mm 4MP Outdoor Full-Color Bullet Network Camera
Brand: TP-Link
SKU: VIGI C340(6mm)
Price: 77 AUD
Availability: InStock

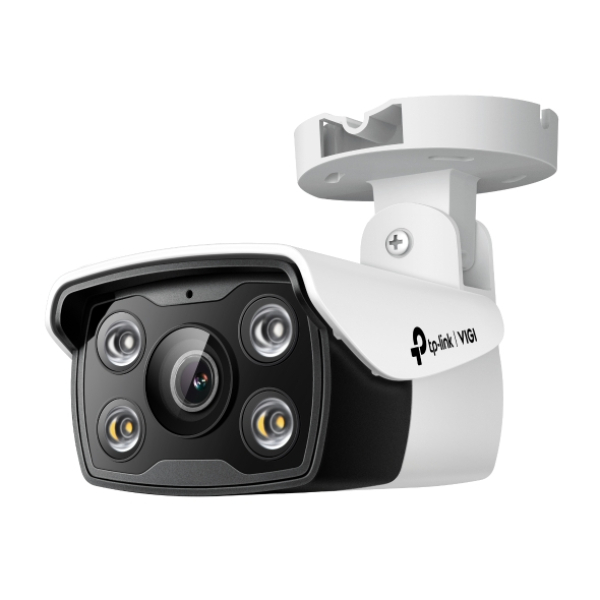

TP-Link VIGI C340(6mm) 4MP Outdoor Full-Color Bullet Network Camera

SKU : VIGI C340(6mm)

Brand : TP-Link

Availablity : on order
On Order items usually have to be ordered in and may take bit longer to get them delivered from our Seven Hills, NSW warehouse

Estimated Shipping

Find

Description
Specifications
Reviews

Product Description

Manufacture: TP-Link | Model: VIGI C340(6mm)

The VIGI Network Camera offers advanced surveillance capabilities, ensuring superior video quality and versatility for a range of monitoring needs. With a 1/3” Progressive Scan CMOS image sensor, the camera provides clear and high-resolution video (2560 x 1440) even in low-light conditions, with a minimum illumination of just 0.005 Lux. It features a choice of fixed focal length lenses (2.8mm, 4mm, 6mm), each delivering excellent field-of-view (FOV) and adjustable angles for optimal coverage. Equipped with IR and white LEDs, the camera ensures clear night-time vision up to 30 meters. Its IP67 weatherproof rating makes it ideal for both indoor and outdoor use, while the two-way audio feature allows for seamless communication in real-time. The camera also supports advanced video compression and multiple bit-rate controls for efficient network use. Additionally, it supports a variety of streaming protocols, and the ability to integrate with cloud storage ensures remote access to footage anytime, anywhere.

Key Features:

High resolution of 2560 x 1440 (4MP) for clear video footage
Wide lens options: 2.8mm, 4mm, and 6mm with varied FOV for flexible monitoring
Built-in IR and white LEDs for night vision up to 30 meters
Two-way audio for effective communication and surveillance
Wide dynamic range (DWDR) for improved clarity in challenging lighting conditions
Advanced image settings and enhancement tools like 3D DNR and HLC
Cloud support and easy integration with VIGI app and web UI for remote access
IP67 weatherproof rating for durability in harsh environments
Supports multiple video compression formats (H.265+/H.265/H.264) for efficient bandwidth usage

Technical Specifications

Image Sensor	1/3” Progressive Scan CMOS
Lens	Fixed focal lens (6 mm)
Day/Night Switch	Day/Night/Auto/Schedule-Switch
Digital Noise Reduction	3D DNR
WDR	DWDR
Weatherproof Rating	IP66
IR Working Distance	30m
Shutter Speed	1/3 to 1/10000 s
Aperture	6 mm: F1.6
Lens Mount	M12
Illumination Distance	30 m
Viewing Angle	(6mm) Horizontal FOV: 50°, vertical FOV: 27°, Diagonal FOV: 59°
Slow Shutter	Yes
Minimum Illumination	0 lux with IR/white Light
Day/Night Mechanism	IR Cut Filter
Network :-
Protocol	TCP/IP, UDP, ICMP, HTTP, HTTPS, DHCP, DNS, RTSP, NTP, UPnP UDP, SSL/TLS
ONVIF	Yes
API	ONVIF
Simultaneous Live View	3 Main Streams & 3 Sub-Streams
Client	VIGI App, VIGI Security Manager
Web Browser	Google Chrome 57 and above Firefox 52 and above Safari 11 and above Microsoft Edge 91 and above
Cloud	Yes
Security	Password Protection, HTTPS Encryption, IP Address Filter, Digest Authentication
Network Storage	NAS (NFS, SMB/ CIFS)
Interfaces :-
Network Interface	1 RJ45 10/100M Self-Adaptive Ethernet Port
Audio Input	Built-in Microphone
Audio Output	Built-in Speaker
Alarm	N/A
Reset Button	Yes
Power	DC Power Port
Button	Reset Button
On-board Storage	Built-In Memory Card Slot, Support MicroSD Card, Up to 256 GB
Built-in Microphone	Yes; Records Anything Going on within a 15-ft Radius of the Camera
Built-in Speaker	Yes
Audio	N/A
Alarm And Event Management :-
Smart Event	Area Intrusion Detection, Line-Crossing Detection, People Detection
Basic Event	Motion Detection, Video Tampering Detection, Exception ( Illegal Login)
Alarm Linkage	Memory Card Video Recording, Message Push, Audible Warning, White Light Flashing
Linkage Method	N/A
Output Notification	Message Push
Video/Image :-
Video Compression	Main stream: H.265+/H.265/H.264+//H.264 Sub-Stream: H.265/H.264
Frame Rate & Resolutions	Main Stream Frame Rate: 1fps, 5fps, 10fps, 15fps, 20fps, 25fps, 30fps Resolution: 2560x1440, 2304x1296, 2048x1280, 1920x1080 Sub-Stream Frame Rate: 1fps, 5fps, 10fps, 15fps, 20fps, 25fps, 30fps Resolution: 640x480, 352x288, 320x240
Video Streaming	Main Stream Sub-Stream
Image Settings	Mirror, Brightness, Contrast, Saturation, Sharpness, Exposure, WDR, White Balance Adjustable by Client Software
Image Enhancement	BLC/3D DNR/Prevent Overexposure to Infrared Light
Video Bit Rate	Main Stream: 256 Kbps to 4 Mbps Sub-Stream: 64 Kbps to 512 Kbps
Smart Feature-set :-
Smart Event	Area Intrusion Detection, Line-Crossing Detection, Human Detection
Basic Event	Motion Detection, Camera Tampering Detection, Exception ( illegal login)
Linkage Method	Trigger Notification: ONVIF, HTTPS
Region of Interest	1 Region
Audio :-
Audio Communication	Two-Way Audio
Audio Input	Yes
Audio Output	Yes
Audio Compression	Yes
Audio Sampling Rate	8KHz
Environment Noise Filtering	Yes
Audio Bit Rate	64 Kbps(G.711 alaw)
Illuminator :-
IR LED	Quantity: 2 Range: 30m Wavelength: 850nm
White LED	Quantity: 2 Range: 30m
Illuminator On/Off Control	Auto/Scheduled/Always on/Always off
Lens :-
Type	Fixed Focal Lens
Focal Length	6 mm
Aperture	6 mm: F1.6
FOV	6mm: Horizontal FOV: 50°, vertical FOV: 27°, Diagonal FOV: 59°
Lens Mount	M12
DORI Distance	6 mm Detect: 128 m (420 ft) Observe: 53 m (175 ft) Recognize: 26 m (84 ft) Identify: 13 m (42 ft)
Angle Adjustment (Manual) :-
Range	Pan: -90° to 90° Tilt: -90° to 90°
Video :-
Max. Resolution	2560 X 1440
Main Stream	Frame Rate 50Hz: 1fps, 5fps, 10fps, 15fps, 20fps, 25fps 60Hz: 1fps, 5fps, 10fps, 15fps, 20fps, 25fps, 30fps Resolution: 2560x1440, 2304x1296, 2048x1280, 1920x1080, 1280x720
Sub-Stream	Frame Rate 50Hz: 1fps, 5fps, 10fps, 15fps, 20fps, 25fps 60Hz: 1fps, 5fps, 10fps, 15fps, 20fps, 25fps, 30fps Resolution: 640x480, 352x288, 320x240
Bit Rate Control	CBR, VBR
Video Compression	Main Stream: H.265+/H.265/H.264+/H.264 Sub-Stream: H.265/H.264
H.264 Type	Main Profile/High Profile
H.264+	Main Stream Supported
H.265 Type	Main Profile
H.265+	Main Stream Supported
Video Bit Rate	Main Stream: 256 Kbps to 4 Mbps Sub-Stream: 64 Kbps to 512 Kbps
Image :-
Image Settings	Mirror, Brightness, Contrast, Saturation, Sharpness, Exposure, WDR, White Balance Adjustable by Client Software, Rotation(90°/270°)
Image Enhancement	BLC/3D DNR/HLC/SmartIR
Wide Dynamic Range	DWDR
SNR	≥ 52 dB
Image Parameters Switch	Yes
Privacy Mask	Up to 4 Masks
ROI	1 Region
OSD Setting	Yes
General :-
Operating Temperature	-30–60 °C
Storage Temperature	-40–60 °C
Operating Humidity	95% or Less (Non-Condensing)
Storage Humidity	95% or Less (Non-Condensing)
Weight	195g
Dimensions( H X W X D )	78 × 70 × 174 mm
Material	Plastic
General Features	Two Streams, Mirror, Privacy Masks, Password Reset via E-mail, HTTP Listening
Net Weight	0.28 Kg
Power Consumption	12V DC: Max 7.5W PoE: Class 0
Power Supply	12V DC ± 5%, 5.5mm Coaxial Power Plug PoE (802.3af/at, class 0)
Protection	IP66
