| Security :- |
|
| Network Security |
SPI Firewall
Access Control
IP & MAC Binding
Application Layer Gateway
HomeShield Security
Real-Time IoT Protection
Malicious Site Blocker
Intrusion Prevention System
DDoS Attack Prevention
Home Network Scanner |
| Guest Network |
1x 5 GHz Guest Network
1x 2.4 GHz Guest Network |
| VPN Server |
OpenVPN
PPTP
L2TP |
| VPN Client |
OpenVPN
PPTP
L2TP |
| WiFi Encryption |
WPA3*
WPA2
WPA
WPA/WPA2-Enterprise (802.1x) |
| Wireless :- |
|
| Standards |
Wi-Fi 6
IEEE 802.11ax/ac/n/a 5 GHz
IEEE 802.11ax/n/b/g 2.4 GHz |
| WiFi Speeds |
AX3000
5 GHz: 2402 Mbps (802.11ax, HE160)
2.4 GHz: 574 Mbps (802.11ax) |
| WiFi Range |
3 Bedroom Houses
4x Fixed High-Performance Antennas
Multiple antennas form a signal-boosting array to cover more directions and large areas
Beamforming
Concentrates wireless signal strength towards clients to expand WiFi range
High-Power FEM
Improves transmission power to strengthen signal coverage |
| WiFi Capacity |
High
Dual-Band
Allocate devices to different bands for optimal performance
OFDMA
Simultaneously communicates with multiple Wi-Fi 6 clients
Airtime Fairness
Improves network efficiency by limiting excessive occupation
DFS
Access an extra band to reduce congestion
4 Streams
Connect your devices to more bandwidth |
| Working Modes |
Router Mode
Access Point Mode |
| Hardware :- |
|

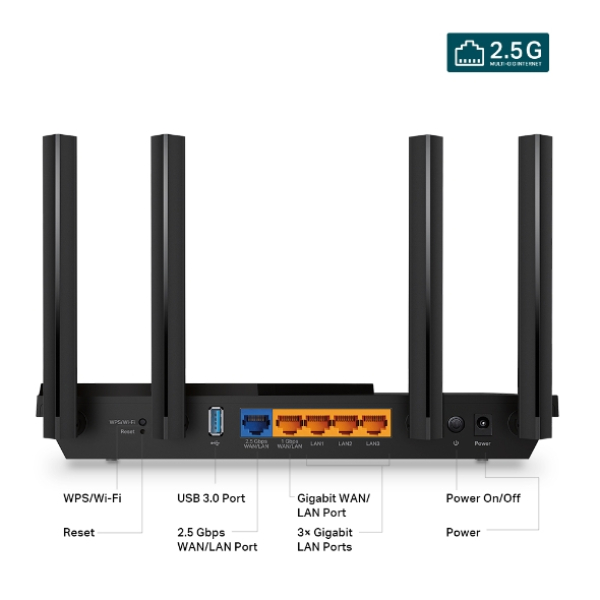

| Ethernet Ports |
1x 2.5 Gigabit WAN/LAN Port
1x Gigabit WAN/LAN Port
3x Gigabit LAN Ports |
| USB Support |
1x USB 3.0 Port
Supported Partition Formats:
NTFS, exFAT, HFS+, FAT32
Supported Functions:
Apple Time Machine
FTP Server
Media Server
Samba Server |
| Buttons |
Wi-Fi/WPS Button
Power On/Off Button
Reset Button |
| Power |
12 V/ 2 A (US Version)
12 V/ 1.5 A (EU Version) |
| Software :- |
|
| Protocols |
IPv4
IPv6 |
| Service Kits |
HomeShield |
| OneMesh |
OneMesh Supported
Without replacing your existing devices or buying a whole new WiFi ecosystem, OneMesh™ helps you create a more flexible network that covers your entire home with TP-Link OneMesh products. |
| EasyMesh |
Mesh networking creates smooth, fast, stable roaming. Archer AX55 Pro can flexibly build an EasyMesh network with EasyMesh-Compatible devices, which eliminates Wi-Fi dead zones, expand your network, and fill your entire home with high-speed Wi-Fi. Seamless Wi-Fi connections with one network name, one-click setting and flexible scalability. |
| Parental Controls |
HomeShield Parental Controls
Custom Profiles
Professional Content Filter Library
Family Time
Bedtime
Off Time
Time Rewards
Family Online Time Ranking
Pause the Internet
Weekly and Monthly Reports |
| WAN Types |
Dynamic IP
Static IP
PPPoE
PPTP
L2TP |
| Quality of Service |
QoS by Device |
| Cloud Service |
Auto Firmware Upgrade
OTA Firmware Upgrade
TP-Link ID
DDNS |
| NAT Forwarding |
Port Forwarding
Port Triggering
DMZ
UPnP |
| IPTV |
IGMP Proxy
IGMP Snooping
Bridge
Tag VLAN |
| DHCP |
Address Reservation
DHCP Client List
Server |
| DDNS |
TP-Link
NO-IP
DynDNS |
| Management |
Tether App
Webpage |
| Other :- |
|
| System Requirements |
Internet Explorer 11+, Firefox 12.0+, Chrome 20.0+, Safari 4.0+, or other JavaScript-enabled browser
Cable or DSL Modem (if needed)
Subscription with an internet service provider (for internet access) |
| Certifications |
FCC, CE, RoHS |
| Environment |
Operating Temperature: 0°C~40°C (32°F ~104°F)
Operating Humidity: 10%~90% non-condensing |
| Test Data :- |
|
| WiFi Transmission Power |
CE:
<20dBm(2.4GHz)
<23dBm (5.15GHz~5.25GHz & 5.25GHz~5.35GHz)
<30dBm (5.47GHz~5.725GHz)
FCC:
<30dBm (2.4GHz)
<30dBm(5.15GHz~5.25GHz&5.725GHz~5.850GHz)
<24dBm (5.25GHz~5.35GHz&5.47GHz~5.725GHz) |
| WiFi Reception Sensitivity |
2.4 GHz:
11ac VHT20 MCS0:-97dBm, 11ac VHT20 MCS11: -74dBm,
11ac VHT40 MCS0: -93dBm, 11ac VHT40 MCS11: -70dBm,
11ax HE20 MCS0: -96dBm, 11ax HE20 MCS11: -66dBm,
11ax HE40 MCS0: -93dBm, 11ac HE40 MCS11: -63dBm
5 GHz:
11ac VHT20 MCS0: -97dBm, 11ac VHT20 MCS11: -74dBm,
11ac VHT40 MCS0: -93dBm, 11ac VHT40 MCS11: -69dBm,
11ac VHT80 MCS0: -90dBm, 11ac VHT80 MCS11: -65dBm,
11ax HE20 MCS0: -97dBm, 11ax HE20 MCS11: -66dBm,
11ax HE40 MCS0: -94dBm, 11ax HE40 MCS11: -63dBm,
11ax HE80 MCS0: -90dBm, 11ax HE80 MCS11: -61dBm,
11ax HE160 MCS0: -87dBm, 11ax HE160 MCS11: -58dBm |
| Physical :- |
|
| Dimensions (W×D×H) |
10.2 × 5.3 × 1.5 in
(261.1 × 134.5 × 41.0 mm) |
| Package Contents |
Wi-Fi Router Archer AX55 Pro
Power Adapter
RJ45 Ethernet Cable
Quick Installation Guide |
