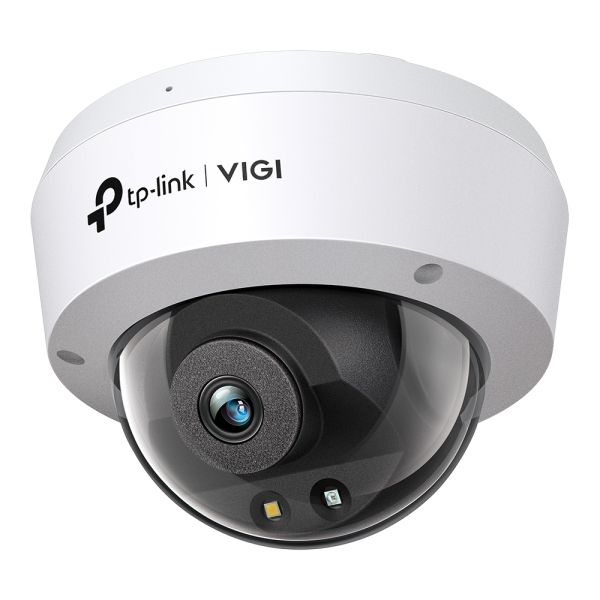

Name: TP-Link VIGI C240(2.8mm) 4MP Full-Colour Dome Network Camera
Brand: TP-Link
SKU: VIGI C240(2.8mm)
Price: 82.50 AUD
Availability: InStock

TP-Link VIGI C240(2.8mm) 4MP Full-Colour Dome Network Camera

Sku: VIGI C240(2.8mm)

Brand: TP-Link

Category: IP Cameras

$82.50

Shipping Information

Availability: In Stock

Ships in 1-2 days.

Pickup from Seven Hills in 1-2 days.

Shipping Calculator

Find

The VIGI network camera with a 1/3” Progressive Scan CMOS sensor offers 2560x1440 resolution, multiple lens options (2.8mm and 4mm), and features like DWDR, 3D DNR, and H.265+/H.265 video compression. It is equipped with IR and white LED illuminators, providing night vision up to 30 meters. The camera is weatherproof (IP67) and vandal-resistant (IK10), with smart event capabilities such as motion detection and object removal. It supports ONVIF, cloud storage, and VIGI's ecosystem, making it ideal for secure surveillance.

We Accept

Description

Manufacture: TP-Link | Model: VIGI C240(2.8mm)

The VIGI Network Camera is an advanced surveillance solution designed for both professional and home security systems. Equipped with a 1/3" Progressive Scan CMOS sensor, this camera provides exceptional video quality with a maximum resolution of 2560 × 1440 (4MP). It delivers clear images even in low light conditions, with its minimum illumination reaching just 0.005 Lux and IR/White Light capabilities for night surveillance. Featuring a weatherproof IP67 rating, it can withstand harsh environments. The camera also boasts a wide range of features including advanced digital noise reduction (3D DNR), wide dynamic range (DWDR), and flexible viewing angles. Whether installed indoors or outdoors, this camera ensures reliable performance and high-quality footage round the clock.

Key Features:

High 4MP resolution for clear, detailed video footage
Progressive Scan CMOS sensor for excellent image quality
Wide dynamic range (DWDR) for better contrast and clarity in varied lighting
Flexible lens options with 2.8mm and 4mm focal lengths
IP67 weatherproof rating for durability in tough outdoor conditions
Manual pan, tilt, and rotation adjustment for customized coverage
Advanced 3D digital noise reduction (DNR) for improved low-light performance
Supports multiple video compression formats (H.265+, H.265, H.264+) for efficient streaming
Built-in microphone for audio capture and environment noise filtering

Image Sensor	1/3” Progressive Scan CMOS
Shutter Speed	1/3 to 1/10000 s
Slow Shutter	Yes
Minimum Illumination	Color: 0.005 Lux; 0 Lux with IR/White Light
Day/Night Mechanism	IR Cut Filter
Day/Night Switch	Unified/ Scheduled/ Auto
Lens	2.8 mm
Aperture	2.8 mm: F1.6
Lens Mount	M12
Viewing Angle	2.8mm: Horizontal FOV: 95.7°, Vertical FOV: 51.7°, Diagonal FOV: 113.0°
Pan/Tilt Range	Pan: 0° to 360°, Tilt: 0° to 85°, Rotate: 0° to 360°
Digital Noise Reduction	3D DNR
WDR	DWDR
Weatherproof Rating	IP67
LENS :-
Type	Fixed Focal Lens
Focal Length	2.8 mm
Aperture	2.8 mm: F1.6
FOV	2.8 mm: Horizontal FOV: 95.7°, Vertical FOV: 51.7°, Diagonal FOV: 113.0°
Lens Mount	M12
DORI Distance	2.8 mm: Detect: 64 m (209 ft) Observe: 27 m (87 ft) Recognize: 13 m (42 ft) Identify: 6 m (21 ft)
VIDEO :-
Max. Resolution	2560 x 1440
Main Stream	Frame Rate: 50Hz: 1fps, 5fps, 10fps, 15fps, 20fps, 25fps 60Hz: 1fps, 5fps, 10fps, 15fps, 20fps, 25fps, 30fps Resolution: 2560x1440,2304x1296, 2048x1280, 1920x1080, 1280x720 Note: If the image rotation is set to 90° or 270°, the frame rate only supports up to 20fps.
Sub-Stream	Frame Rate: 50Hz: 1fps, 5fps, 10fps, 15fps, 20fps, 25fps 60Hz: 1fps, 5fps, 10fps, 15fps, 20fps, 25fps, 30fps Resolution: 640x480,352x288, 320x240 Note: If the image rotation is set to 90° or 270°, the frame rate only supports up to 20fps.
Bit Rate Control	CBR, VBR
Video Compression	Main Stream: H.265+/H.265/H.264+/H.264 Sub-Stream: H.265/H.264
H.264 Type	Main Profile/High Profile
H.264+	Main Stream Supported
H.265 Type	Main Profile
H.265+	Main Stream Supported
Video Bit Rate	Main Stream: 256 Kbps to 4 Mbps Sub-Stream: 64 Kbps to 512 Kbps
IMAGE :-
Image Settings	Mirror, Brightness, Contrast, Saturation, Sharpness, Exposure, WDR, White Balance, Prevent Overexposure to Infrared Light, HLC Adjustable by Client Software, Rotation(90°/270°)
Image Enhancement	BLC/3D DNR/HLC/SmartIR
Wide Dynamic Range	DWDR
SNR	≥ 52 dB
Image Parameters Switch	Yes
Privacy Mask	Up to 4 Masks
ROI	1 Region
OSD Setting	Yes
ILLUMINATOR :-
IR LED	Quantity: 1 Range: 30m Wavelength: 850nm
White LED	Quantity: 1 Range: 30m
Illuminator On/Off Control	Auto/Scheduled/Always on/Always off
ANGLE ADJUSTMENT (MANUAL) :-
Range	Pan: 0° to 355° Tilt: 0° to 75°
AUDIO :-
Audio Communication	N/A
Audio Input	N/A
Audio Output	N/A
Audio Compression	N/A
Audio Sampling Rate	N/A
Environment Noise Filtering	N/A
Audio Bit Rate	N/A
NETWORK :-
Security	Password Protection, HTTPS Encryption, IP Address Filter, Digest Authentication
Protocol	TCP/IP, UDP, ICMP, HTTP, HTTPS, DHCP, DNS, RTSP, NTP, UPnP UDP, SSL/TLS
API	ONVIF
Simultaneous Live View	3 Main Streams & 3 Sub-Streams
Client	VIGI App, VIGI Security Manager, VIGI NVR, Web
Web Browser	Google Chrome 57 and above Firefox 52 and above Safari 11 and above Microsoft Edge 91 and above
Cloud	Yes
ONVIF	Yes
INTERFACES :-
Network Interface	1 RJ45 10/100M Self-Adaptive Ethernet Port
Alarm	N/A
Reset Button	N/A
Power	DC Power Port
Button	-
Video Output	-
On-board Storage	Built-in Memory Card Slot, Support MicroSD Card, Up to 256 GB
Built-in Microphone	Yes
Built-in Speaker	N/A
Audio	N/A
ALARM AND EVENT MANAGEMENT :-
Smart Event	Human & Vehicle Classification, Area Intrusion Detection, Line-Crossing Detection, People Detection, Vehicle Detection, Region Entering Detection, Region Exiting Detection, Object Abandoned Detection, Object Removal Detection
Basic Event	Motion Detection, Video Tampering Detection, Exception ( Illegal Login)
Alarm Linkage	White Light Flashing, Message Push
Linkage Method	N/A
Output Notification	Message Push
GENERAL :-
Package Contents	Package Contents
Operating Temperature	-30–60 °C
Storage Temperature	-40–60 °C
Storage Humidity	95% or Less (Non-Condensing)
Operating Humidity	95% or Less (Non-Condensing)
Dimensions( H X W X D )	115 × 115 × 86 mm
Material	Plastic
General Features	Two Streams, Mirror, Privacy Masks, Password Reset via E-mail, HTTP Listening
Net Weight	0.28 Kg
Power Consumption	12V DC: Max 5.4W PoE: Class 0
Power Supply	12V DC ± 5%, 5.5mm Coaxial Power Plug PoE (802.3af/at, class 0)
Vandal Resistant	IK10
Protection	IP67, IK10
Product Dimensions (L x W x H)	115× 86× 115 mm
Certifications	CE/BSMI/VCCI/ONVIF
VIDEO/IMAGE :-
Video Compression	Main Stream: H.265+/H.265/H.264+/H.264 Sub-Stream: H.265/H.264
Frame Rate & Resolutions	Main Stream: Frame Rate: 1fps, 5fps, 10fps, 15fps, 20fps, 25fps, 30fps Resolution: 2560x1440,2304x1296, 2048x1280, 1920x1080, 1280x720 Sub-Stream: Frame Rate: 1fps, 5fps, 10fps, 15fps, 20fps, 25fps, 30fps Resolution: 640x480,352x288, 320x240
Max. Resolution	4MP (2560 × 1440)
Video Streaming	Main Stream Sub-Stream
Image Settings	Mirror, Brightness, Contrast, Saturation, Sharpness, Exposure, WDR, White Balance Adjustable by Client Software, Rotation(90°/270°)
Image Enhancement	BLC/3D DNR/HLC/SmartIR
Video Bit Rate	64 Kbps to 4 Mbps
Day/Night Switch	Day/Night/Auto/Schedule
SMART FEATURE-SET :-
Smart Event	Human & Vehicle Classification, Intrusion Detection, Line-Crossing Detection, Human Detection, Vehicle Detection, Region Entering Detection, Region Exiting Detection, Object Abandoned Detection, Object Removal Detection
Basic Event	Motion Detection, Camera Tampering Detection, Exception (Illegal Login)
Linkage Method	Trigger Notification: ONVIF, HTTPS
Region of Interest	1 Region
