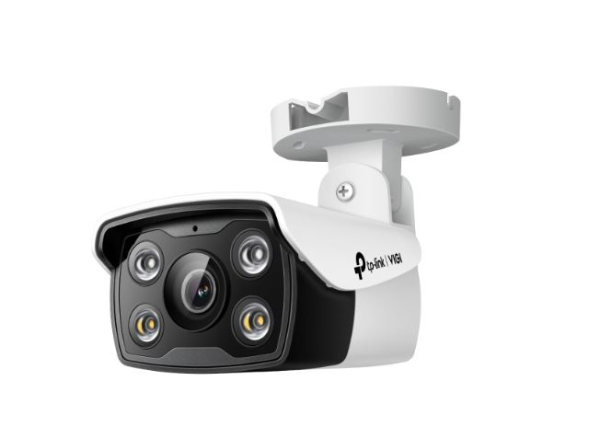

Manufacture: TP-Link | Model: VIGI C340(2.8mm)
The VIGI Network Camera is designed to provide high-definition video surveillance with flexibility and reliability. Equipped with a 1/3” Progressive Scan CMOS sensor, this camera offers exceptional image quality, even in low light with a minimum illumination of 0.005 Lux. The camera features a variety of lens options, including 2.8mm, 4mm, and 6mm, providing different fields of view (FOV) to suit various surveillance needs. With IR illumination capable of covering 30 meters and advanced features such as two-way audio and motion detection, this camera is ideal for both commercial and residential applications. Its rugged, IP67-rated housing ensures durability in harsh weather conditions, and the built-in memory card slot supports up to 512GB of storage for continuous video recording. The camera’s versatility is further enhanced by its PoE support, cloud functionality, and security features like HTTPS encryption and IP address filtering.
| Image Sensor | 1/3” Progressive Scan CMOS |
| Shutter Speed | 1/3 to 1/10000 s |
| Slow Shutter | Yes |
| Minimum Illumination | 0.005 Lux; 0 Lux with IR/White Light |
| Day/Night Mechanism | IR Cut Filter |
| Day/Night Switch | Unified/Scheduled/Auto |
| LENS | |
| Type | Fixed Focal Lens |
| Focal Length | 2.8 mm/4 mm/6 mm |
| Aperture | 2.8 mm: F1.6, 4 mm: F1.6, 6 mm: F1.6 |
| FOV | 2.8mm: Horizontal FOV: 96.1°, Vertical FOV: 52°, Diagonal FOV: 113.6° 4mm: Horizontal FOV: 80°, Vertical FOV: 43.2°, Diagonal FOV: 94.2° 6mm: Horizontal FOV: 49.3°, Vertical FOV: 26.8°, Diagonal FOV: 57.4° |
| Lens Mount | M12 |
| DORI Distance | 2.8 mm: Detect: 64 m (209 ft), Observe: 27 m (87 ft), Recognize: 13 m (42 ft), Identify: 6 m (21 ft) 4 mm: Detect: 80 m (262 ft), Observe: 33 m (109 ft), Recognize: 16 m (52 ft), Identify: 8 m (26 ft) 6 mm: Detect: 128 m (420 ft), Observe: 53 m (175 ft), Recognize: 26 m (84 ft), Identify: 13 m (42 ft) |
| Angle Adjustment (Manual) | Pan: -90° to 90°, Tilt: -90° to 90° |
| ILLUMINATOR | |
| IR LED | Quantity: 2, Range: 30m, Wavelength: 850nm |
| White LED | Quantity: 2, Range: 30m |
| Illuminator On/Off Control | Auto/Scheduled/Always on/Always off |
| VIDEO | |
| Max. Resolution | 2560 X 1440 |
| Main Stream | Frame Rate: 50Hz: 1fps, 5fps, 10fps, 15fps, 20fps, 25fps 60Hz: 1fps, 5fps, 10fps, 15fps, 20fps, 25fps, 30fps Resolution: 2560x1440, 2304x1296, 2048x1280, 1920x1080, 1280x720 Note: If the image rotation is set to 90° or 270°, the frame rate only supports up to 20fps. |
| Sub-Stream | Frame Rate: 50Hz: 1fps, 5fps, 10fps, 15fps, 20fps, 25fps 60Hz: 1fps, 5fps, 10fps, 15fps, 20fps, 25fps, 30fps Resolution: 640x480, 352x288, 320x240 Note: If the image rotation is set to 90° or 270°, the frame rate only supports up to 20fps. |
| Bit Rate Control | CBR, VBR |
| Video Compression | Main Stream: H.265+/H.265/H.264+/H.264, Sub-Stream: H.265/H.264 |
| H.264 Type | Main Profile/High Profile |
| H.264+ | Main Stream Supported |
| H.265 Type | Main Profile |
| H.265+ | Main Stream Supported |
| Video Bit Rate | Main Stream: 256 Kbps to 4 Mbps, Sub-Stream: 64 Kbps to 512 Kbps |
| Image Settings | Mirror, Brightness, Contrast, Saturation, Sharpness, Exposure, WDR, White Balance Adjustable by Client Software, Rotation (90°/270°) |
| Image Enhancement | BLC/3D DNR/HLC/SmartIR |
| Wide Dynamic Range | DWDR |
| SNR | ≥ 52 dB |
| Image Parameters Switch | Yes |
| Privacy Mask | Up to 4 Masks |
| ROI | 1 Region |
| OSD Setting | Yes |
| AUDIO | |
| Audio Communication | Two-Way Audio |
| Audio Input | Yes |
| Audio Output | Yes |
| Audio Compression | Yes |
| Audio Sampling Rate | 8KHz |
| Environment Noise Filtering | Yes |
| Audio Bit Rate | 64 Kbps (G.711 alaw) |
| NETWORK | |
| Protocol | TCP/IP, UDP, ICMP, HTTP, HTTPS, DHCP, DNS, RTSP, NTP, UPnP UDP, SSL/TLS |
| ONVIF | Yes |
| API | Open Network Video Interface (Profile S) |
| Simultaneous Live View | 3 Main Streams & 3 Sub-Streams |
| Client | VIGI App, VIGI Security Manager, Web UI |
| Web Browser | Google Chrome® 57 and above, Firefox® 52 and above, Safari® 11 and above, Microsoft® Edge 91 and above |
| Cloud | Yes |
| Security | Password Protection, HTTPS Encryption, IP Address Filter, Digest Authentication |
| ALARM AND EVENT MANAGEMENT | |
| Smart Event | Human & Vehicle Classification, Area Intrusion Detection, Line-Crossing Detection, People Detection, Vehicle Detection, Region Entering Detection, Region Exiting Detection, Object Abandoned Detection, Object Removal Detection |
| Basic Event | Motion Detection, Video Tampering Detection, Exception (Illegal Login) |
| Alarm Linkage | Memory Card Video Recording, Message Push, Audible Warning, White Light Flashing |
| Linkage Method | N/A |
| Output Notification | Message Push |
| INTERFACES | |
| Network Interface | 1 RJ45 10/100M Self-Adaptive Ethernet Port, PoE |
| Alarm | N/A |
| Reset Button | Yes |
| Power | DC Power Port |
| On-board Storage | Built-In Memory Card Slot, Supports MicroSD Card, Up to 512 GB |
| Built-in Microphone | Yes; Records Anything Going on within a 15-ft Radius of the Camera |
| Built-in Speaker | Yes |
| Audio | N/A |
| GENERAL | |
| Operating Temperature | -30–60 °C |
| Storage Temperature | -40–60 °C |
| Operating Humidity | 95% or Less (Non-Condensing) |
| Storage Humidity | 95% or Less (Non-Condensing) |
| Package Contents | VIGI Network Camera, Quick Start Guide, Waterproof Cable Attachments, Mounting Accessories |
| Material | Plastic |
| Net Weight | 0.28 Kg |
| Gross Weight | 0.42 Kg |
| Power Supply | 12V DC ± 5%, Max. 7 W, 5.5mm Coaxial Power Plug, PoE: 802.3af/at, class 0, Max. 8 W |
| Protection | IP67 |
| Product Dimensions (L x W x H) | 78× 174 × 70 mm |
| Certifications | CE, NTRA, VCCI, KC, BSMI, FCC, IC |
