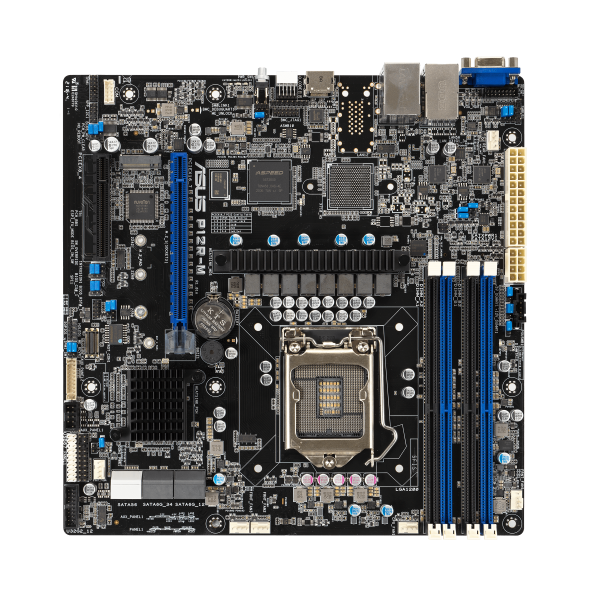

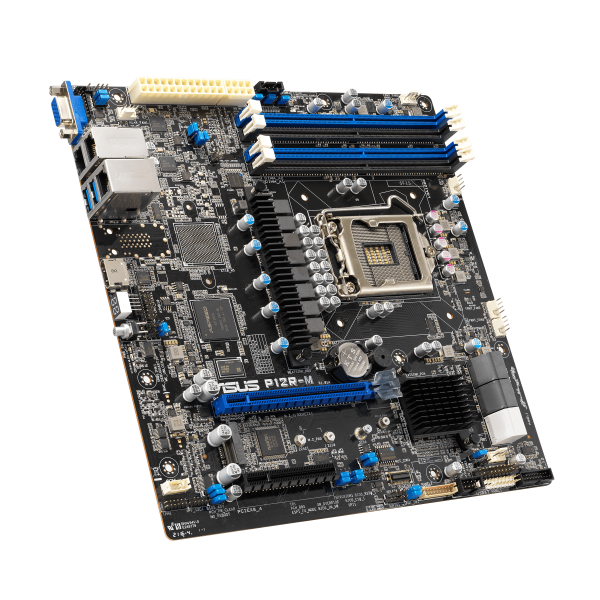

Asus P12R-M XEON E-2300 LGA 1200 Micro ATX Server Motherboard

SKU : P12R-M
Brand : Asus
Availablity : Online Only, In Stock
Ships within 1 and 3 days from our Seven Hills, NSW warehouse
Core Logic: Intel C252 Chipset, Total Slots: 4 (2-channel), Capacity: Maximum up to 128GB UDIMM, Form Factor: U ATX, 03 Years Limited Warranty, P12R-M.
Ask a question about this product

Estimated Shipping

Pay what you see.

No surcharge On Credit Card, AMEX or Paypal. American express, master card, nab, Paypal, visa


  • Description
  • Specifications
  • Reviews

Product Description

Manufacture # Asus | Model # P12R-M


PCI Express (PCIe) 4.0 delivers 16 GT/s bandwidth, which is double the speed of PCIe 3.0, offering lower power consumption, better lane scalability and backwards compatibility. ASUS P12R server motherboards are PCIe 4.0 ready to support a diverse array of graphics, storage and networking – enabling flexible scalability for demanding or increasing workloads.



  • Ideal for remote office/branch office (ROBO) use and everyday business environments
  • Powered by eight-core Intel Xeon E-2300-series processor with support for up to 95 W TDP
  • Flexible expandability with six native SATA HDDs and two PCI Express 4.0 slots
  • Dual Intel I210AT Gigabit Ethernet with teaming support
  • One M.2 for up to 32 Gbps performance for faster OS booting
  • HDMI 1.4 support for high-resolution display maintenance and monitoring
  • Onboard ASUS ASMB10-iKVM with ASPEED AST2600 controller for out-of-band management
  • Integrated PFR FPGA as the platform Root-of-Trust solution for firmware resiliency



  • Core Logic: Intel C252 Chipset
  • Total Slots: 4 (2-channel)
  • Capacity: Maximum up to 128GB UDIMM
  • Form Factor: U ATX


Manufacturer Warranty: 03 Years Limited Warranty

Technical Specifications

Processor / System Bus 1 x Socket LGA1200
Intel Pentium Processors
Intel Xeon E processors
Core Logic Intel C252 Chipset
Memory Total Slots : 4 (2-channel)
Capacity : Maximum up to 128GB UDIMM
Memory Type : DDR4 3200/2933/2666 UDIMM
Memory Size : 32GB, 16GB, 8GB, 4GB
Expansion Slots Total Slot : 2
Slot Location 4 : PCI-E x8 (Gen4 X4 Link)
Slot Location 6 : PCI-E x16 (Gen4 X16 Link)
Form Factor U ATX (9.6"x9.6", 244mm x 244mm)
Storage Storage Controller : 6 x SATA3 6Gb/s ports
1 x M.2 connector (2280/2260/2242) SAS Controller : ASUS PIKE II 3008-8i 8-port SAS 12G RAID card
ASUS PIKE II 3108-8i 8-port SAS 12G HW RAID card
Networking 2 x Intel I210AT + 1 x Mgmt LAN
Graphic Aspeed AST2600 with 64MB VRAM
On Board I/O 1 x TPM header
1 x PSU Power Connector (24-pin ATX power connector + 8-pin ATX 12V power connector)
2 x USB3.2 Gen2 ports
1 x USB3.2 Gen1 header
1 x USB 2.0 pin header
6 x Fan Header , 4pin
1 x SMBus
1 x Chassis Intruder
4 x Front LAN LED
1 x Serial Port Header
1 x M.2 Connector
1 x VGA Header
1 x Onboard header for optional management card
Back I/O Ports 2 x USB 3.2 Gen 2
1 x VGA Port (VGA from BMC)
1 x HDMI Port (useable only with iGPU)
2 x GbE LAN + 1 x Mgmt LAN
Management Solution ASUS Control Center Enterprise (Optional)
Optional ASMB10-iKVM for KVM-over-Internet
Environment Operation temperature: 10? ~ 50?*
Non operation temperature: -40? ~ 70?
Non operation humidity: 20% ~ 90% ( Non condensing)
Monitoring CPU Temperature
