| Network Standard |
IEEE 802.11a
IEEE 802.11b
IEEE 802.11g
WiFi 4 (802.11n)
WiFi 5 (802.11ac)
WiFi 6 (802.11ax)
IPv4
IPv6 |
| Product Segment |
AXE7800 ultimate AX performance : 574+4804+2402 Mbps |
| AX technology |
Yes |
| Data Rate |
802.11a : up to 54 Mbps
802.11b : up to 11 Mbps
802.11g : up to 54 Mbps
WiFi 4 (802.11n) : up to 300 Mbps
WiFi 5 (802.11ac) : up to 500 Mbps
WiFi 5 (802.11ac) (1024QAM) : up to 2167 Mbps
WiFi 6 (802.11ax) (2.4GHz) : up to 574 Mbps
WiFi 6 (802.11ax) (5GHz) : up to 4804 Mbps
WiFi 6E (802.11ax) (6GHz) : up to 2402 Mbps |

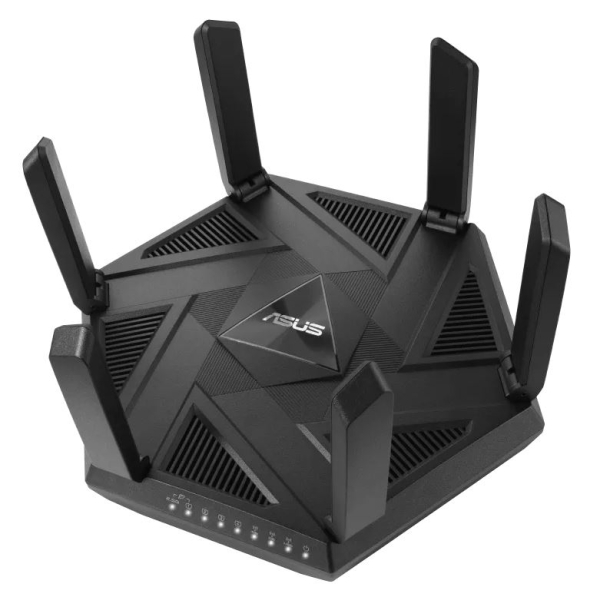

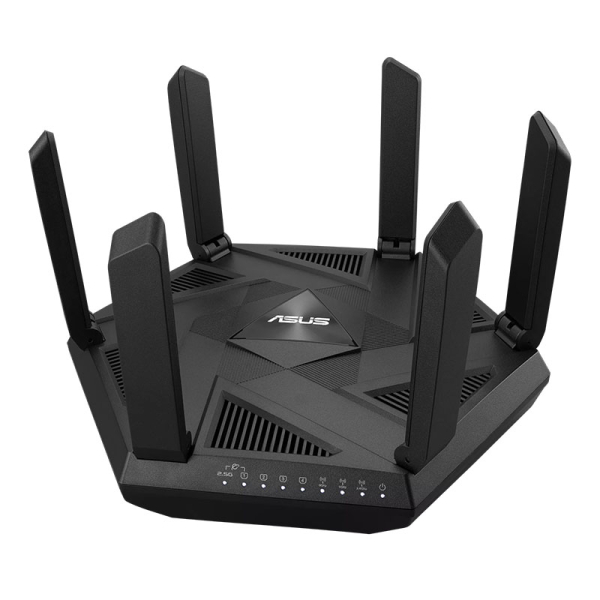

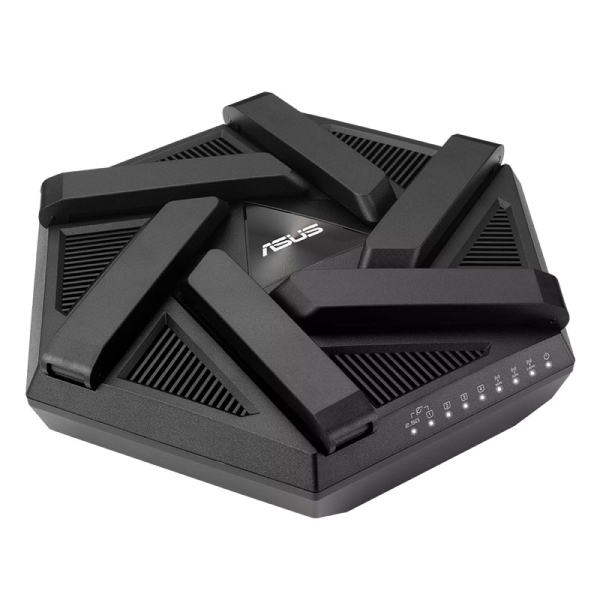

| Antenna |
External antenna x 6 (non-detachable) |
| Transmit/Receive |
2.4GHz 2x2
5GHz 4x4
6GHz 2x2 |
| Processor |
1.7GHz quad-core processor |
| Memory |
256 MB Flash and 512 MB DDR4 RAM |
| Boosts speed |
OFDMA (Orthogonal Frequency Division Multiple Access)
Beamforming: standard-based and universal
1024-QAM high data rate
20/40/80/160 MHz bandwidth |
| Operating Frequency |
Tri-band Wi-Fi: 2.4 GHz / 5 GHz / 6 GHz |

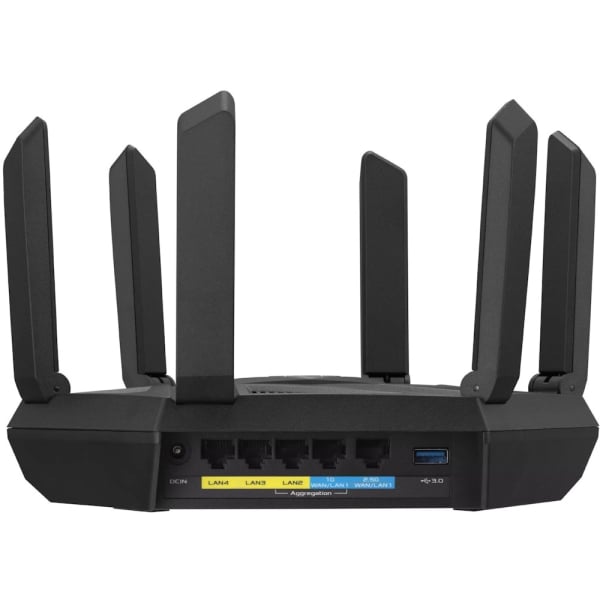

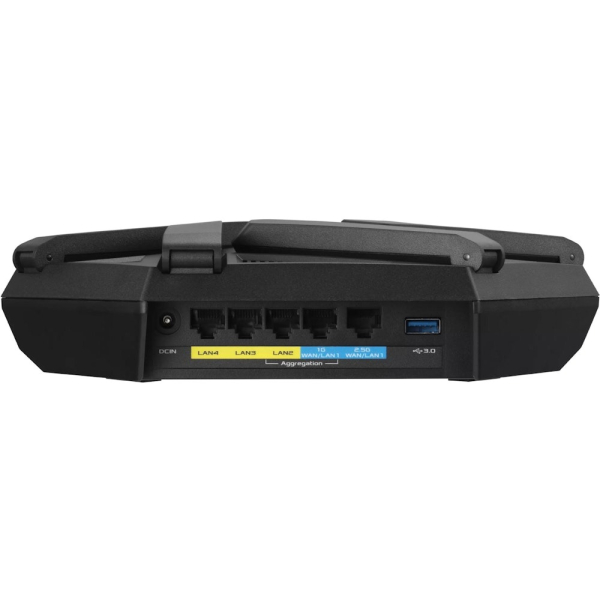

| Ports |
1 x 2.5G Mbps for WAN/LAN
1 x RJ45 10/100/1000Mbps for WAN/LAN
3 x RJ45 10/100/1000Mbps for LAN
1 x USB 3.2 Gen 1 Port |
| Button |
Power on/off switch
Reset Button
WPS Button |
| LED Indicator |
Power x 1
2.4GHz x 1
5GHz x 1
6HGz x 1
2.5G WAN/LAN1 x 1
1G WAN/LAN1 x 1
1G LAN x 3 |
| Power Supply |
AC Input : 110V~240V(50~60Hz)
DC Output : 12 V with max. 3.0 A current |
| Product Weight (g) |
1033g |
| AiMesh |
AiMesh
Primary AiMesh router
AiMesh node |
| Router APP |
ASUS Router APP |
| Alexa |
Support Alexa skill |
| AiProtection |
AiProtection Pro
AiProtection
Malicious site blocking
Two-Way IPS
Infected Device Prevention and Blocking |
| Parental Control |
Parental Control
Parental Control Customized Internet schedule
Maximum Parental Control profile : 64
Maximum Parental Control content filter rule : 64 |
| Traffic Control |
Adaptive QoS
Bandwidth Monitor
Bandwidth limiter
Maximum Bandwidth limiter rule : 32
Traditional QoS
Maximum Traditional QoS rule : 32
Traffic Monitor
Real-time traffic monitor
Wired Traffic Monitor
Wireless Traffic Monitor
Traffic Analyzer
Traffic analysis period : Daily, Weekly, Monthly
Website history |
| Wireless |
IPv6
MU-MIMO
Wi-Fi Encryption : WPA3-Personal, WPA2-Personal, WPA-Personal, WPA-Enterprise , WPA2-Enterprise , WPS support
UTF-8 SSID
Guest Network
Maximum Guest Network rule : 2.4 GHz x 3, 5 GHz-1 x 3, 6 GHz x 3
Guest Network Connection time limit
Guest Network Encryption : Open system, WPA/WPA2/WPA3-Personal, WPS
WPS
WiFi MAC address filter
Maximum MAC filters : 64
Wireless scheduler
Airtime fairness
RADIUS Client
Universal beamforming
Explicit beamforming |
| WAN |
Internet connection Type : PPPoE, PPTP, L2TP, Automatic IP, Static IP
Dual WAN
WAN Aggregation
3G/4G LTE dongle
Android tethering
Port forwarding
Maximum port forwarding rule : 64
Port triggering
Maximum port triggering rule : 32
DMZ
DDNS
NAT Passthrough : PPTP Pass-Through, L2TP Pass-Through, IPSec Pass-Through, RTSP Pass-Through, H.323 Pass-Through, SIP Passthrough, PPPoE relay
Let's Encrypt
Safe browsing
DNS-over-TLS |
| LAN |
DHCP Server
IPTV
LAN Link Aggregation
Manually assign IP address
Maximum manually assign IP address rule : 64 |
| VPN |
Instant Guard
VPN Client L2TP
VPN Client OVPN
VPN Client PPTP
VPN Client WireGuard
VPN Server IPSec
VPN Server OVPN
VPN Server PPTP
VPN Server WireGuard
VPN Fusion |
| Administration |
Operating mode : Router(AiMesh router), AiMesh node, Access point, Repeater, Media bridge
Operating system : ASUSWRT
Free OS upgrade
Firewall
Maximum Firewall keyword filter : 64
Maximum Firewall network service filter : 32
Maximum Firewall URL filter : 64
SSH
Wake on LAN (WOL)
Configuration backup and restore
Diagnosis tools
Feedback system
System log
New Device Connect Notification
Login Captcha
Connection Diagnosis
Security Scan
Auto Firmware Update |
| USB application |
File System : HFS+, NTFS, vFAT, ext2, ext3, ext4
3G/4G LTE dongle
Safely Remove disk
AiCloud
Download master
AiDisk
Media Server
Time Machine
Samba Server
FTP Server
Shared Folder privileges |
