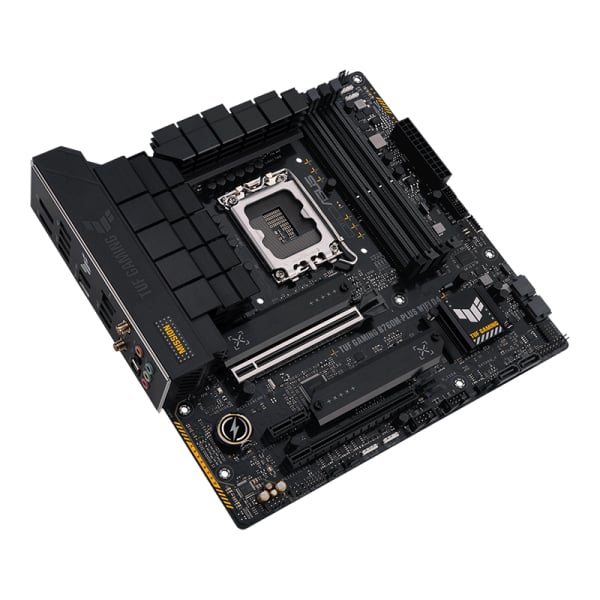

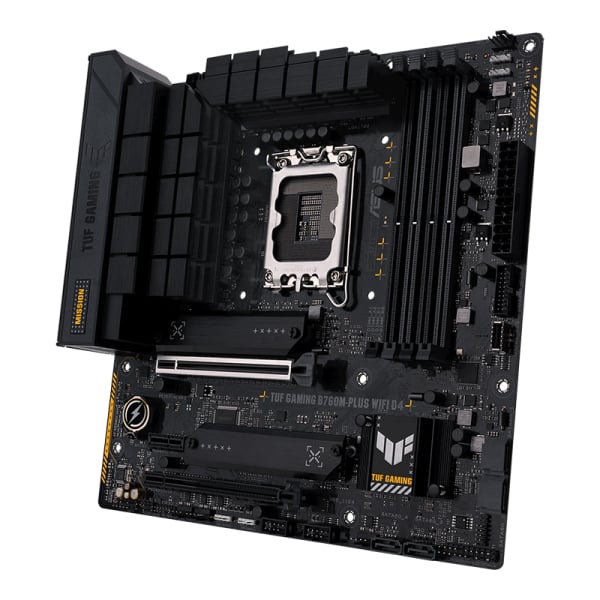

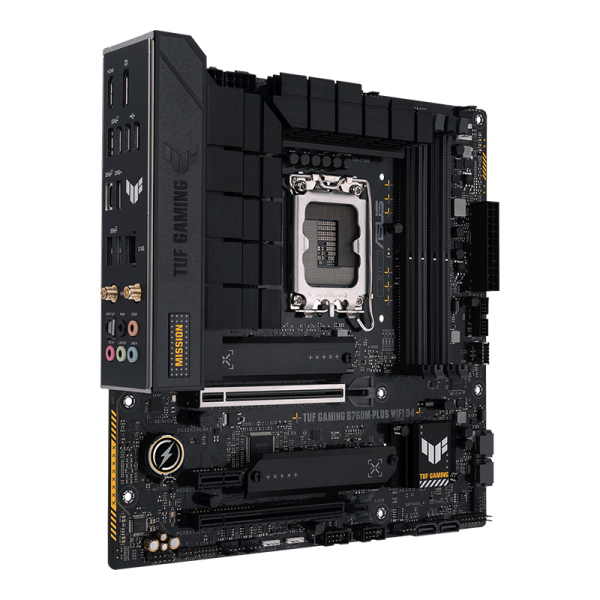

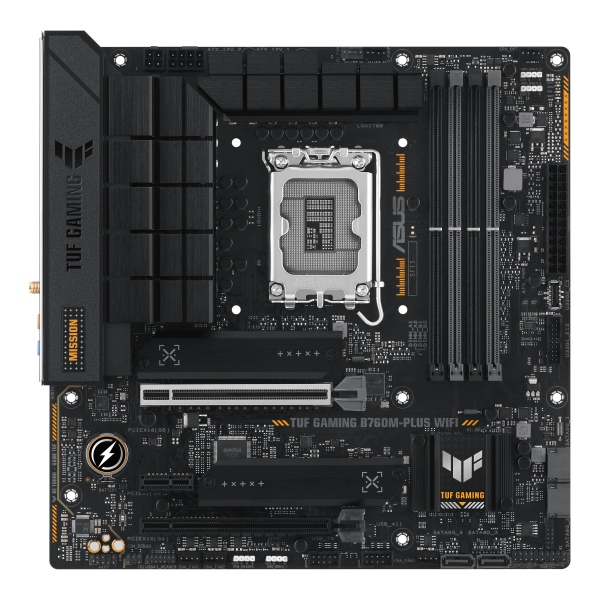

Asus TUF Gaming B760M-PLUS WiFi Motherboard

Sku: TUF GAMING B760M-PLUS WIFI

Brand: Asus

Category: Intel Boards

$326.70

Shipping Information

Availability: On Order

On Order - These items are sourced upon request and may take longer to deliver. We will confirm availability once your order is received, as some products may occasionally be discontinued or unavailable.

Shipping Calculator

Find

Chipset: Intel B760, RAM Capacity: upto 128GB (32GB each), DIMM Slots: 4, Form Factor: mATX, Operating System Supports: Windows 11/10 64-bit, 03 Years Limited Warranty, TUF GAMING B760M-PLUS WIFI.

-
+

We Accept

Thumbnail 3

Description

Manufacture # Asus | Model # TUF GAMING B760M-PLUS WIFI



TUF GAMING B760M-PLUS WIFI takes all the essential elements of the latest Intel processors and combines them with game-ready features and proven durability. Engineered with military-grade components, an upgraded power solution and a comprehensive cooling system, this motherboard goes beyond expectations with rock-solid performance for marathon gaming.



Features:

  • The TUF GAMING B760M motherboards pack flexible tools to tune every aspect of your system, enabling performance tweaks to expertly match the way you play.
  • The Power Saving function contains several settings that can easily optimize power consumption and maximize energy savings. You can enable a CPU power limit, darken Aura lighting, and set the fan profile to a power saving mode. You can also toggle the Power Saver plan that is built into Microsoft Windows.
  • With upgraded power delivery and comprehensive cooling options to fuel the latest Intel CPUs, plus support for DDR5 memory and PCIe 4.0 storage, the TUF GAMING B760M-PLUS WIFI is the perfect foundation for your next Intel battle rig.
  • 12+1 power stages combining high-side and low-side MOSFETS and drivers into a single package to deliver power, efficiency and stable performance for all compatible Intel processors.
  • The TUF GAMING line offers easy setup for all builders. The TUF GAMING Alliance ecosystem grants compatibility, while Armoury Crate has Fan Xpert 2+, hardware info, Two-Way AI Noise Cancelation, RGB options and peripheral settings. This platform has intuitive tools to build and optimize dream rigs.



Overview:

  • Chipset: Intel B760
  • RAM Capacity: upto 128GB (32GB each)
  • DIMM Slots: 4
  • Form Factor: mATX
  • Operating System Supports: Windows 11/10 64-bit


Manufacturer Warranty: 03 Years Limited Warranty

General

Chipset A chipset is an electronic component in an integrated circuit known as a "Data Flow Management System" that manages the data flow between the processor, memory and peripherals.
Intel B760
Socket A CPU socket or CPU slot contains mechanical components providing mechanical and electrical connections between a processor and PCB. This allows for placing the CPU without soldering.
LGA1700
Support for 13th Gen Intel Core & 12th Gen Intel Core, Pentium Gold and Celeron Processors
BIOS Basic Input/Output System, also known as the System BIOS is firmware used to provide runtime services for operating systems and programs to perform hardware initialization during the booting process.
128 Mb Flash ROM
UEFI AMI BIOS
Unique Features
ASUS TUF PROTECTION
Asus Q-Design
Asus Thermal Solution
Asus EZ DIY
Aura Sync

Memory

RAM Capacity The total memory that can be added to a computer depends on the address registers built into the CPU.
upto 128GB (32GB each)
DIMM Slots DIMM (dual in-line memory module) slots are the place on your motherboard where the RAM goes.
4
RAM Frequency Supports RAM frequency is measured in MHz and usually immediately follows the DDR version in the RAM spec.
DDR5 7200+(OC) / 7000(OC) / 6800(OC) / 6600(OC) / 6400(OC) / 6200(OC) / 6000(OC) / 5800(OC) / 5600 / 5400 / 5200 / 5000 / 4800 Non-ECC, Un-buffered Memory

Onboard Graphics

With HDMI
1 x HDMI port
Supports 4K@60Hz as specified in HDMI 2.1.
With DisplayPort
1 x DisplayPort
Supports max. 4K@60Hz as specified in DisplayPort 1.4.

Wireless Communication

Wi-Fi Wi-Fi is a wireless networking technology that allows devices such as computers, mobile devices, and other equipments to interface with the Internet.
Wi-Fi 6E
2x2 Wi-Fi 6 (802.11 a/b/g/n/ac/ax)
Bluetooth Bluetooth is a wireless technology that enables the exchange of data between devices using wavelength.
5.2

Slots And Ports

Expansion Slots An expansion slot is a socket on the motherboard that is used to insert an expansion card, which provides additional features to a computer such as video, sound, graphics, ethernet or memory.
1 x PCIe 5.0 x16 slot
1 x PCIe 4.0 x16 slot (supports x4 or x4/x4 mode)
M.2_1 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode)
Internal I/O Connectors An I/O (Input/Output) port is a socket on a computer that a cable is plugged into. The port connects the CPU to a peripheral device via a hardware interface or to the network via a network interface.
1 x 4-pin CPU Fan header
1 x 4-pin CPU OPT Fan header
1 x 4-pin AIO Pump header
3 x 4-pin Chassis Fan headers
1 x 24-pin Main Power connector
1 x 8-pin +12V Power connector
1 x 4-pin +12V Power connector
2 x M.2 slots (Key M)
4 x SATA 6Gb/s ports
1 x USB 3.2 Gen 2 connector (supports USB Type-C)
1 x USB 3.2 Gen 1 header supports additional 2 USB 3.2 Gen 1 ports
2 x USB 2.0 headers support additional 4 USB 2.0 ports
3 x Addressable Gen 2 headers
1 x AURA RGB header
1 x Clear CMOS header
1 x Front Panel Audio header (AAFP)
1 x 20-3 pin System Panel header with Chassis intrude function
1 x Thunderbolt (USB4) header
Back Panel Connectors The back or rear panel is the portion of the motherboard that allows you to connect external devices, such as your monitor, speakers, keyboard, mouse etc.
1 x USB 3.2 Gen 2x2 port (1 x USB Type-C)
2 x USB 3.2 Gen 2 ports (2 x Type-A)
3 x USB 3.2 Gen 1 ports (3 x Type-A)
2 x USB 2.0 ports (2 x Type-A)
1 x DisplayPort
1 x HDMI port
1 x Wi-Fi Module
1 x Realtek 2.5Gb Ethernet port
5 x Audio jacks
1 x Optical S/PDIF out port

Software

Operating System Supports An operating system (OS) is system software that manages computer hardware, software resources, and provides common services for computer programs.
Windows 11, Windows 10 64-bit
Bundled Software
Asus Exclusive Software
UEFI BIOS

Physical

Form Factor The motherboard's form factor indicates the shape and size specifications of the board.
mATX
Dimensions
9.6inch x 9.6 inch ( 24.4 cm x 24.4 cm )
