Name: ASUS ProArt B760 Creator D4 LGA1700 DDR4 ATX Desktop Motherboard
Brand: Asus
SKU: PROART B760-CREATOR D4
Price: 449 AUD
Availability: InStock

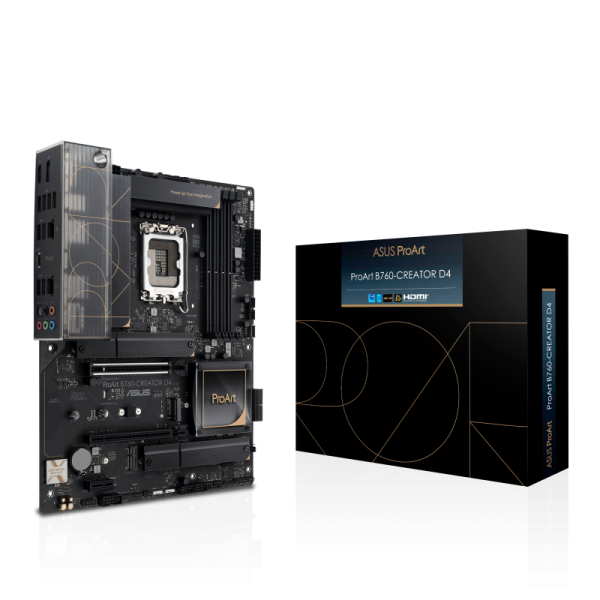

ASUS ProArt B760 Creator D4 LGA1700 DDR4 ATX Desktop Motherboard

SKU : PROART B760-CREATOR D4

Brand : Asus

Estimated Shipping

Find

Description
Specifications
Reviews

Product Description

Manufacture # Asus | Model # PROART B760-CREATOR D4

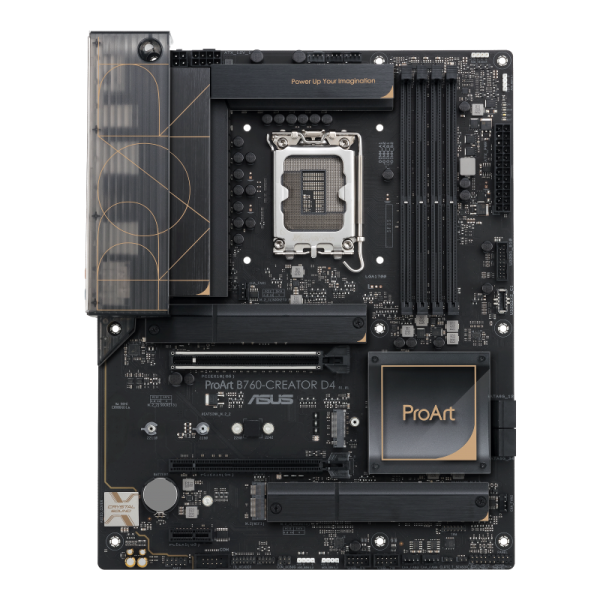

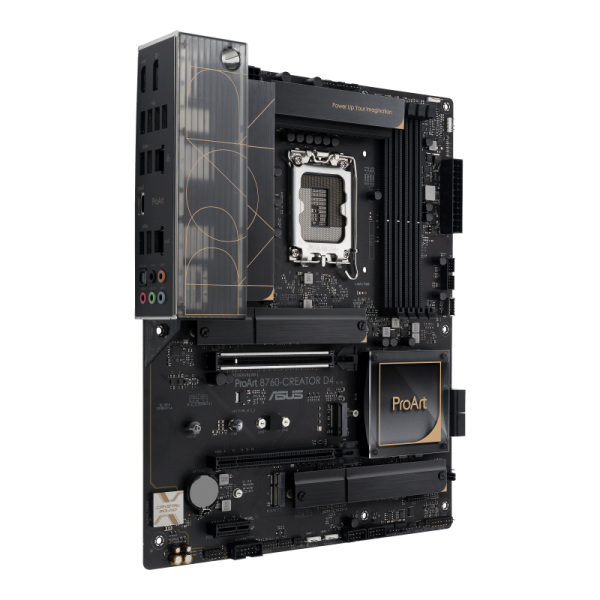

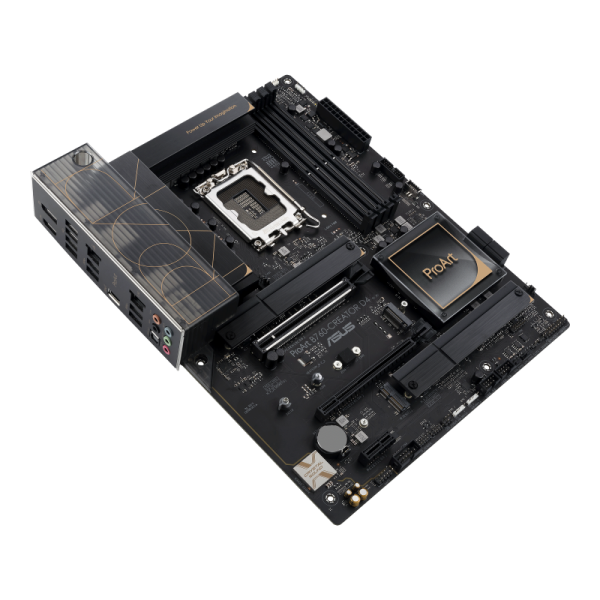

Asus ProArt B760-Creator D4 is an enhanced motherboard designed for content creation workloads like virtual production, 3D rendering and 4K/8K video editing. It unleashes the performance of 13th & 12th Gen Intel Core processors through robust power delivery and cooling design, and its comprehensive connectivity includes three M.2 slots, 2.5 Gb and 1 Gb Ethernet, a USB 3.2 Gen 2x2 Type-C front-panel connector and a ThunderboltTM 4 header.

Features:

PCIe 5.0 for graphics cards
2.5 Gb & 1 Gb Ethernet
USB 3.2 Gen 2 Type-C® and a front-panel USB 3.2 Gen 2x2 Type-C connector?
DDR4 memory support
12+1 teamed power solution rated for 50A per stage
ProArt Creator Hub

Overview:

Chipset: Intel B760
RAM Capacity: upto 128GB (32GB each)
DIMM Slots: 4
Form Factor: ATX
Dimensions: 12 inch x 9.6 inch (30.5 cm x 24.4 cm)

Manufacturer Warranty: 03 Years Limited Warranty

3.5

5	☆
4	☆
3	☆
2	☆
1	☆

Write Review

Expert Reviews (1)

Write Review

Expert Reviews (1)

Ask Question

Questions and Answers

Ask Question

Questions and Answers

Be the first to ask a question

Technical Specifications

General

Chipset

Intel B760

Socket

LGA 1700
Supports 13th & 12th Gen Intel Core, Pentium Gold and Celeron Processors

BIOS

128 Mb

Unique Features

ASUS 5X PROTECTION III
ASUS Q-Design
ASUS Thermal Solution
ASUS EZ DIY
Aura Sync

Memory

RAM Capacity

upto 128GB (32GB each)

DIMM Slots

RAM Frequency Supports

DDR4 Non-ECC, Un-buffered Memory

Onboard Graphics

With HDMI

1 x HDMI ports
Supports 4K@60Hz as specified in HDMI 2.1

With DisplayPort

1 x DisplayPort
Support max. 8K@60Hz as specified in DisplayPort 1.4

Wireless Communication

Wi-Fi

M.2 slot only (Key E, PCIe)* *Wi-Fi module is sold separately.

Bluetooth

Slots And Ports

Expansion Slots

1 x PCIe 5.0/4.0/3.0 x16 slot
1 x PCIe 4.0 x16 slot
1 x PCIe 3.0 x1 slot
M.2_1,2,3 slot (Key M), type 2242/2260/2280/22110 (supports PCIe 3.0 x4 mode)

Internal I/O Connectors

1 x 4-pin CPU Fan header
1 x 4-pin CPU OPT Fan header
1 x 4-pin AIO Pump header
4 x 4-pin Chassis Fan headers
1 x 24-pin Main Power connector
1 x 8-pin +12V Power connector
1 x 4-pin +12V Power connector
3 x M.2 slots (Key M)
4 x SATA 6Gb/s ports
1 x USB 3.2 Gen 2x2 connector (supports USB Type-C®)
1 x USB 3.2 Gen 1 header supports additional 2 x USB 3.2 Gen1 ports
2 x USB 2.0 headers support additional 4 USB 2.0 ports
3 x Addressable Gen 2 headers
1 x AURA RGB header
1 x Clear CMOS header
1 x COM Port header
1 x Front Panel Audio header (AAFP)
1 x M.2 slot (Key E)
1 x SPI TPM header (14-1pin)
1 x 20-5 pin System Panel header
1 x Thermal Sensor header
1 x Thunderbolt™ header

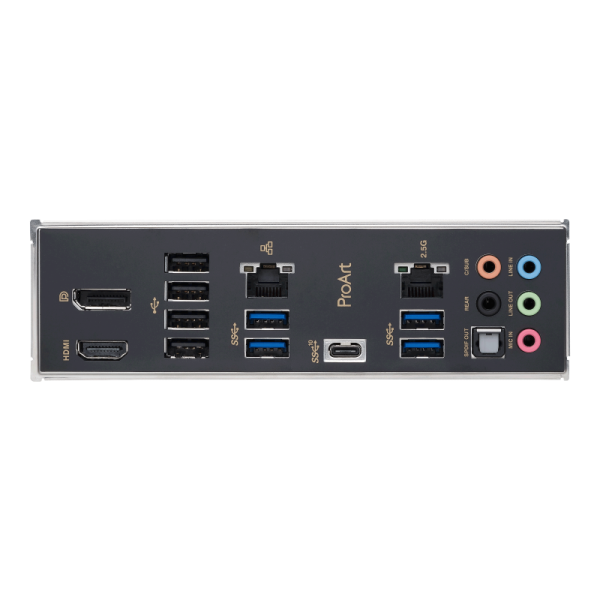

Back Panel Connectors

1 x USB 3.2 Gen 2 port (1 x USB Type-C)
4 x USB 3.2 Gen 1 ports (4 x Type-A)
4 x USB 2.0 ports (4 x Type-A)
1 x DisplayPort
1 x HDMI® port
1 x Realtek 2.5Gb Ethernet port
1 x Intel® 1Gb Ethernet port
5 x Audio jacks
1 x Optical S/PDIF out port
