Image Sensor |
1/2.5 Exmor R CMOS |
Number of Effective Pixels |
Approx. 8.5M pixels |
Signal System |
2160*1 / 29.97p, 25p, 23.98p, 1080/59.94p, 50p, 29.97p, 25p, 23.98p, 1080/59.94i, 50i, 720/59.94p, 50p |
4K Capability |
Yes (requires 4K optional license) |
Minimum Illumination (50IRE) |
1.6 lux (1/30s 50IRE F2 high-sensitivity OFF) |
Horizontal Resolution |
1700 TV lines (Center) (4K*1), 1000 TV lines or higher (Center) (FHD) |
Gain |
Auto/Manual (0 to +48 dB) (High Sensitivity On) |
Shutter Speed |
1/1 to 1/10000 sec (59.94 Hz system), 1/1 to 1/10000 sec (23.98 Hz system), 1/1 to 1/10000 sec (50 Hz system) |
Exposure Control |
Auto, Manual, Priority AE (Shutter, Iris) |
White Balance |
Auto1, Auto2, One Push, WB, Indoor, Outdoor, Manual |
Zoom Capability |
30x (4K*1 with CIZ**), 40x (HD with CIZ)
**CIZ = Clear Image Zoom |
Focusing System |
Auto/Manual |
Horizontal Viewing Angle |
Approx. 70° (Wide) |
Focal Length |
f=4.4 mm (Wide) to 88.0 mm (Tele), F2.0 to F3.8 |
Minimum Object Distance |
80 mm (Wide)~800 mm (Tele) |
Pan/Tilt Angle |
Pan: ±170°, Tilt: +90°/-20° |
Pan/Tilt Speed (Max.) |
Pan: 300°/s, Tilt: 126°/s |
Pan/Tilt Speed |
Pan: 1.1° to 101°/s, Tilt: 1.1° to 91°/s |
Pan/Tilt Speed (Slow) |
Pan: 0.5° to 60°/s, Tilt: 0.5° to 60°/s |
Pan/Tilt Slow Mode |
Yes |
Pan/Tilt Operation Noise |
NC30 or less (Sony measurement conditions) |
Preset Position |
256 (CGI), 100 (VISCA) |
Picture Freeze Preset |
Yes |
PTZ Motion Sync |
Yes |
Network |
IP Video Resolution: 3840x2160 *1, 1920x1080, 1280x720, 720x576, 720x480, 640x360 |
Compression Format |
H.264: High, Main, Baseline Profile, H.265: Main Profile |
Maximum Frame Rate |
H.264: 60 fps, H.265: 60 fps |
Bitrate Compression Mode |
CBR/VBR (selectable) |
Range of Bitrate Setting |
512 Kbps ~50 Mbps |
Multi Streaming Capability |
3 |
Maximum Number of Clients |
5 |
Protocols |
IPv4, IPv6, TCP, UDP, ARP, ICMP, IGMP, HTTP, HTTPS, DHCP, DNS, RTP/RTCP, RTSP, UPnP, VISCA over IP |
NDI®|HX Capability |
Yes (requires a license sold separately) |
Camera Features |
Auto ICR (Auto mode of IR Cut filter Removal), Day/Night, Visibility Enhancer, Image Stabilization, Image Flip, Picture Setting File, Flicker Cancel, Hide OSD Menu, Standby Mode, Remote Standby |
Web UI Version Up |
Yes |
Audio Channel |
2ch |
Audio Codec |
AAC LC 128 kbps/ST (IP), AAC LC 256 kbps/ST (IP) |
Audio Setting Options |
Auto Level Control (ALC): On/Off, Equalizer: Off, Low cut, Voice enhancement, Input selection: Microphone/Line, Mic volume: -10~+10 (21 steps) |
Embedded Audio in Baseband Video |
Yes (3G-SDI, HDMI) |
Embedded Audio in IP Streaming |
Yes |

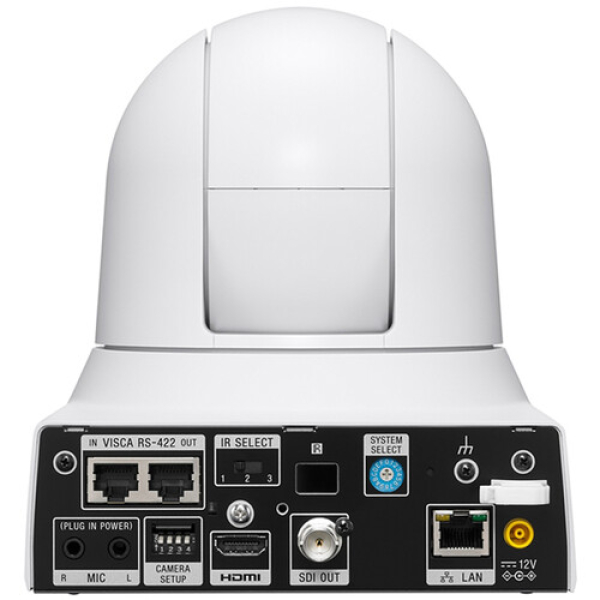

Interface |
4K Video Output: HDMI x1 and IP (streaming) x1 *1, HD Video Output: 3G-SDI x1, HDMI x1, IP (streaming) x1, Remote Video Format Switching: Yes |
HDMI Color Space |
YCbCr, 4:2:2 8 bit, RGB, 4:4:4 8 bit |
Camera Control Interface |
VISCA RS-422 RJ45 (In/Out), VISCA over IP RJ-45 |
IR Remote Control |
Yes |
Microphone Input |
Mini-phone (φ3.5mm) x2 (Mic/Line Selectable) |
Sync. System |
INT |
Power Connector Type |
IEC60130-10 (JEITA standard RC-5320A) TYPE4 |
Power Requirements |
DC 12V (DC 10.8 to 13.2V), PoE+ (IEEE802.3at compliant) |
Power Consumption |
25.5 W Max. |
Operating Temperature |
0 °C to 40 °C (32 °F to 104 °F) |
Storage Temperature |
-20 °C to +60 °C (-4 °F to +140 °F) |
Dimensions (W x H x D) |
158.4 x 177.5 x 200.2 mm (6 1/4 x 7 x 8 inch) |
Mass |
Approx. 1.8 kg (3 lb 15.5 oz) |
Camera Body Color |
White/Black |
Size of Screw Hole for Tripod |
1/4-20UNC x1 |
Mountable Angle |
< ±15° |
Ceiling Mount |
Yes |
