Name: Sony BRC-H800 HD PTZ Camera with 1 CMOS Sensor and PoE+ Black
Brand: Sony
SKU: BRC-H800
Price: 14850 AUD
Availability: InStock

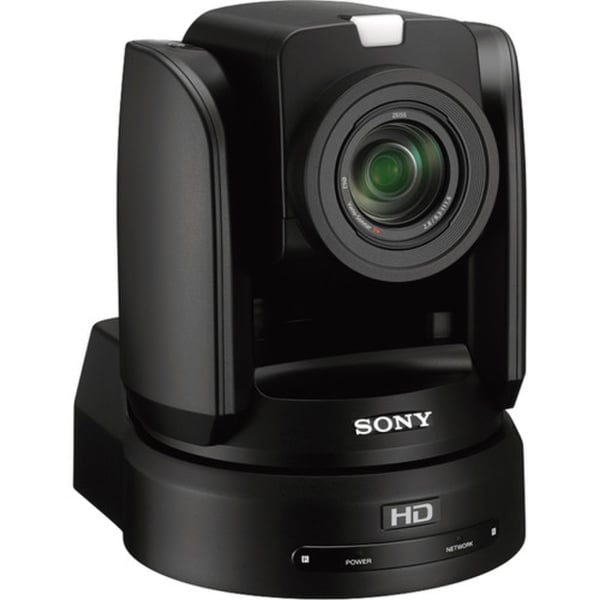

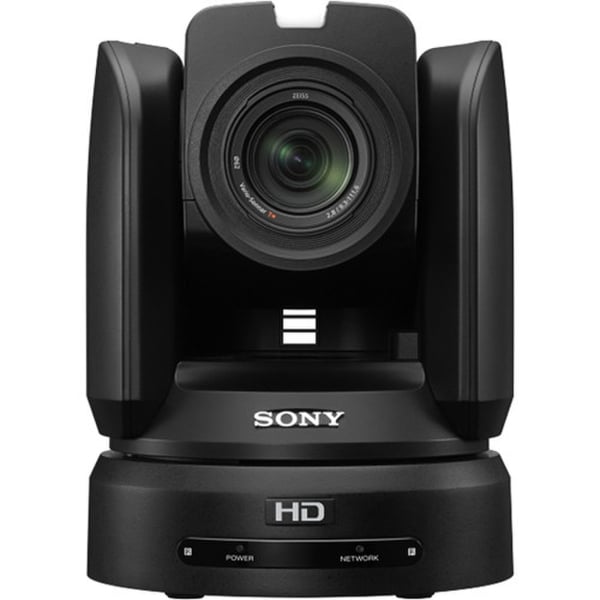

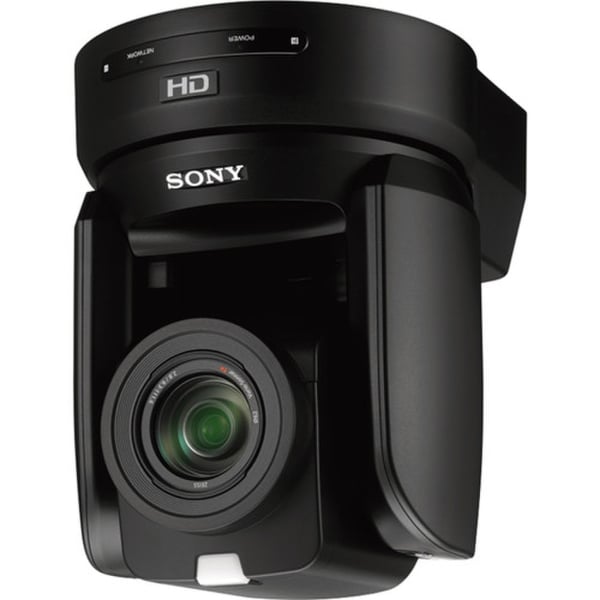

Sony BRC-H800 HD PTZ Camera with 1" CMOS Sensor and PoE+ Black

SKU : BRC-H800

Brand : Sony

Availablity : on order
On Order items usually have to be ordered in and may take bit longer to get them delivered from our Seven Hills, NSW warehouse

Estimated Shipping

Find

Description
Specifications
Reviews

Product Description

Manufacture: Sony | Model: BRC-H800

The Full HD PTZ Camera is a professional-grade imaging solution designed for high-quality video production, live broadcasting, and surveillance. Equipped with a 1.0-type back-illuminated Exmor R CMOS sensor, it delivers exceptional Full HD resolution with approximately 14.2 megapixels of effective image capture. Featuring a 12x optical zoom and 2x Clear Image Zoom, it ensures sharp, detailed visuals across various focal lengths. The camera supports multiple video formats, including 1080p at 59.94fps, 1080i at 50fps, and 720p at 50fps, making it highly versatile for professional use. With an advanced PTZ mechanism offering a ±170° pan and +90°/-30° tilt range, it provides smooth and precise movement. The camera features multiple connectivity options, including 3G-SDI, HDMI, and VISCA over IP for seamless integration into broadcasting and security setups. Enhanced by Wide Dynamic Range (WDR), multiple gamma settings, and an ND filter, it adapts to diverse lighting conditions. Designed for efficiency, it supports PoE+ for simplified installation and offers remote control via RS-422 and IP.

Key Features:

1.0-type Exmor R CMOS sensor with 14.2MP effective pixels for superior image quality
Supports Full HD 1080p at 59.94fps for professional video production
12x optical zoom with 2x Clear Image Zoom for enhanced magnification
Wide Dynamic Range (WDR) and multiple gamma settings for optimal exposure
PTZ functionality with ±170° pan and +90°/-30° tilt range
Multiple connectivity options including 3G-SDI, HDMI, and VISCA over IP
PoE+ (IEEE 802.3at compliant) for streamlined installation and power management
Advanced exposure control with auto, manual, and priority modes
ND filter with multiple levels (Off, 1/4, 1/16, 1/64) for light control
Includes IR remote, ceiling mount brackets, and HDMI cable fixing plate

Technical Specifications

Image Sensor	1.0-type back-illuminated Exmor R CMOS sensor
Image Sensor (Number of Effective Pixels)	Approx. 14.2 Megapixels
Image Sensor (Total Number of Pixels)	Approx. 20.4 Megapixels
Signal System	1080/59.94p, 1080/59.94i, 720/59.94p, 1080/50p, 1080/50i, 720/50p, 1080/23.98p
Minimum Illumination (50IRE)	1.7 lux (50IRE, F2.8, 1/30s, Max.Gain)
Horizontal Resolution	850 TV line (in 3G-SDI output) (center)
Gain	Auto/Manual (-3dB to +33dB)
Shutter Speed	1/10000s to 1/8 (59.94/29.97), 1/10000s to 1/6 (50/25/23.98)
Exposure Control	Auto, Manual, Priority mode (shutter priority, iris priority, gain priority), Back light, Spot light
White Balance	Auto1/Auto2/One Push/Indoor/Outdoor/Manual
Optical Zoom	12x
Clear Image Zoom	2x
Digital Zoom	No
Tele Convert Mode	Off, 2x (1920x1080 only)
Focusing System	Auto/Manual
Horizontal Viewing Angle	64.6° (Wide-end)
Focal Length	f=9.3 to 111.6mm F2.8(Wide), F4.5(Tele)
Minimum Object Distance	1000mm (Tele), 80mm (Wide)
Pan/Tilt Angle	Pan: ±170°, Tilt: +90°/-30°
Pan/Tilt Speed	Pan: 0.3° to 60°/s 1, Tilt: 0.3° to 60°/s 1
Pan/Tilt Slow Mode	Yes
Pan/Tilt Operation Noise	NC30 or less (Sony measurement conditions)
Preset Position	100
PTZ Trace Memory	16
PTZ Motion Sync	Yes
Camera Tracking Data Output	Yes (Requires firmware V2.10)
Camera Features	Day/Night, Visibility Enhancer, Image Flip On/Off, Picture Profile Preset
ND Filter	Off, 1/4, 1/16, 1/64 switchable in menu
Color Gain	Yes (15 step)
Color Hue	Yes (15 step)
Color Matrix	Off/Standard/High Saturation/FL light/MOVIE/STILL/CINEMA/PRO/ITU709/BW
Gamma	Standard/Straight/MOVIE/STILL/CINE1/CINE2/CINE3/CINE4/ITU709/Pattern
Gamma Level	Yes (15 step)
Black Level	Yes (97 step)
Black Gamma	Yes (15 step)
Knee Point	Yes (13 step)
Knee Slope	Yes (15 step)
Flicker Cancel	On/Off
Interface	4K Video Output: No, HD Video Output: 3G-SDI x2 and HDMI
HDMI Color Space	YCbCr, 4:2:2, RGB, 4:4:4
Camera Control Interface	VISCA RS-422, RJ45 (In/Out), VISCA over IP RJ45
External Sync. Input	BNC, 75Ω, HD 3-level sync, SD Black Burst
Power Connector Type	IEC60130-10 (JEITA standard RC-5320A) TYPE4
Power Requirements	DC 10.8V to 13.2V, PoE+ (IEEE802.3at compliant)
Power Consumption	DC12 V: 19.0 W (Max), PoE+: 23.0 W (Max)
Operating Temperature	0 °C to 40 °C (32 °F to 104 °F)
Storage Temperature	-20 °C to +60 °C (-4 °F to +140 °F)
Dimensions (W x H x D)	Approx. 198 x 260 x 238mm (without projecting object), Approx. 7 7/8 x 10 1/4 x 9 3/8 inch (without projecting object)
Mass	Approx. 4.3kg (Approx. 9 lb 7.7oz)
Optional Card Slots	Not needed
Body Color	Black and White
Size of Screw Hole for Tripod	1/4-20UNC x2
Mountable Angle	Less than ±15 degrees
Ceiling Mount	Yes
Supplied Accessories	IR Remote Commander Unit (1), Ceiling bracket (2), Wire rope (1), Screws(M3 x 8) (7), Screws(M4 x 8) (1), HDMI cable fixing plate (1)
