Sony Compact 4K 60p BOX-style remote camera with 25x optical zoom

SKU : SRG-XB25
Brand : Sony
Availablity : on order
On Order items usually have to be ordered in and may take bit longer to get them delivered from our Seven Hills, NSW warehouse
Image: Sensor1/2.5 CMOS, Shutter Speed: 1/10000s to 1/1s, Optical Zoom: 25x (4K), Digital Zoom: up to 3x pixel zoom, 2x digital zoom, Horizontal Viewing angle: Approx. 68°, Minimum Object Distance: 1500 mm (WIDE/TELE), 02 Years Limited Warranty, SRG-XB25.
Ask a question about this product
$3,992.00

Estimated Shipping

Pay what you see.

No surcharge On Credit Card, AMEX or Paypal. American express, master card, nab, Paypal, visa

Share

  • Description
  • Specifications
  • Reviews

Product Description

Manufacture # Sony | Model # SRG-XB25

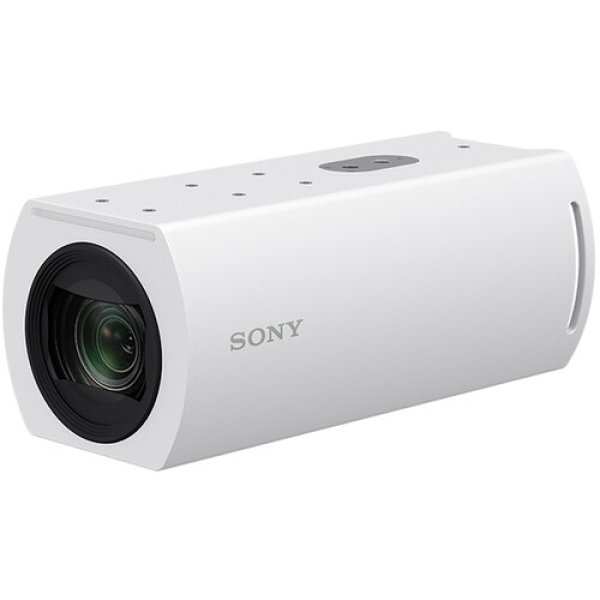

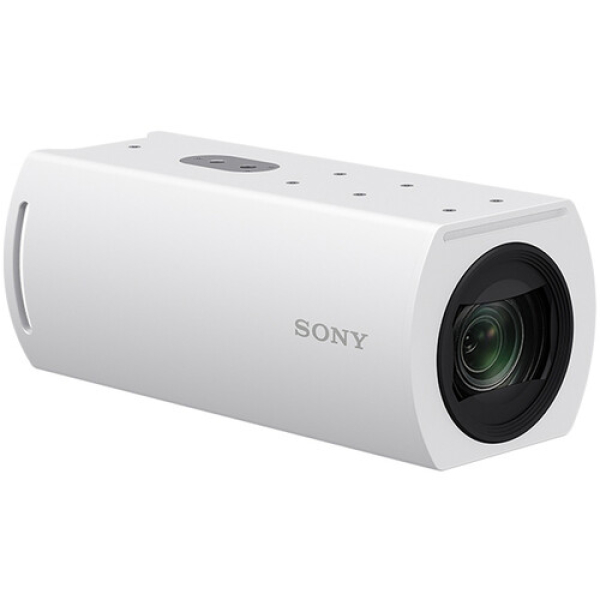

The SRG-XB25 high-zoom BOX camera draws on decades of Sony’s professional imaging know-how to suit a wide range of content creation applications. It’s ideal for capturing and streaming impressive 4K pictures in environments including seminar rooms, lecture theatres, virtual production studios, government/parliament buildings and houses of worship.


Features:

  • Measuring just 80.1 × 70.9 × 177.2 mm and weighing 0.87 kg, the SRG-XB25 can be readily integrated into any environment. Upper and lower tripod mounts increase installation flexibility. Rear panel guards assure extra robustness, and the large, easy-to-read tally lamp is useful in multiple camera set-ups.

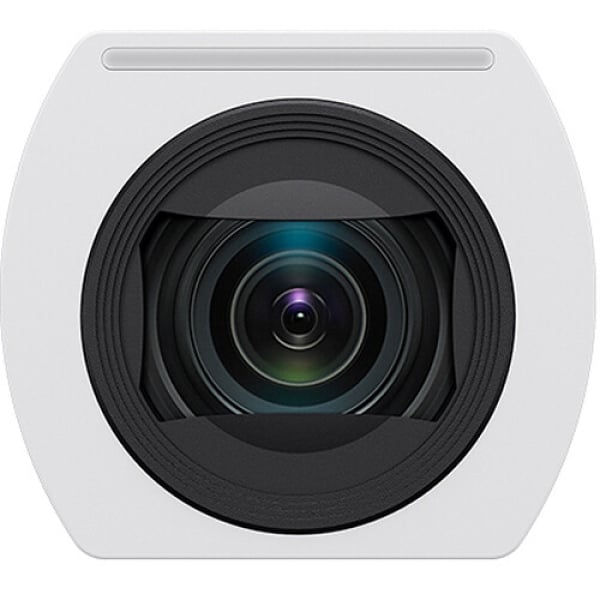

  • The integrated autofocus lens with 25x optical zoom plus additional digital zoom assures ultra-clear, powerful close-ups of presenters or audience members.
  • The camera’s 1/2.5-type Exmor R CMOS sensor captures smooth, crisply detailed 4K 60p video with excellent low-light sensitivity.?
  • Camera control, PoE and streaming video output are carried over a single Ethernet cable, reducing installation costs and simplifying integration in space-restricted or hard-to-reach locations. Full IP integration includes support for Real Time Streaming Protocol (RTSP), Real Time Messaging Protocol (RTMP) and Secure Reliable Transport (SRT). Support for NDI |HX is also available via an optional licence.
  • Connect an external microphone or line-level source to capture clear pictures plus sound in lecture theatres and meeting rooms or on reality TV shows.



Overview:

  • Image: Sensor1/2.5 CMOS
  • Shutter Speed: 1/10000s to 1/1s
  • Optical Zoom: 25x (4K)
  • Digital Zoom: up to 3x pixel zoom, 2x digital zoom
  • Horizontal Viewing angle: Approx. 68°
  • Minimum Object Distance: 1500 mm (WIDE/TELE)



Manufacturer Warranty: 02 Years Limited Warranty

Technical Specifications

Spec :-
Image Sensor1/2.5 CMOS
Image Sensor (Number of Effective Pixels) Approx. 8.40 Megapixels
Signal System 3840×2160/59.94p
3840×2160/29.97p
1920×1080/59.94p
1920×1080/59.94i
1920×1080/29.97p
1280×720/59.94p
1280×720/29.97p
640×360/59.94p
640×360/29.97p
3840×2160/50p
3840×2160/25p
1920×1080/50p
1920×1080/50i
1920×1080/25p
1280×720/50p
1280×720/25p
640×360/50p
640×360/25p
640×480/59.94p *1
*1 HDMI output only.
Minimum Illumination (50IRE) 0.8 lux (4K output, 50 IRE, 1/30s)
Shutter Speed 1/10000s to 1/1s
Optical Zoom 25x (4K)
Digital Zoom up to 3x pixel zoom, 2x digital zoom
Horizontal Viewing angle Approx. 68°
Focal Length f =4.8 mm to 120 mm
F1.6 to F3.4
f = 28 mm to 694 mm
(35 mm camera equivalent)
Minimum Object Distance 1500 mm (WIDE/TELE)
Number of preset 256 (CGI/VISCA)
Camera Features :-
Day/Night Yes
Image Flip Yes
Tally Lamp Yes
IP Compression Format ITU-T H.264/H.265
Bitrate Compression Mode CBR/VBR (selectable)
NDI|HX Capability Yes (requires a license; sold separately)
Audio Channel 1 ch
Audio Codec AAC LC 256 kbps/ST (IP)
AAC LC 128 kbps/ST (IP)

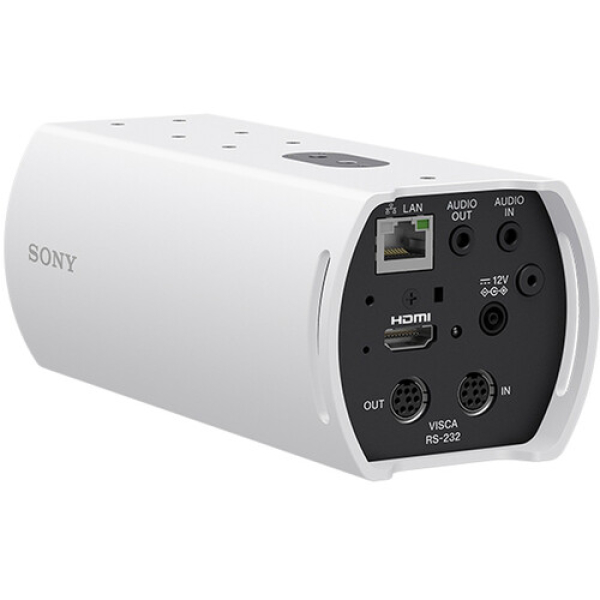

Interface :-
Video Output HDMI
HDMI Color Space YUV, 4:2:2 8-bit
YUV, 4:2:0 8-bit
RGB, 4:4:4 8-bit
Audio Output Mini jack ø3.5
Camera Control Interface VISCA, VISCA over IP, CGI
Audio Input Mini jack ø3.5(Plug-in-Power supported)
Power terminal IEC60130-10 (JEITA standard RC-5320A) TYPE 4
General :-
Power Requirements DC 12 V (AC adapter 100 V to 240 V, 50/60 Hz), PoE (IEEE802.3af compatible)
Power Consumption DC 12 V:11.0 W
PoE input:12.9 W
Operating Temperature 0 °C to 40 °C (32 °F to 104 °F)
Storage Temperature –20 °C to +60 °C (–4 °F to +140 °F)
Dimensions (W x H x D) 80.1 × 70.9 × 177.2 mm
Weight Approx. 0.87 kg (1 lb 15 oz)
Color White
Size of Screw Hole for Tripod 4.5 mm to 6 mm (3/16 in. to 1/4 in.)
Mountable Angle Less than ±45 degrees to the horizontal
Ceiling Mount Yes
Supplied Accessories Safety Regulations (1)
AC adapter (1)
Wire rope (1)
Mounting screws (M3×8) (1)
Mounting screws (M2.6×6 black) (1)
HDMI cable fixing plate (1)
