Name: Sony 4K Pan Tilt Zoom camera with 1.0-type Exmor R CMOS sensor - with power supply
Brand: Sony
SKU: BRC-X1000KIT
Price: 17141 AUD
Availability: InStock

Sony 4K Pan Tilt Zoom camera with 1.0-type Exmor R CMOS sensor - with power supply

SKU : BRC-X1000KIT

Brand : Sony

Estimated Shipping

Find

Description
Specifications
Reviews

Product Description

Manufacture: Sony | Model: BRC-X1000KIT

The 4K PTZ Camera is a professional-grade imaging solution designed for high-quality video production, live broadcasting, and surveillance. Equipped with a 1.0-type back-illuminated Exmor R CMOS sensor, it delivers exceptional 4K resolution with approximately 14.2 megapixels of effective image capture. Featuring a 12x optical zoom and Clear Image Zoom (2x at HD, 1.5x at 4K), it provides sharp, detailed visuals even at extended focal lengths. The camera supports multiple video formats, including 4K at 29.97p and Full HD at 59.94p, ensuring compatibility with various broadcasting standards. With an advanced PTZ mechanism offering a ±170° pan and +90°/-30° tilt range, this camera delivers precise and smooth movement, making it ideal for live events and studio production. It features multiple connectivity options, including Dual Link 3G-SDI, HDMI, and VISCA over IP for seamless integration into professional setups. Enhanced by WDR, multiple gamma settings, and an ND filter, it excels in diverse lighting conditions. Designed for efficiency, it supports PoE+ for simplified installation and offers remote control via RS-422 and IP.

Key Features:

1.0-type Exmor R CMOS sensor with 14.2MP effective pixels for superior image quality
Supports 4K (29.97p) and Full HD (59.94p) resolutions for professional broadcasting
12x optical zoom with Clear Image Zoom for enhanced magnification
Wide dynamic range (WDR) and multiple gamma settings for optimal exposure
PTZ functionality with ±170° pan and +90°/-30° tilt range
Multiple connectivity options including Dual Link 3G-SDI, HDMI, and VISCA over IP
PoE+ (IEEE 802.3at compliant) for streamlined installation and power management
Advanced exposure control with auto, manual, and priority modes
ND filter with multiple levels (Off, 1/4, 1/16, 1/64) for light control
Includes IR remote, ceiling mount brackets, and HDMI cable fixing plate

Technical Specifications

Image Sensor	1.0-type back-illuminated Exmor R CMOS sensor
Image Sensor (Number of Effective Pixels)	Approx. 14.2 Megapixels
Image Sensor (Total Number of Pixels)	Approx. 20.4 Megapixels
Signal System	2160/29.97p, 1080/59.94p, 1080/59.94i, 720/59,94p, 2160/25p, 1080/50p, 1080/50i, 720/50p, 2160/23.98p, 1080/23.98p
Minimum Illumination (50IRE)	1.7 lux (50IRE, F2.8, 1/30s, Max.Gain)
Horizontal Resolution	1800 TV line (in 3G-SDI output) (center)
Gain	Auto/Manual (-3dB to +33dB)
Shutter Speed	1/10000s to 1/8 (59.94/29.97), 1/10000s to 1/6 (50/25/23.98)
Exposure Control	Auto, Manual, Priority mode (shutter priority, iris priority, gain priority), Back light, Spot light
White Balance	Auto1/Auto2/One Push/Indoor/Outdoor/Manual
Optical Zoom	12x
Clear Image Zoom	2x *1.5x at 4K resolution
Digital Zoom	No
Tele Convert Mode	Off, 2x (1920x1080 only)
Focusing System	Auto/Manual
Horizontal Viewing Angle	64.6° (Wide-end)
Focal Length	f=9.3 to 111.6mm F2.8(Wide), F4.5(Tele)
Minimum Object Distance	1000 mm(Tele), 80 mm(Wide)
Pan/Tilt Angle	Pan: ±170°, Tilt: +90°/-30°
Pan/Tilt Speed	Pan: 0.3° to 60°/s 1, Tilt: 0.3° to 60°/s 1
Pan/Tilt Slow Mode	Yes
Pan/Tilt Operation Noise	NC30 or less (Sony measurement conditions)
Preset Position	100
PTZ Trace Memory	16
PTZ Motion Sync	Yes
Camera Tracking Data Output	Yes (Requires firmware V2.10)
Camera Features	Day/Night, Visibility Enhancer, Image Flip On/Off, Picture Profile Preset
ND Filter	Off, 1/4, 1/16, 1/64 switchable in menu
Color Gain	Yes (15 step)
Color Hue	Yes (15 step)
Color Matrix	Off/Standard/High Saturation/FL light/MOVIE/STILL/CINEMA/PRO/ITU709/BW
Gamma	Standard/Straight/MOVIE/STILL/CINE1/CINE2/CINE3/CINE4/ITU709/Pattern
Gamma Level	Yes (15 step)
Black Level	Yes (97 step)
Black Gamma	Yes (15 step)
Knee Point	Yes (13 step)
Knee Slope	Yes (15 step)
Flicker Cancel	On/Off

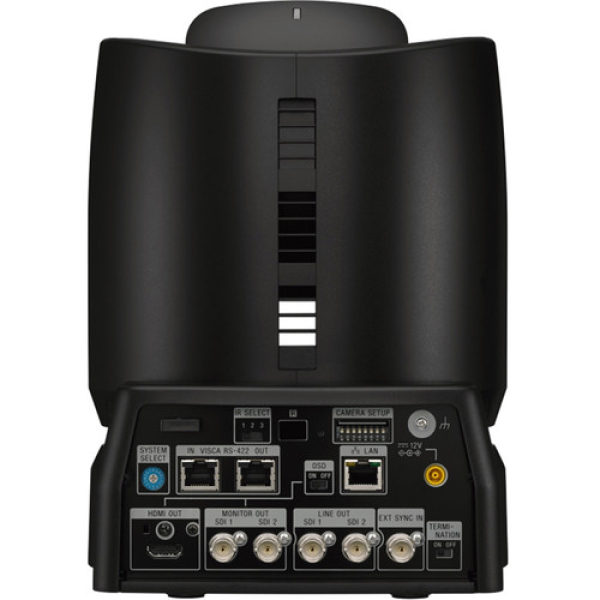

Interface	4K Video Output: Dual Link 3G-SDI x2 and HDMI, HD Video Output: 3G-SDI x4 and HDMI
HDMI Color Space	YCbCr, 4:2:2, RGB, 4:4:4
Camera Control Interface	VISCA RS-422, RJ45 (In/Out), VISCA over IP RJ45
External Sync. Input	BNC, 75Ω, HD 3-level sync, SD Black Burst
Power Connector Type	IEC60130-10 (JEITA standard RC-5320A) TYPE4
Power Requirements	DC 10.8V to 13.2V, PoE+ (IEEE802.3at compliant)
Power Consumption	DC12 V: 21.5 W (Max), PoE+: 25.5 W (Max)
Operating Temperature	0 °C to 40 °C (32 °F to 104 °F)
Storage Temperature	-20 °C to +60 °C (-4 °F to +140 °F)
Dimensions (W x H x D)	Approx. 198 x 260 x 238mm (without projecting object), Approx. 7 7/8 x 10 1/4 x 9 3/8 inch (without projecting object)
Mass	Approx. 4.3kg (Approx. 9 lb 7.7oz)
Optional Card Slots	Not needed
Body Color	Black and White
Size of Screw Hole for Tripod	1/4-20UNC x2
Mountable Angle	<±15°
Ceiling Mount	Yes
Supplied Accessories	IR Remote Commander Unit (1), Ceiling bracket (2), Wire rope (1), Screws(M3 x 8) (7), Screws(M4 x 8) (1), HDMI cable fixing plate (1)
