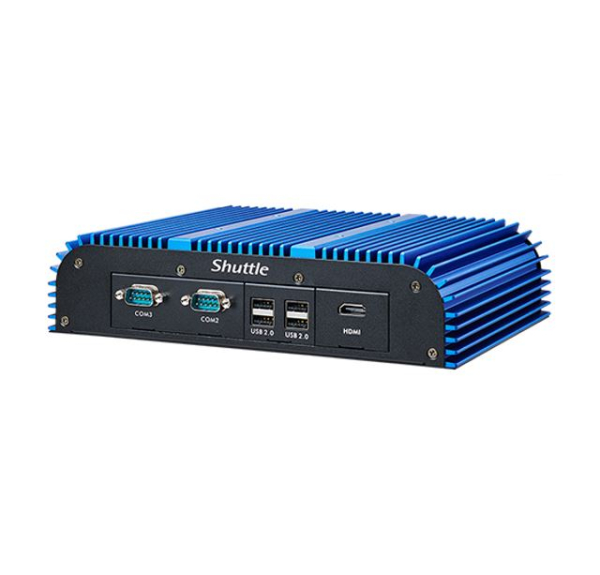

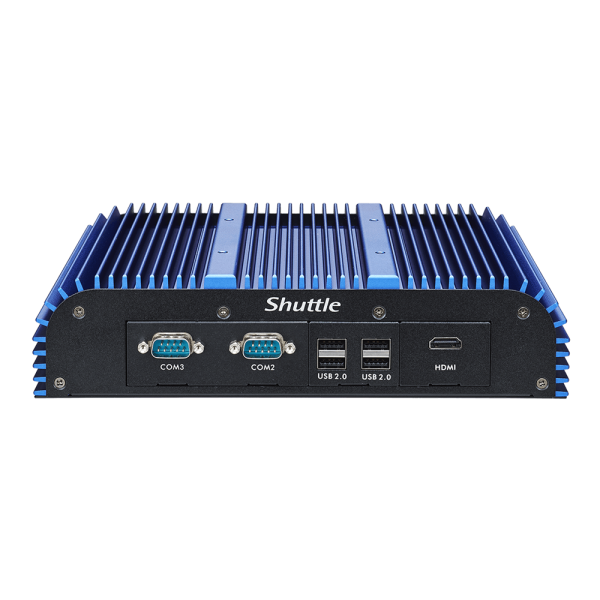

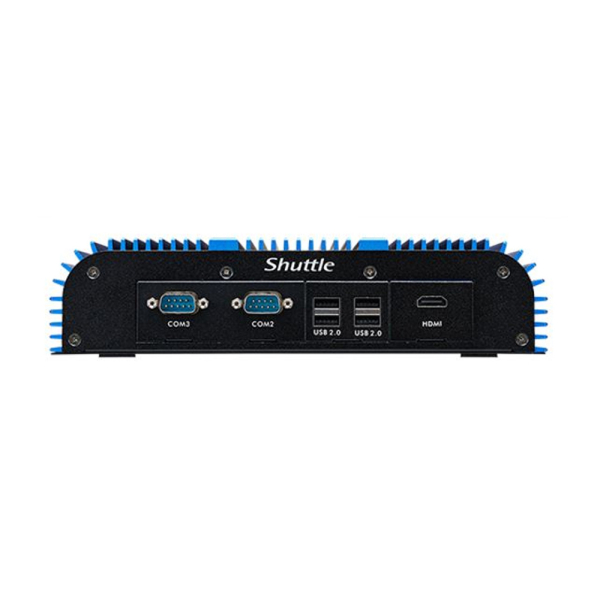

Shuttle BPCWL03 i5-8365UE Embedded Box

SKU : BPCWL03
Brand : Shuttle
Availablity : on order
On Order items usually have to be ordered in and may take bit longer to get them delivered from our Seven Hills, NSW warehouse
Memory: 64GB SO-DIMM, Pin: 260, Graphics: Intel UHD Graphics, Storage Internal: 1 x M.2 2280 M key, Ethernet: 2 x Intel Gigabit LAN, Mounting: VESA Mount 75 x 75 mm, Warranty: 01 Year, BPCWL03
Ask a question about this product
$2,113.00

Estimated Shipping

For Bulky items and non-metro Australia a different shipping will be quoted on order receipt.

No surcharge On Credit Card, AMEX or Paypal. American express, master card, nab, Paypal, visa

Share

  • Description
  • Specifications
  • Reviews

Product Description

Manufacture # Shuttle | Model # BPCWL03



Shuttle is designed with Intel Whiskey Lake-U/UE platform, supporting a series of Core and Celeron processors with up to 64GB DDR4-2400MHz RAM that enables reliable performance for graphics-intensive industrial application needs. It is suitable for harsh operating conditions with an extended operating temperature range of -20° C to +60°C on a fanless design.



Overview:

  • Memory: 64GB SO-DIMM
  • Pin: 260
  • Graphics: Intel UHD Graphics
  • Storage Internal: 1 x M.2 2280 M key
  • Ethernet: 2 x Intel Gigabit LAN
  • Mounting: VESA Mount 75 x 75 mm



Manufacturer Warranty: 01 Year Limited Warranty

Technical Specifications

Processor 8th Gen. Intel Whiskey Lake-U Processors
Intel Core i3-8145UE Processor, Dual Core, 4M Cache, 2.2GHz (3.9GHz), 15W (default)
Intel Core i5-8265U Processor, Quad Core, 6M Cache, 1.6GHz (3.9GHz), 15W (optional)
Intel Core i5-8365UE vPro Processor, Quad Core, 6M Cache, 1.6GHz (4.1GHz), 15W (optional)
Intel Core i7-8565U Processor, Quad Core, 8M Cache, 1.8GHz (4.6GHz), 15W (optional)
Intel Core i7-8665UE vPro Processor, Quad Core, 8M Cache, 1.7GHz (4.4GHz), 15W (optional)
Intel Celeron 4305UE Processor, Dual Core, 2M Cache, 2GHz, 15W (optional)
Memory 2 x 260 pin SO-DIMM up to 64GB
Dual Channel DDR4 2666MHz
BIOS AMI UEFI 64 Mbit
Graphics:-
Chipset Intel UHD Graphics
Display Interface 2 x HDMI 1.4b: 4096 x 2160@30Hz
Supports dual displays
Storage Internal 1 x M.2 2280 M key (PCIe NVMe / SATA)
Audio Codec Realtek ALC662 2-channel
Network:-
Ethernet 2 x Intel Gigabit LAN
WLAN Intel WiFI Module (802.11 a/b/g/n/ac) & BT 5.0 (Option)
Realtek RTL8821CE 802.11a/b/g/n/ac + Bluetooth 4.2 WLAN card M.2 2230 E key (Option)
External antenna (Dipole) x2 (Option)
I/O Interface:-
LAN 2 x RJ-45 (10/100/1000Mbps)
Supports Wake On LAN
Serial Ports 1 x RS-232 (DB-9)
2 x RS-232/422/485 (DB-9) (RS-232 with power supply: ring in/ 5V (standard) &12V (with specific optional board))
USB 4 x USB3.2 Gen 1 (Type A)
4 x USB2.0
Audio 1 x Line-out
1 x Mic-in
Power:-
Type 19V (without wide range board)
With wide range board, MB support 9-36V DC-in
Adapter 19V/7.89A 150W external adapter
Watchdog Support watchdog
OS Support Windows 10/11 Embedded 64bit
Linux 64bit
Mechanism:-
Mounting VESA Mount 75 x 75 mm
Ear Mount 256 x 100 mm
Din Rail
Dimension (WxHxD) 245mm x 57mm x 169mm
Weight 2.85 kg
Environment:-
Operating Temperature -20°C ~ 60°C
Relative Humidity 20% - 80% RH (non-condensing)
EMC FCC Class A, CE Mark, VCCI, RCM
Safety CB, cTUVus
