Shuttle DS20U5 Intel i5-10210U 4.20GHz Fanless Barebone PC

SKU : DS20U5
Brand : Shuttle
Availablity : on order
On Order items usually have to be ordered in and may take bit longer to get them delivered from our Seven Hills, NSW warehouse
Processor: Intel Core i5-10210U (ULV), Memory: 2x SO-DIMM slot with 260 pins, Expansion Slot: 1x M.2-2230E slot for WLAN cards, Storage Interface: 6.0Gb/s bandwidth SATA3, OS Support: Windows 10/11, Warranty: 03 Years, DS20U5.
Ask a question about this product
$1,394.00

Estimated Shipping

For Bulky items and non-metro Australia a different shipping will be quoted on order receipt.

No surcharge On Credit Card, AMEX or Paypal. American express, master card, nab, Paypal, visa

Share

  • Description
  • Specifications
  • Reviews

Product Description

Manufacture # Shuttle | Model # DS20U5

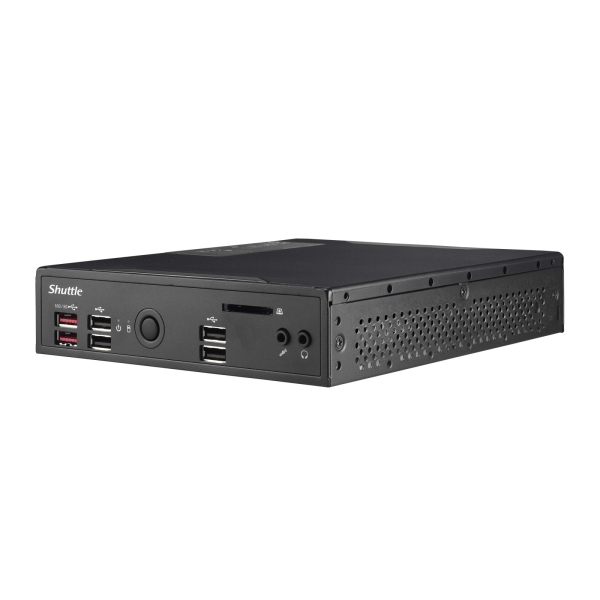

The DS20U-series is a fanless slim PC with a robust 1.3-litre metal chassis and exceptional connectivity. It supports two digital video outputs for UHD/4K displays and one tradi-tional D-Sub/VGA connector. The built-in Intel "Comet-Lake-U" processor provides ample performance for playback of 2160p/60 videos. Installation of components goes straight forward, as there is plenty of interior space for two memory modules, one 2.5" drive and an M.2-2280 SSD card. Optionally, an LTE module can be fitted in the 2,5" bay using the WWN03 accessory. Thanks to its passive cooling, the system is virtually maintenance-free and is approved for 24/7 nonstop operation. It is big on performance, yet extremely energy-efficient. The Shuttle XPC slim Barebone DS20U series is an ideal platform for professional applications such as digital signage, POS, Kiosk, Thin Client, Office PC and Multimedia.



Features:

  • Intel Core i5-10210U (up to 4.20 GHz, 4 cores, 8 threads, 6 MB cache)
  • Intel UHD Graphics
  • Up to 64 GB of DDR4 memory
  • 1x NVMe, 1x SATA 2.5", card reader
  • 1x HDMI 2.0b, 1x DisplayPort 1.2, 1x VGA
  • Two M.2 slots (1x M.2-2280, 1x M.2-2230)
  • 2x Gigabit Ethernet, WLAN-ready, 4G-ready
  • 4x USB 3.2 Gen 2 (10 Gbit), 4× USB 2.0, 1x COM
  • Remote power-on connector, always-on jumper
  • Wall/VESA mount included
  • Optional DIN-Rail/19” mount



Overview:

  • Processor: Intel Core i5-10210U (ULV)
  • Memory: 2x SO-DIMM slot with 260 pins
  • Expansion Slot: 1x M.2-2230E slot for WLAN cards
  • Storage Interface: 6.0Gb/s bandwidth SATA3
  • OS Support: Windows 10/11



Manufacturer Warranty: 03 Years Limited Warranty

Technical Specifications

Fanless and Silent Passive cooling, no fan noise at all
Perfect to be used in noise-sensitive environments
Fanless, dust-free and thus virtually maintenance-free
Low Power Consumption Power consumption in idle mode with 2.5" SSD under Windows 10: ca. 6 W only
24/7 Nonstop Operation This device is approved for 24/7 permanent operation.
Requirements:
- Free circulation of air amongst the PC must be guaranteed.
- Ventilation holes must stay clear.
- If a hard disk is installed, this must also be approved for permanent operation by its manufacturer
Chassis Slim-PC with black steel chassis
Without cooling fan, passive cooling only
The bays for memory, 2.5" drive and M.2 card
can easily be accessed by removing two cover plates.
Dimensions: 200 x 165 x 39.5 mm (LWH) = 1.3 litres
Weight: 1.5 kg net and 2.2 kg gross
Two holes for Kensington Lock and numerous
threaded holes (M3) at both sides of the chassis
Operating Position 1) Vertical: Usual operating position with the supplied feet (DisplayPort output facing up).
2) VESA-mounted: The device can also be mounted behind an appropriate monitor using the supplied VESA mount kit.
Note: From a thermal point of view horizontal operation is permitted. However, there are no rubber feet on the device. The maximum operating temperature is 35 °C then.
Operating System This barebone system comes without operating system.
It is compatible with Windows 10/11 (64-bit) and Linux (64-bit).
Processor Model: Intel Core i5-10210U (ULV)
System-on-a-chip architecture (SoC) with integrated memory and graphics controller
FCBGA1528 package - directly soldered onto the mainboard
Code name: Comet Lake U (10th Generation Intel Core)
Cores / Threads: 4 / 8
Base frequency: 1.6 GHz
Max. Turbo frequency: 4.2 GHz
Intel Smart Cache: 6 MB
TDP wattage: 15 W maximum
Manufacturing process: 14nm
Maximum Tjunction Temperature: 100 °C
Supports 64-bit, VT-x (EPT), VT-d, Enhanced SpeedStep, NX bit, AES-NI, SSE 4.1/4.2
Integrated Graphics Intel UHD Graphics
GPU clock frequency: 300~1100 MHz
Execution Units (EUs): 24
Supports DirectX 12, OpenGL 4.5
Supports full H264, H265 8/10 bit, VP8/9, VC-1, AVC hardware decoding
Supports Quick Sync Video and Clear Video HD technology
Supports up to three independent screens:
1) DisplayPort 1.2 supports Ultra HD @ 60 Hz
2) HDMI 2.0a supports Ultra HD @ 60 Hz
3) D-Sub/VGA supports analog displays
Mainboard / BIOS Shuttle Mainboard FS20
All capacitors are high quality solid capacitors
Supports resume after power failure [6]
Supports Wake on LAN (WOL)
Supports Power on by RTC Alarm
Supports boot from M.2 SSD cards und USB devices
AMI BIOS in 16 MByte EEPROM with SPI interface
Supports hardware monitoring and Watchdog function
Supports Unified Extensible Firmware Interface (UEFI)
Supports Firmware-TPM (fTPM) Version 2.0
Power Adapter External 65 W power adapter (fanless)
Input: 100~240 V AC, 50/60 Hz, max. 1.6 A
Output: 19 V DC, max. 3.42 A, max. 65 W
DC cable length: ca. 170 cm
AC cable length: ca. 170 cm (3-pin Micky MM C6 and Schuko earthed safety plug)
DC Input connector DC Input Connector: 5.5 / 2.5 mm (outer/inner diameter)
The DC-input of the computer supports an external
power source with either 12V±5% or 19V±5%.
Memory support 2x SO-DIMM slot with 260 pins
Supports DDR4-2666 (PC4-21300) SDRAM at 1.2 V
Supports DDR4-3200 at 2666 MHz
Supports Dual Channel mode
Supports a maximum of 32 GB per DIMM,
maximum total size: 64 GB
Supports two unbuffered DIMM modules (no ECC or registered)
2.5" Drive Bay with SATA connector Supports one Serial ATA hard disk
or one SATA SSD drive in 6.35 cm / 2.5" format
Device height: max. 12.5 mm
Supports Serial-ATA III, 6 Gb/s (600 MB/s) bandwidth
Supports Unified Extensible Firmware Interface (UEFI)
Note: no Serial ATA cable is required.
M.2 Slot for SSDs The M.2 2280 BM slot provides the following interfaces:
- PCI-Express Gen. 3.0 X4
- SATA v3.0 (max. 6 Gbps)
It supports M.2 cards with a width of 22 mm
and a length of 42, 60 or 80 mm (type 2242, 2260, 2280).
Supports M.2 SATA SSDs (with B+M key) and M.2 PCIe NVMe SSDs (with M key)

M.2-2230E slot for WLAN cards
Interfaces: PCI-Express Gen. 2.0 X1 und USB 2.0
Supports M.2 cards with a width of 22 mm and a length of 30 mm (type 2230)
Supports WLAN expansion cards (optional Shuttle accessory: WLN-M)
2x pre-installed antenna cables
Card Reader Integrated SD card reader
Supports SD, SDHC and SDXC memory flash cards
Audio Audio Realtek® ALC897 or ALC 662 High-Definition Audio
Two analog audio connectors (3.5 mm) at the front panel:
1) 2 channel line out (headphones)
2) microphone input
Digital multi-channel audio output: via HDMI and DisplayPort
Dual Gigabit LAN Dual network with two RJ45 ports
Used network chips:
1) Intel i211 Ethernet Controller with MAC, PHY and PCIe interface
2) Intel i219LM PHY connected to the MAC of the processor
Supports 10 / 100 / 1.000 MBit/s operation
Supports WAKE ON LAN (WOL)
Supports network boot by Preboot eXecution Environment (PXE)
Supports Teaming mode
Prepared for Wireless Network (WLAN) 2x pre-installed antenna cables (WLAN card and antennas not included)
Prepared for the installation of an M.2-2242 WLAN card and two external antennas
Front Panel connectors/buttons 2x USB 3.2 Gen 2 (red, max. 10 Gbps)
4x USB 2.0
Microphone input
Audio Line-out (headphones)
SD card reader (supports SD, SDHC, SDXC)
Power button
Power LED (blue)
HDD LED (yellow)

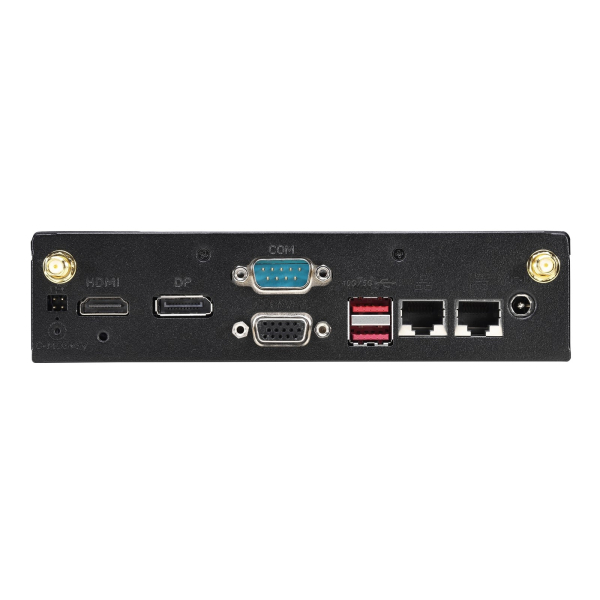

Back Panel connectors DisplayPort 1.2
HDMI 2.0a
D-Sub/VGA
2x USB 3.2 Gen 2 (red, max. 10 Gbps)
2x Intel Gigabit LAN (RJ45)
Serial COM port (5V / 12V, switchable to RS232 / RS422 / RS485) [1]
DC-input connector for external power adapter
4-pin connector (2.54 mm pitch) for power button, Clear CMOS and 5 V DC [4]
Always-On Jumper By removing Jumper J9 (please refer to the quick user guide),
the system will start unconditionally once power is applied. [6]
Scope of Delivery Multi-language user guide
Two metal feet with four screws M3 x 7 mm
VESA mount for 75/100mm standard (two metal brackets)
Four screws M3 x 7 mm (screws together VESA mount and PC)
Four screws M4 x 10 mm (to fix the VESA mount to the external surface)
Two screws M3 x 5 mm to mount a 2.5" storage in the bay
Two screws M3 x 5 mm to mount M.2 cards
Driver DVD for Windows
External 65W power adapter with power cord (with protective-earth contacts)
Optional Accessories - PCP11: adapter cable for the second COM port (replaces the VGA port)
- CXP01: adapter cable for external power button
- WWN03: LTE adapter kit for the 2.5" bay including two external LTE antennas [2]
- WLN-M: WLAN module (802.11ac + BT) with two external antennas and cables
- PRM01: 2U rack mount front plate for two Shuttle XPC slim
- DIR01: mounting kit for 35 mm DIN-Rail
Environmental Specifications Operating temperature range: 0~40 °C
Relative humidity, non-condensing: 10~90 %
Conformity & Certifications EMI: CE, FCC, BSMI, RCM, VCCI
Safety: CB, BSMI, cTUVus
Other: RoHS, Energy Star, ErP
This device is classed as a technical information equipment (ITE) in class B and is intended for use in living room and office. The CE-mark approves the conformity by the EU directives:
(1) 2014/30/EU relating to electromagnetic compatibility (EMC)
(2) 2014/35/EU relating to Electrical Equipment designed for use within certain voltage limits (LVD)
(3) 2009/125/EC relating to eco design requirements for energy-related products (ErP)
