QNAP TS-977XU-RP 9-Bay Diskless Rackmount AMD Ryzen 5 3600 8GB RAM NAS TS-977XU-RP-3600-8G

SKU : TS-977XU-RP-3600-8G
Brand : QNAP
Availablity : on order
On Order items usually have to be ordered in and may take bit longer to get them delivered from our Seven Hills, NSW warehouse
CPU: AMD Ryzen 5 3600, System Warning: Buzzer, CPU Architecture: 64-bit x86, Encryption Engine: (AES-NI), Memory Slot: 4 x UDIMM DDR4, 03 Years Limited Warranty, TS-977XU-RP-3600-8G.
Ask a question about this product
$4,689.00

Estimated Shipping

Pay what you see.

No surcharge On Credit Card, AMEX or Paypal. American express, master card, nab, Paypal, visa

Share

  • Description
  • Specifications
  • Reviews

Product Description

Manufacture # QNAP | Model # TS-977XU-RP-3600-8G



Powered by AMD’s powerful Ryzen processor, the TS-977XU-RP delivers high system performance with up to 6 cores/12 threads and Turbo Core up to 3.9 GHz. The TS-977XU-RP features a hybrid structure with four 3.5-inch HDD and five 2.5-inch SSD drive bays, allowing for enabling SSD caching and Qtier auto-tiering technology to greatly boost IOPS to meet the performance requirements of demanding applications.


Features:

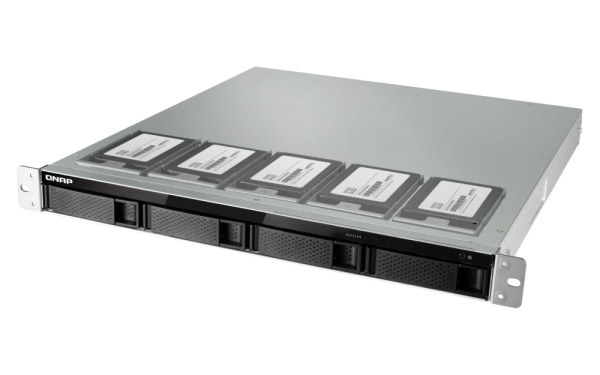

  • Install up to five SSDs in the 2.5-inch drive bays to enable SSD caching and Qtier for optimal system performance.
  • Two 10GbE SFP+ ports provide higher bandwidth to empower applications like virtualization, 4K video editing and file sharing.
  • PCIe expandability allows for installing QM2 expansion card, USB 3.2 Gen 2 (10Gbps) cards, or wireless network cards.
  • Snapshots add an extra layer of protection for disaster recovery plans. You can set a custom snapshot schedule and can use snapshots to recover data from a local or remote NAS.
  • Scalable storage supporting virtualization, containerized apps, centralized storage, backup, sharing, and disaster recovery.
  • Besides using QNAP storage expansion enclosures, you can also leverage QNAP VJBOD technology to use the unused storage space from other NAS.


Overview:

  • CPU: AMD Ryzen 5 3600
  • System Warning: Buzzer
  • CPU Architecture: 64-bit x86
  • Encryption Engine: (AES-NI)
  • Memory Slot: 4 x UDIMM DDR4



Manufacturer Warranty: 03 Years Limited Warranty

Technical Specifications

CPU AMD Ryzen 5 3600 6-core/12-thread processor, burst up to 4.2 GHz
CPU Architecture 64-bit x86
Encryption Engine (AES-NI)
System Memory 8 GB UDIMM DDR4 (1 x 8GB)
Maximum Memory 64 GB (4 x 16 GB)
Memory Slot 4 x UDIMM DDR4
Flash Memory 5 GB (Dual boot OS protection)
Drive Bay 4 x 3.5-inch + 5 x 2.5-inch SATA 6Gb/s, 3Gb/s
Drive Compatibility 3.5-inch SATA hard disk drives
2.5-inch SATA hard disk drives
2.5-inch SATA solid state drives
Hot-swappable Yes
SSD Cache Acceleration Support Yes
Gigabit Ethernet Port (RJ45) 2
10 Gigabit Ethernet Port 2 x 10GbE SFP+ SmartNIC port
Wake on LAN (WOL) Yes
Jumbo Frame Yes
PCIe Slot 1
Slot 1: PCIe Gen 3 x16
Card dimensions for PCIe slot?215 x 68.9x 18.76 mm / 8.46 x 2.71 x 0.74 inches.
USB 3.2 Gen 1 port 4
USB 3.2 Gen 2 (10Gbps) Port 1 x Type-A USB 3.2 Gen 2 10Gbps
Form Factor 1U Rackmount
LED Indicators HDD 1-9, Status, LAN, storage expansion port status
Buttons Power, Reset
Dimensions (HxWxD) 43.3 × 482.6 × 505.54 mm
Weight (Net) 8.62 kg
Operating Temperature 0 - 40 °C (32°F - 104°F)
Storage Temperature -20 - 70°C (-4°F - 158°F)
Relative Humidity 5-95% RH non-condensing, wet bulb: 27?C (80.6?F)
Power Supply Unit 300W(x2), 100-240V
Power Consumption: Operating Mode, Typical 76.43 W
Fan System fan: 3 x 40mm, 12VDC
System Warning Buzzer
Max. Number of Concurrent Connections (CIFS) - with Max. Memory 3500
