Sku: TS-h2490FU-7302P-128G
Brand: QNAP
Category: Network Storage
Shipping Information
Availability: On Order
On Order - These items are sourced upon request and may take longer to deliver. We will confirm availability once your order is received, as some products may occasionally be discontinued or unavailable.
Shipping Calculator
Find
CPU: AMD EPYC 7302P, CPU Architecture: 64-bit x86, System Memory: 128 GB RDIMM, Form Factor: Rackmount, Buttons: Power, Reset, System Warning: Buzzer, 03 Years Limited Warranty, TS-h2490FU-7302P-128G.
100% Guarantee Safe Checkout
Description
Manufacture # QNAP | Model # TS-h2490FU-7302P-128G

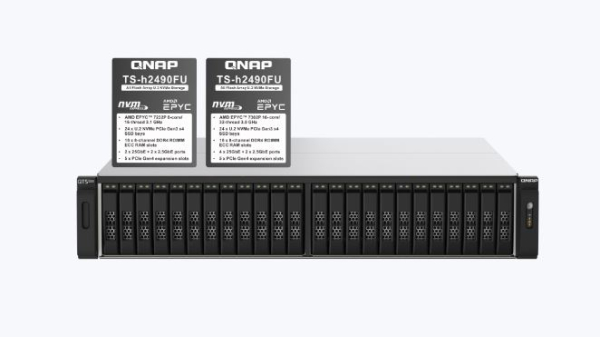

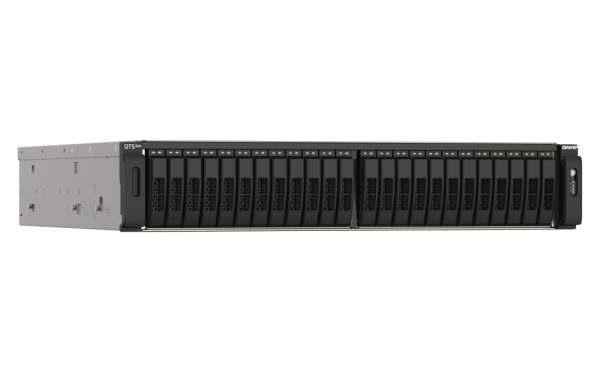

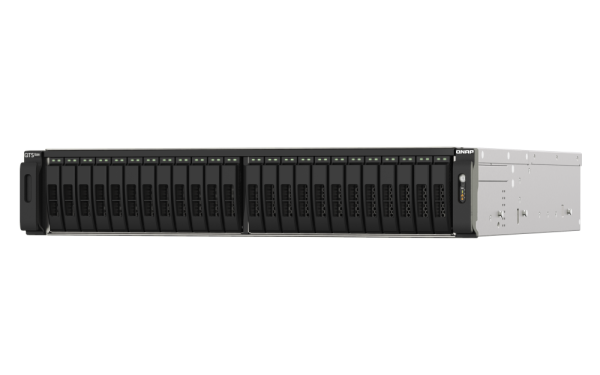

The NVMe all-flash TS-h2490FU is designed for providing extreme performance with high cost-efficiency. Featuring 24 U.2 NVMe Gen 3 x4 SSD bays, the TS-h2490FU delivers up to 661K / 245K random read/write IOPS with ultra-low latency. The ZFS-based QuTS hero operating system supports inline data deduplication and compression for reducing I/O and SSD storage consumption, which significantly extends SSD lifespan with a higher price-performance ratio for all-flash storage arrays.
Features:
Overview:
Manufacturer Warranty: 03 Years Limited Warranty
CPU | AMD EPYC 7302P 16-core/32-thread processor, up to 3.3 GHz |
CPU Architecture | 64-bit x86 |
Floating Point Unit | Yes |
Encryption Engine | Yes (AES-NI) |
System Memory | 128 GB RDIMM DDR4 ECC (8 x 16 GB) |
Maximum Memory | 4 TB (16 x 256 GB) |
Memory Slot | 16 x RDIMM DDR4 |
Flash Memory | 5GB (Dual boot OS protection) |
Drive Bay | 24 x 2.5-inch U.2 PCIe NVMe |
Drive Compatibility | 2.5-inch U.2 NVMe Gen 3 x4 solid state drives |
Hot-swappable | Yes |
SSD Cache Acceleration Support | Yes |
GPU pass-through | Yes |
SR-IOV | Yes |
2.5 Gigabit Ethernet Port (2.5G/1G/100M) | 2 (2.5G/1G/100M/10M) |
25 Gigabit Ethernet Port | 4 x 25GbE SFP28 SmartNIC port |
Wake on LAN (WOL) | Yes |
Jumbo Frame | Yes |
PCIe Slot | 5 Slot 1: PCIe Gen4 x4 Slot 2: PCIe Gen4 x8 or x4 Slot 3: PCIe Gen4 x4 Slot 4: PCIe Gen4 x8 Slot 5: PCIe Gen4 x16 or x8 |
USB 3.2 Gen 1 port | 2 |
Form Factor | Rackmount |
LED Indicators | HDD, Status, 10 GbE, LAN, storage expansion port status |
Buttons | Power, Reset |
Dimensions (HxWxD) | 88.3 × 480.97 × 510.23 mm |
Weight (Net) | 15.2 kg |
Weight (Gross) | 21.86 kg |
Operating Temperature | 0 - 40 °C (32°F - 104°F) |
Storage Temperature | -20 - 70°C (-4°F - 158°F) |
Relative Humidity | 5-95% RH non-condensing, wet bulb: 27?C (80.6?F) |
Power Supply Unit | 1100W PSU(x2), 100-240Vac, Max Wattage: 1100W@200-240Vac 850W@100-240Vac |
Power Consumption: Operating Mode, Typical | 277.64 W |
Fan | 4 x 60mm, 12VDC |
System Warning | Buzzer |
Max. Number of Concurrent Connections (CIFS) - with Max. Memory | 10000 |
