Netcomm NTC-3000-02 3G WCDMA 900/2100 MHz Serial Modem

SKU : NTC-3000-02
Brand : NetComm
Availablity : on order
On Order items usually have to be ordered in and may take bit longer to get them delivered from our Seven Hills, NSW warehouse
Sim Card Reader: Locking Tray, supports standard USIM, Operating Temperature: -40°C to 85°C, Antenna Connector: 1 x SMA connector for Cellular antenna, Led Indicators: Power | 3G Status.
Ask a question about this product
$258.00

Estimated Shipping

For Bulky items and non-metro Australia a different shipping will be quoted on order receipt.

No surcharge On Credit Card, AMEX or Paypal. American express, master card, nab, Paypal, visa

Share

  • Description
  • Specifications
  • Reviews

Product Description

Manufacture # Netcomm | Model # NTC-3000-02



The NetComm Wireless 3G Serial Modem (NTC-3000) enables the remote monitoring, analysis and management of industrial and commercial machine data. Offering RS-232 serial data connectivity, it gathers and transfers machine data to a central site over 3G for the real-time management of traffic infrastructure, water and waste control systems, vending machines, farming equipment and other machines in remote locations.



Features:

  • Cellular antenna connector
  • Serial RS-232 port via Y-cable
  • Power input via Y-cable
  • SIM card slot (for USIM/SIM 2FF format)
  • SIM tray eject button

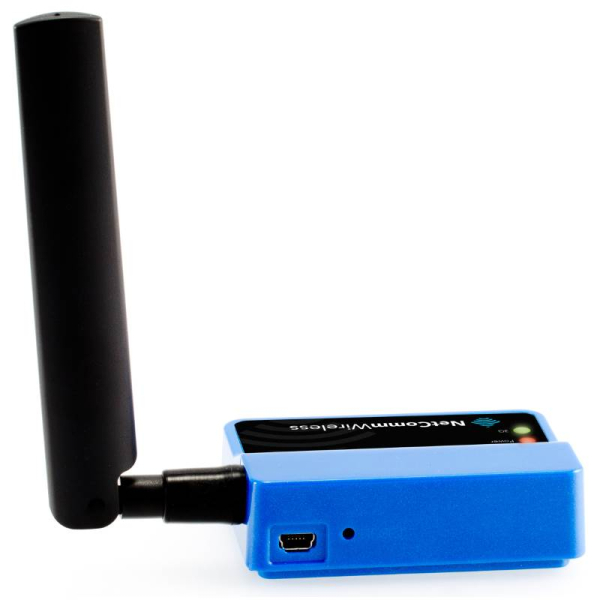

  • Mini USB 2.0 port (host or device mode)
  • Reset button



Overview:

  • Sim Card Reader: Locking Tray, supports standard USIM
  • Operating Temperature: -40°C to 85°C
  • Antenna Connector: 1 x SMA connector for Cellular antenna

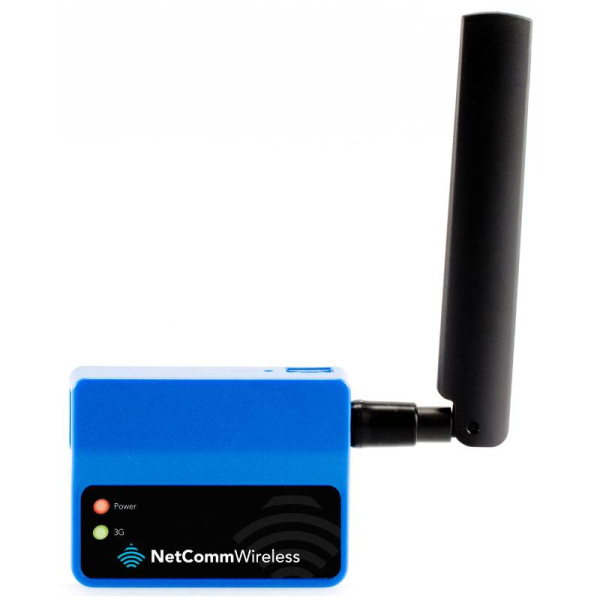

  • Led Indicators: Power | 3G Status



Manufacturer Warranty: 01 Year Limited Warranty

Technical Specifications

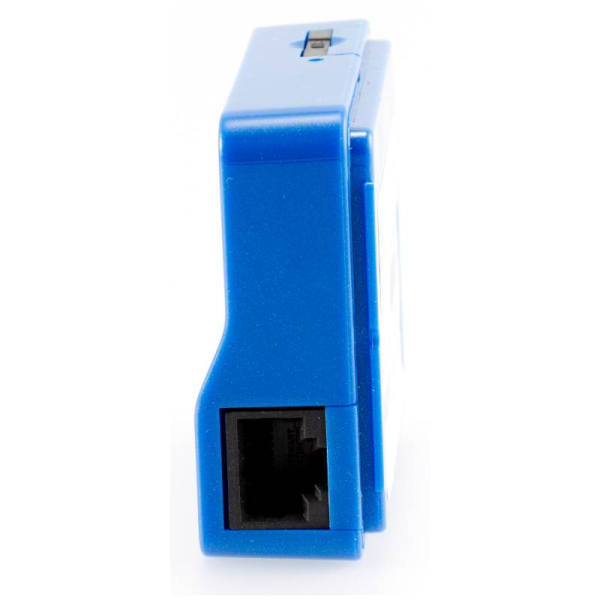

Connectivity 1 x 8P8C connector for serial RS-232 data connections and DC power input (Y-cable with DE-9 connector included for easy installation)
1 x Mini USB 2.0 port for serial connections (Windows driver available)
Sim Card Reader Locking Tray, supports standard USIM
Operating Temperature -40°C to 85°C

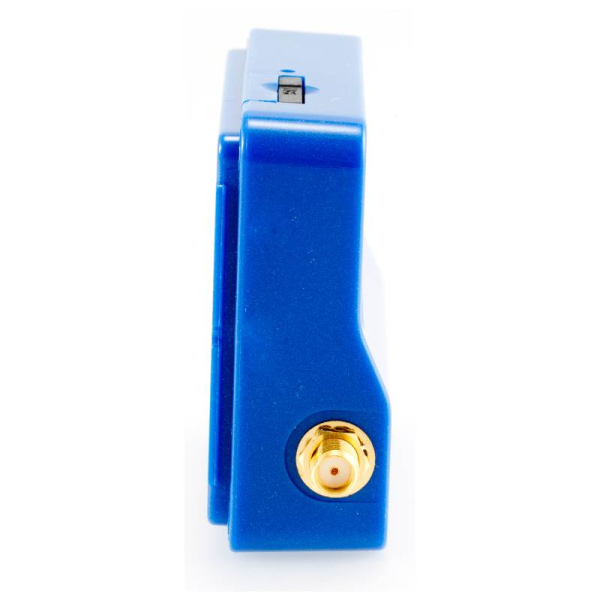

Antenna Connector 1 x SMA connector for Cellular antenna
Led Indicators Power | 3G Status
Power Input 5 - 36 VDC, via 8P8C connector (using supplied Y-cable) or via USB port
Dimension / Weight 74 x 57 x 24 mm / 84g (w/o mounting bracket)
Frequency Bands UMTS:
Band 1 (2100 MHz)
Band 8 (900 MHz)

GSM/GPRS/EDGE:
GSM 850 (850 MHz)
EGSM 900 (900 MHz)
DCS 1800 (1800 MHz)
PCS 1900 (1900 MHz)
Regulatory Certifications CE (Europe)
RCM (Australia)
