| Chipset |
Intel Z790 |
| Cpu Support |
Supports 12th/13th Gen Intel Core Processors, Pentium Gold and Celeron Processors
LGA 1700 |
| Memory |
4x DDR5, Maximum Memory Capacity 192GB
Memory Support 7200+(OC)/ 7000(OC)/ 6800(OC)/ 6600(OC)/ 6400(OC)/ 6200(OC)/ 6000(OC)/ 5800(OC)/ 5600(JEDEC)/ 5400(JEDEC)/ 5200(JEDEC)/ 5000(JEDEC)/ 4800(JEDEC) MHz
Max. overclocking frequency:
• 1DPC 1R Max speed up to 7200+ MHz
• 1DPC 2R Max speed up to 6600+ MHz
• 2DPC 1R Max speed up to 6400+ MHz
• 2DPC 2R Max speed up to 5600+ MHz
Supports Intel XMP 3.0 OC
Supports Dual-Controller Dual-Channel mode
Supports non-ECC, un-buffered memory |
| Onboard Graphics |
1x HDMI
Support HDMI 2.1 with HDR, maximum resolution of 4K 60Hz*
1x DisplayPort
Support DP 1.4, maximum resolution of 8K 60Hz* |
| Expansion Slot |
3x PCI-E x16 slot
1x PCI-E x1 slot
PCI_E1 Gen PCIe 5.0 supports up to x16 (From CPU)
PCI_E2 Gen PCIe 3.0 supports up to x1 (From Chipset)
PCI_E3 Gen PCIe 4.0 supports up to x4 (From Chipset)
PCI_E4 Gen PCIe 3.0 supports up to x1 (From Chipset) |
| Storage |
4x M.2
M.2_1 Source (From CPU) supports up to PCIe 4.0 x4 , supports 22110/2280/2260/2242 devices
M.2_2 Source (From Chipset) supports up to PCIe 4.0 x4 , supports 2280/2260/2242 devices
M.2_3 Source (From Chipset) supports up to PCIe 4.0 x4 / SATA mode, supports 2280/2260/2242 devices
M.2_4 Source (From Chipset) supports up to PCIe 4.0 x4 / SATA mode, supports 2280/2260/2242 devices
6x SATA 6G |
| Raid |
Supports RAID 0, RAID 1, RAID 5 and RAID 10 for SATA storage devices
Supports RAID 0, RAID 1, RAID 5 and RAID 10 for M.2 NVMe storage devices |
| USB |
2x USB 2.0 (Rear)
4x USB 2.0 (Front)
2x USB 3.2 Gen1 Type A (Rear)
2x USB 3.2 Gen1 Type A (Front)
3x USB 3.2 Gen2 Type A (Rear)
1x USB 3.2 Gen2 Type C (Front)
1x USB 3.2 Gen2x2 Type C (Rear) |
| LAN |
Intel 2.5Gbps LAN |
| Wireless / Bluetooth |
Intel Wi-Fi 6E
The Wireless module is pre-installed in the M.2 (Key-E) slot
Supports MU-MIMO TX/RX, 2.4GHz / 5GHz / 6GHz* (160MHz) up to 2.4Gbps
Supports 802.11 a/ b/ g/ n/ ac/ ax
Supports Bluetooth 5.3, FIPS, FISMA
* Wi-Fi 6E 6GHz may depend on every country’s regulations and will be ready in Windows 11.
** Bluetooth 5.3 will be ready in Windows 10 build 21H1 and Windows 11. |
| Audio |
Realtek ALC4080 Codec
7.1-Channel USB High Performance Audio
Supports S/PDIF output |
| BIOS |
1x 256 Mb flash
UEFI AMI BIOS
ACPI 6.4, SMBIOS 3.5
Multi-language |
| Special Features |
Mystic Light
Ambient Link
Frozr AI Cooling
User Scenario
True Color
Live Update
Hardware Monitoring
Extended Heatsink Design
M.2 Shield Frozr
K7 MOSFET thermal pad / Extra choke pad
Fan headers (CPU + PUMP + SYSTEM)
Core Boost
VRM Power Design (VCPU / VGT / AUX)
Dual CPU Power (2x 8 pin)
Memory Boost
Lightning Gen 5 PCI-E Slot
Lightning Gen 4 PCI-E / M.2 Slot
PCI-E Steel Armor
Pre-installed I/O Shield
EZ M.2 Clips
EZ DEBUG LED
EZ LED Control (Switch)
Flash BIOS Button
Audio Boost 5
Mystic Light Extension (RGB)
Mystic Light Extension (A-RAINBOW V2) |
| Internal I/O |
1x Power Connector(ATX_PWR)
2x Power Connector(CPU_PWR)
1x CPU Fan
1x Pump Fan
6x System Fan
2x Front Panel (JFP)
1x Chassis Intrusion (JCI)
1x Front Audio (JAUD)
1x TBT connector (JTBT, supports RTD3)
1x Tuning Controller connector(JDASH)
3x Addressable V2 RGB LED connector (JARGB_V2)
1x RGB LED connector(JRGB)
1x TPM pin header(Support TPM 2.0)
4x USB 2.0 ports
2x USB 3.2 Gen1 Type A ports
1x USB 3.2 Gen2 Type C ports |
| Led Feature |
4x EZ Debug LED |

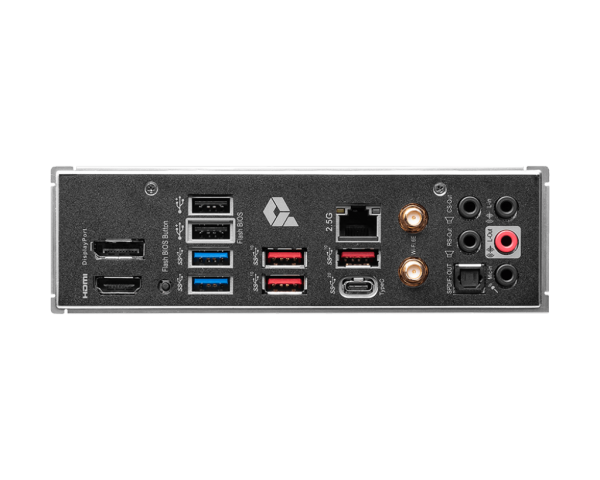

| Back Panel Ports |
1x DisplayPort
1x HDMI port
1x Flash BIOS button
2x USB 2.0 Type-A ports
2x USB 3.2 Gen1 5Gbps Type-A ports
1x 2.5Gbps LAN (RJ45) port
3x USB 3.2 Gen 2 10Gbps Type-A ports
1x USB 3.2 Gen 2x2 20Gbps Type-C port
2x Wi-Fi antenna connectors
5x Audio jacks
1x Optical S/PDIF Out connector |
| Operating System |
Support for Windows 11 64-bit, Windows 10 64-bit |
| PCB Dimension |
ATX
243.84mmx304.8mm |
| Bundled Software |
Drivers
MSI Center
Intel Extreme Tuning Utility
CPU-Z MSI GAMING
Norton 360 Deluxe
AIDA64 Extreme - MSI Edition
Tile |
