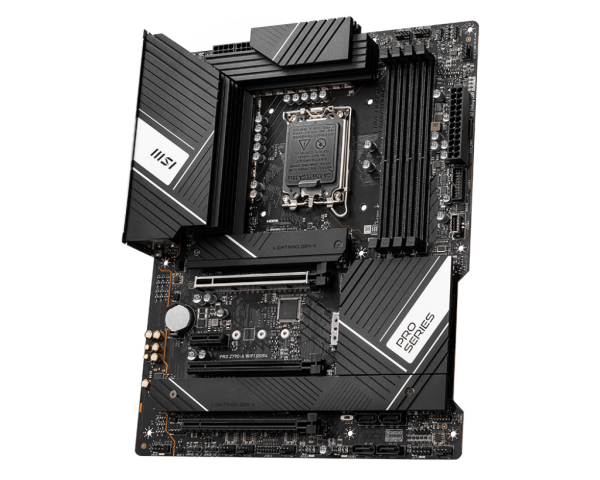

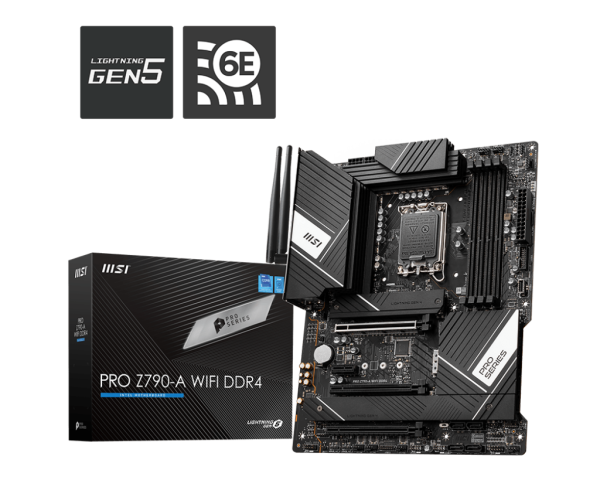

Name: MSI Pro Z790-A WIFI DDR4 LGA 1700 ATX Desktop Motherboard
Brand: MSI
SKU: PRO Z790-A WIFI DDR4
Price: 442 AUD
Availability: InStock

MSI Pro Z790-A WIFI DDR4 LGA 1700 ATX Desktop Motherboard

SKU : PRO Z790-A WIFI DDR4

Brand : MSI

Estimated Shipping

Find

Description
Specifications
Reviews

Product Description

Manufacture # MSI | Model # PRO Z790-A WIFI DDR4

Designed to support the most popular All-In-One & customized water cooling solutions on the market. A dedicated water pump PIN header supports up to 3 amp, giving you full control of the water pump speed. A clearly marked ‘keep-out-zone’ allows for easy and safe installation and a perfect fit.

Features:

Supports DDR4 Memory, Dual Channel DDR4 5333+MHz (OC)
Enhanced Power Design: 16+1+1 DRPS with 80A SPS, dual 8-pin CPU power connectors, Core Boost, Memory Boost
Premium Thermal Solution: Extended Heatsink, MOSFET thermal pads rated for 7W/mK, additional choke thermal pads and M.2 Shield Frozr are built for high performance system and non-stop gaming experience
High Quality PCB: 6-layer PCB made by 2oz thickened copper and server grade level material
Lightning Fast Game experience: PCIe 5.0 slot, Lightning Gen 4 x4 M.2, USB 3.2 Gen 2x2
Intel Turbo USB 3.2 Gen 2: Powered by Intel USB 3.2 Gen2 controller, Turbo USB ensures an uninterrupted connection with more stability and fastest USB speeds
2.5G LAN with Wi-Fi 6E Solution: Upgraded network solution for professional and multimedia use. Delivers a secure, stable and fast network connection
AUDIO BOOST 5: Reward your ears with studio grade sound quality for the most immersive gaming experience

Overview:

Chipset: Intel Z790
Led Feature: 4x EZ Debug LED
Operating System: Support for Windows 11 64-bit, Windows 10 64-bit

Manufacturer Warranty: 03 Years Limited Warranty

Technical Specifications

Chipset	Intel Z790
Cpu Support	Supports 12th/13th Gen Intel Core Processors, Pentium Gold and Celeron Processors LGA 1700
Memory	4x DDR4, Maximum Memory Capacity 128GB Memory Support 5333/ 5200/ 5066/ 5000/ 4800/ 4600/ 4533/ 4400/ 4266/ 4000/ 3866/ 3733/ 3600/ 3466/ 3333(O.C.)/ 3200/ 3000/ 2933/ 2800/ 2666/ 2400/ 2133(By JEDCE & POR) Max. overclocking frequency: • 1DPC 1R Max speed up to 5333+ MHz • 1DPC 2R Max speed up to 4800+ MHz • 2DPC 1R Max speed up to 4400+ MHz • 2DPC 2R Max speed up to 4000+ MHz Supports Dual-Channel mode Supports non-ECC, un-buffered memory Supports Intel Extreme Memory Profile (XMP)
Onboard Graphics	1x HDMI Support HDMI 2.1 with HDR, maximum resolution of 4K 60Hz* 1x DisplayPort Support DP 1.4, maximum resolution of 8K 60Hz*
Expansion Slot	3x PCI-E x16 slot 1x PCI-E x1 slot PCI_E1 Gen PCIe 5.0 supports up to x16 (From CPU) PCI_E2 Gen PCIe 3.0 supports up to x1 (From Chipset) PCI_E3 Gen PCIe 4.0 supports up to x4 (From Chipset) PCI_E4 Gen PCIe 3.0 supports up to x1 (From Chipset)
Storage	4x M.2 M.2_1 Source (From CPU) supports up to PCIe 4.0 x4 , supports 22110/2280/2260/2242 devices M.2_2 Source (From Chipset) supports up to PCIe 4.0 x4 , supports 2280/2260/2242 devices M.2_3 Source (From Chipset) supports up to PCIe 4.0 x4 / SATA mode, supports 2280/2260/2242 devices M.2_4 Source (From Chipset) supports up to PCIe 4.0 x4 / SATA mode, supports 2280/2260/2242 devices 6x SATA 6G
Raid	Supports RAID 0, RAID 1, RAID 5 and RAID 10 for SATA storage devices Supports RAID 0, RAID 1, RAID 5 and RAID 10 for M.2 NVMe storage devices
USB	2x USB 2.0 (Rear) 4x USB 2.0 (Front) 2x USB 3.2 Gen1 Type A (Rear) 2x USB 3.2 Gen1 Type A (Front) 3x USB 3.2 Gen2 Type A (Rear) 1x USB 3.2 Gen2 Type C (Front) 1x USB 3.2 Gen2x2 Type C (Rear)
LAN	Intel 2.5Gbps LAN
Wireless / Bluetooth	Intel Wi-Fi 6E The Wireless module is pre-installed in the M.2 (Key-E) slot Supports MU-MIMO TX/RX, 2.4GHz / 5GHz / 6GHz* (160MHz) up to 2.4Gbps Supports 802.11 a/ b/ g/ n/ ac/ ax Supports Bluetooth 5.3, FIPS, FISMA * Wi-Fi 6E 6GHz may depend on every country’s regulations and will be ready in Windows 11. ** Bluetooth 5.3 will be ready in Windows 10 build 21H1 and Windows 11.
Audio	Realtek ALC4080 Codec 7.1-Channel USB High Performance Audio Supports S/PDIF output
BIOS	1x 256 Mb flash UEFI AMI BIOS ACPI 6.4, SMBIOS 3.5 Multi-language
Special Features	Mystic Light Ambient Link Frozr AI Cooling User Scenario True Color Live Update Hardware Monitoring Extended Heatsink Design M.2 Shield Frozr K7 MOSFET thermal pad / Extra choke pad Fan headers (CPU + PUMP + SYSTEM) Core Boost VRM Power Design (VCPU / VGT / AUX) Dual CPU Power (2x 8 pin) Memory Boost Lightning Gen 5 PCI-E Slot Lightning Gen 4 PCI-E / M.2 Slot PCI-E Steel Armor Pre-installed I/O Shield EZ M.2 Clips EZ DEBUG LED EZ LED Control (Switch) Flash BIOS Button Audio Boost 5
Internal I/O	1x Power Connector(ATX_PWR) 2x Power Connector(CPU_PWR) 1x CPU Fan 1x Pump Fan 6x System Fan 2x Front Panel (JFP) 1x Chassis Intrusion (JCI) 1x Front Audio (JAUD) 1x TBT connector (JTBT, supports RTD3) 1x Tuning Controller connector(JDASH) 3x Addressable V2 RGB LED connector (JARGB_V2) 1x RGB LED connector(JRGB) 1x TPM pin header(Support TPM 2.0) 4x USB 2.0 ports 2x USB 3.2 Gen1 Type A ports 1x USB 3.2 Gen2 Type C ports
Led Feature	4x EZ Debug LED

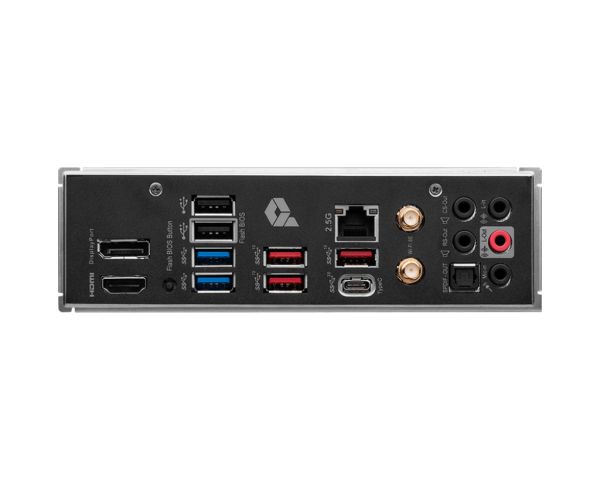

Back Panel Ports	1x DisplayPort 1x HDMI port 1x Flash BIOS button 2x USB 2.0 Type-A ports (From Hub GL850G) 2x USB 3.2 Gen1 5Gbps Type-A ports (From Z790 chipset) 1x 2.5Gbps LAN (RJ45) port 3x USB 3.2 Gen 2 10Gbps Type-A ports (From Z790 chipset) 1x USB 3.2 Gen 2x2 20Gbps Type-C port (From Z790 chipset) 2x Wi-Fi antenna connectors 5x Audio jacks 1x Optical S/PDIF Out connector
Operating System	Support for Windows 11 64-bit, Windows 10 64-bit
PCB Dimension	ATX 243.84mmx304.8mm
Bundled Software	Drivers MSI Center Intel Extreme Tuning Utility CPU-Z MSI GAMING Norton 360 Deluxe AIDA64 Extreme - MSI Edition Tile
