| Chipset |
AMD X670 |
| Cpu Support |
Supports AMD Ryzen 7000 Series Desktop Processors
Socket AM5 |
| Memory |
4x DDR5, Maximum Memory Capacity 192GB
Memory Support DDR5 6000+(OC)/ 5800(OC)/ 5600(OC)/ 5400(OC)/ 5200(OC)/ 5000(OC)/ 4800(JEDEC) MHz
Max. overclocking frequency:
• 1DPC 1R Max speed up to 6000+ MHz
• 1DPC 2R Max speed up to 6000+ MHz
• 2DPC 1R Max speed up to 6000+ MHz
• 2DPC 2R Max speed up to 6000+ MHz
Supports Dual-Channel mode
Supports non-ECC, un-buffered memory
Supports AMD EXPO |
| Onboard Graphics |
1x HDMI
Support HDMITM 2.1 FRL, maximum resolution of 4K 120Hz*
1x DisplayPort
Supports DP1.4, maximum resolution of 4K 60Hz*
1x Type-C DisplayPort
Supports DisplayPort 1.4 with HBR3, maximum resolution of 4K 120Hz* |
| Expansion Slot |
3x PCI-E x16 slot
Supports x16/x4/x2
1x PCI-E x1 slot
PCI_E1 Gen PCIe 4.0 supports up to x16 (From CPU)
PCI_E2 Gen PCIe 3.0 supports up to x1 (From Chipset)
PCI_E3 Gen PCIe 4.0 supports up to x4 (From CPU)
PCI_E4 Gen PCIe 4.0 supports up to x2 (From Chipset) |
| Storage |
4x M.2
M.2_1 Source (From CPU) supports up to PCIe 5.0 x4 , supports 22110/2280 devices
M.2_2 Source (From Chipset) supports up to PCIe 4.0 x4 , supports 2280/2260 devices
M.2_3 Source (From Chipset) supports up to PCIe 4.0 x4 , supports 2280/2260 devices
M.2_4 Source (From Chipset) supports up to PCIe 4.0 x4 , supports 2280/2260 devices
6x SATA 6G |
| Raid |
Supports RAID 0, RAID 1 and RAID 10 for SATA storage devices*
Supports RAID 0, RAID 1 and RAID 10 for M.2 NVMe storage devices
*SATA_A1 & SATA_A2 do not support RAID function. |
| USB |
4x USB 2.0 (Front)
4x USB 3.2 Gen1 Type A (Rear)
4x USB 3.2 Gen1 Type A (Front)
2x USB 3.2 Gen2 Type A (Rear)
1x USB 3.2 Gen2 Type C (Rear)
1x USB 3.2 Gen2 Type C (Front)
1x USB 3.2 Gen2x2 Type C (Rear) |
| LAN |
Realtek RTL8125BG 2.5G LAN |
| Wireless / Bluetooth |
AMD Wi-Fi 6E
The Wireless module is pre-installed in the M.2 (Key-E) slot
Supports MU-MIMO TX/RX
Supports 20MHz, 40MHz, 80MHz,160MHz bandwidth in 2.4GHz/ 5GHz or 6GHz* bands
Supports 802.11 a/ b/ g/ n/ ac/ ax
Supports Bluetooth 5.3**
* Wi-Fi 6E 6GHz may depend on every country’s regulations and will be ready in Windows 11.
** Bluetooth 5.3 will be ready in Windows 10 build 21H1 and Windows 11. |
| Audio |
Realtek ALC4080 Codec
7.1-Channel USB High Performance Audio
Supports S/PDIF output
Supports up to 32-Bit/384 kHz playback on front panel |
| BIOS |
1x 256 Mb flash
UEFI AMI BIOS
ACPI 6.4, SMBIOS 3.5
Multi-language |
| Special Features |
Mystic Light
Ambient Link
Forzr AI Cooling
User Scenario
True Color
Live Update
Hardware Monitoring
Super Charger
Devices Speed Up
Extended Heatsink Design
M.2 Shield Frozr
K7 MOSFET thermal pad / Extra choke pad
Fan headers (CPU + PUMP + SYSTEM)
Core Boost
VRM Power Design
Dual CPU Power
Memory Boost
Lightning Gen 5 M.2 Slot
Lightning Gen 4 PCI-E / M.2 Slot
PCI-E Steel Armor
EZ M.2 Clips
EZ DEBUG LED
EZ LED Control
Mystic Light Extension (RGB)
Mystic Light Extension (ARGB V2)
Ambient Devices Support |
| Internal I/O |
1x Power Connector(ATX_PWR)
2x Power Connector(CPU_PWR)
1x CPU Fan
1x Pump Fan
6x System Fan
2x Front Panel (JFP)
1x Chassis Intrusion (JCI)
1x Front Audio (JAUD)
1x Tuning Controller connector(JDASH)
2x Addressable V2 RGB LED connector (JARGB_V2)
2x RGB LED connector(JRGB)
1x TPM pin header(Support TPM 2.0)
4x USB 2.0 ports
4x USB 3.2 Gen1 Type A ports
1x USB 3.2 Gen2 Type C ports |
| Led Feature |
4x EZ Debug LED |

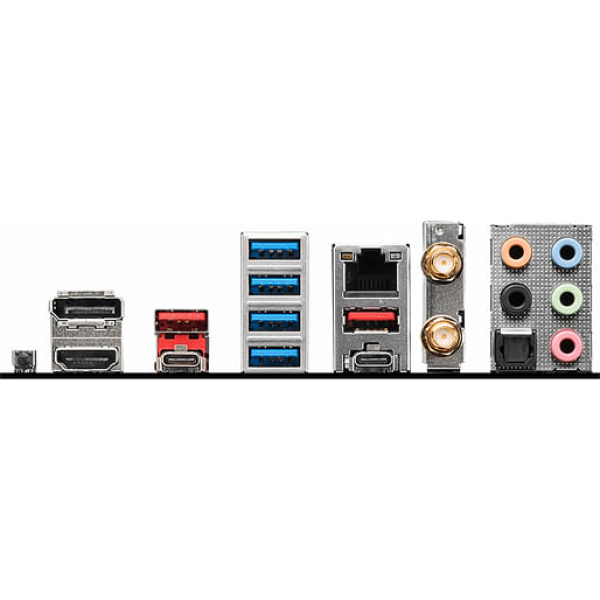

| Back Panel Ports |
DisplayPort
USB 3.2 Gen 2 10Gbps (Type-A)
USB 3.2 Gen 1 5Gbps (Type-A)
2.5G LAN
Wi-Fi / Bluetooth
Audio connectors
Flash BIOS Button
HDMI
USB 3.2 Gen 2 10Gbps (Type-C Display port)
USB 3.2 Gen 2x2 20Gbps (Type-C)
USB 3.2 Gen 2 10Gbps (Type-A)
S/PDIF-OUT |
| Operating System |
Support for Windows 11 64-bit, Windows 10 64-bit |
| PCB Dimension |
ATX
243.84mmx304.8mm |
| Bundled Software |
Drivers
MSI Center
CPU-Z MSI GAMING
AIDA64 Extreme - MSI Edition
Norton 360 Deluxe |
