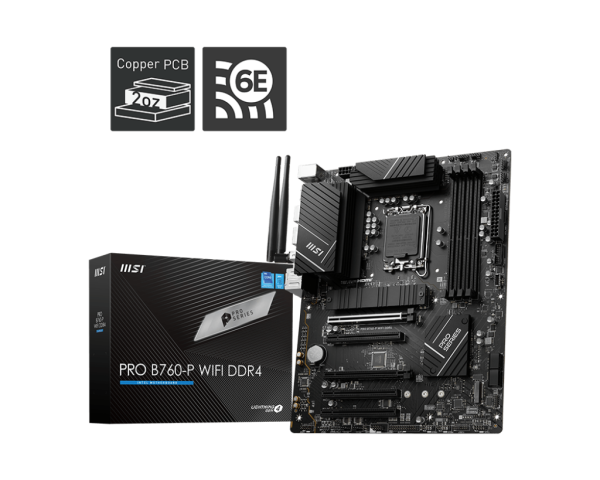

Name: MSI Pro B760-P Wi-Fi DDR4 LGA1700 ATX Desktop Motherboard
Brand: MSI
SKU: PRO B760-P WIFI DDR4
Price: 329 AUD
Availability: InStock

MSI Pro B760-P Wi-Fi DDR4 LGA1700 ATX Desktop Motherboard

SKU : PRO B760-P WIFI DDR4

Brand : MSI

Availablity : on order
On Order items usually have to be ordered in and may take bit longer to get them delivered from our Seven Hills, NSW warehouse

Estimated Shipping

Find

Description
Specifications
Reviews

Product Description

Manufacture # MSI | Model # PRO B760-P WIFI DDR4

The PRO Series is tailored to professionals from all walks of life. The lineup features impressive performance and high quality, while aiming to provide users incredible experience. Users who care about productivity and efficiency can definitely count on the MSI PRO Series to assist you with multitasking and increasing efficiency.

Features:

Supports 12th/13th Gen Intel Core, Pentium Gold and Celeron processors for LGA 1700 socket
Supports DDR4 Memory, Dual Channel DDR4 5333+MHz (OC)
Enhanced Power Design- 12+1 Duet Rail Power System with P-PAK, 8-pin + 4-pin CPU power connectors, Core Boost, Memory Boost
High Quality PCB- 6-layer PCB made by 2oz thickened copper and server grade level material
Lightning Fast Game experience- PCIe 4.0 slot, Lightning Gen 4 x4 M.2

Overview:

Chipset: Intel B760
RAM Capacity: upto 128GB (32GB each)
DIMM Slots: 4
Form Factor: ATX
Dimensions: 243.84mmx304.8mm

Manufacturer Warranty: 03 Years Limited Warranty

Technical Specifications

General

Chipset

Intel B760

Socket

LGA 1700
Supports 12th/13th Gen Intel Core Processors, Pentium Gold and Celeron Processors

BIOS

1x 256 Mb flash
UEFI AMI BIOS
ACPI 6.4, SMBIOS 3.5
Multi-language

Unique Features

Mystic Light
User Scenario
Hardware Monitor
Frozr AI Cooling
True Colo
Audio Boost
Mystic Light SYNC
Ambient Devices Support
Memory Boost
Core Boost
PCI-E Steel Armor
EZ M.2 Clip
CPU Cooler Tuning
PCI-E Steel Armor
Click BIOS 5

Memory

RAM Capacity

upto 128GB (32GB each)

DIMM Slots

RAM Frequency Supports

DDR4 5333(OC) / 5200(OC) / 5066(OC) / 5000(OC) / 4800(OC) / 4600(OC) / 4400(OC) / 4266(OC) / 4200(OC) / 4000(OC) / 3800(OC) / 3733(OC) / 3600(OC) / 3466(OC) / 3400(OC) / 3333(OC) / 3200(JEDEC) / 2933(JEDEC) / 2666(JEDEC) / 2400(JEDEC) / 2133(JEDEC)

Onboard Graphics

With HDMI

1x HDMI
Support HDMI 2.1, maximum resolution of 4K 60Hz

With DisplayPort

1x DisplayPort
Support DP 1.4, maximum resolution of 4K 60Hz

Wireless Communication

Wi-Fi

Intel Wi-Fi 6E
Supports 802.11 a/ b/ g/ n/ ac/ ax

Bluetooth

5.3

Slots And Ports

Expansion Slots

5x PCI-E x16 slot
M.2_1 Source (From CPU) supports up to PCIe 4.0 x4 , supports 22110/2280/2260/2242 devices
M.2_2 Source (From Chipset) supports up to PCIe 4.0 x4 / SATA mode, supports 2280/2260/2242 devices

Internal I/O Connectors

1x Power Connector(ATX_PWR)
2x Power Connector(CPU_PWR)
1x CPU Fan
1x Pump Fan
5x System Fan
2x Front Panel (JFP)
1x Chassis Intrusion (JCI)
1x Front Audio (JAUD)
1x Printer Port (JLPT)
1x Com Port (JCOM)
1x TBT connector (JTBT, supports RTD3)
2x Addressable V2 RGB LED connector (JARGB_V2)
1x RGB LED connector(JRGB)
1x TPM pin header(Support TPM 2.0)
4x USB 2.0 ports
2x USB 3.2 Gen1 Type A ports
1x USB 3.2 Gen1 Type C ports

Back Panel Connectors

1x PS/2 port
4x USB 2.0 Type-A ports (From B760 chipset)
1x DisplayPort
1x HDMI port
1x 2.5G LAN (RJ45) jack
2x USB 3.2 Gen 2 10Gbps Type-A ports (From B760 chipset)
1x USB 3.2 Gen 2 10Gbps Type-C port (From B760 chipset)
2x Wi-Fi Antenna connectors
5x Audio jacks
1x Optical S/PDIF OUT connector
