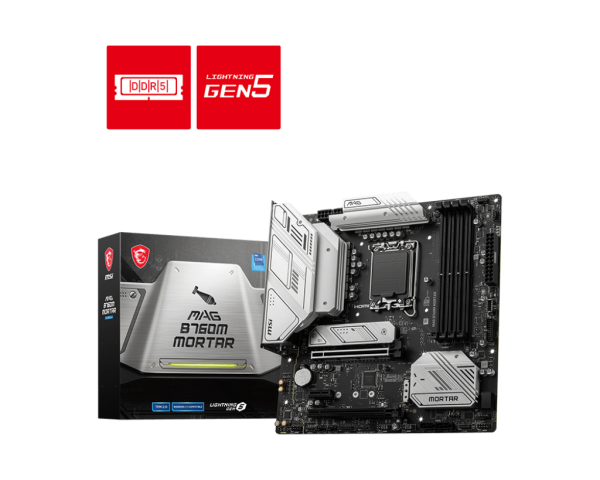

MSI MAG B760M MORTAR LGA 1700 Micro-ATX Motherboard

MSI MAG B760M MORTAR LGA 1700 Micro-ATX Motherboard

SKU : MAG B760M MORTAR
Brand : MSI
Availablity : Online Only, In Stock
Ships within 1 and 3 days from our Seven Hills, NSW warehouse
Chipset: Intel B760, RAM Capacity: upto 128GB (32GB each), DIMM Slots: 4, Form Factor: mATX, Dimensions: 243.84mmx243.84mm, Operating System Supports: Support for Windows 10/11 64-bit.
Ask a question about this product
$333.00

Buy Now

Estimated Shipping

Find

Pay what you see.

No surcharge On Credit Card, AMEX or Paypal. American express, master card, nab, Paypal, visa

Share

  • Description
  • Specifications
  • Reviews

Product Description

Manufacture # MSI | Model # MAG B760M MORTAR



The MAG series fights alongside gamers in pursuit of honor. With added military-inspired elements in these gaming products, they were reborn as the symbol of sturdiness and durability.



Features:

  • High Quality PCB- 6-layer PCB made by 2oz thickened copper and server grade level material
  • Enhanced Power Design- 12+1+1 Duet Rail Power System, dual 8-pin CPU power connectors, Core Boost, Memory Boost
  • Lightning Fast Game experience- PCIe 5.0 slot, Lightning Gen 4 x4 M.2, USB 3.2 Gen 2x2
  • Premium Thermal Solution- Extended Heatsink Design and M.2 Shield Frozr are built for high performance system and non-stop works
  • Audio Boost- Reward your ears with studio grade sound quality
  • High Quality PCB- 6-layer PCB made by 2oz thickened copper and server grade level material
  • Supports DDR5 Memory, up to 7000+(OC) MHz


Overview:

  • Chipset: Intel B760
  • RAM Capacity: upto 128GB (32GB each)
  • DIMM Slots: 4
  • Form Factor: mATX
  • Dimensions: 243.84mmx243.84mm
  • Operating System Supports: Support for Windows 10/11 64-bit


Manufacturer Warranty: 03 Years Limited Warranty

Technical Specifications

General

Chipset A chipset is an electronic component in an integrated circuit known as a "Data Flow Management System" that manages the data flow between the processor, memory and peripherals.
Intel B760
Socket A CPU socket or CPU slot contains mechanical components providing mechanical and electrical connections between a processor and PCB. This allows for placing the CPU without soldering.
LGA 1700
Supports 12th/13th Gen Intel Core Processors, Pentium Gold and Celeron Processors
BIOS Basic Input/Output System, also known as the System BIOS is firmware used to provide runtime services for operating systems and programs to perform hardware initialization during the booting process.
1x 256 Mb flash
UEFI AMI BIOS
ACPI 6.4, SMBIOS 3.5
Multi-language
Unique Features
Gaming Mode
Smart Priority
Extended Heatsink Design
M.2 Shield Frozr
Core Boost
VRM Power Design
PCI-E Steel Armor
Pre-installed I/O Shield
Audio Boost
Mystic Light Extension (RGB)
Click BIOS 5
CPU Cooler Tuning

Memory

RAM Capacity The total memory that can be added to a computer depends on the address registers built into the CPU.
upto 128GB (32GB each)
DIMM Slots DIMM (dual in-line memory module) slots are the place on your motherboard where the RAM goes.
4
RAM Frequency Supports RAM frequency is measured in MHz and usually immediately follows the DDR version in the RAM spec.
DDR5 7000+(OC) / 6800(OC) / 6600(OC) / 6400(OC) / 6200(OC) / 6000(OC) / 5800(OC) / 5600(JEDEC) / 5400(JEDEC) / 5200(JEDEC) / 5000(JEDEC) / 4800(JEDEC) MHz

Onboard Graphics

With HDMI
1x HDMI
Support HDMITM 2.1 with HDR, maximum resolution of 4K 60Hz
With DisplayPort
1x DisplayPort
Support DP 1.4, maximum resolution of 4K 60Hz

Wireless Communication

Wi-Fi Wi-Fi is a wireless networking technology that allows devices such as computers, mobile devices, and other equipments to interface with the Internet.
Bluetooth Bluetooth is a wireless technology that enables the exchange of data between devices using wavelength.

Slots And Ports

Expansion Slots An expansion slot is a socket on the motherboard that is used to insert an expansion card, which provides additional features to a computer such as video, sound, graphics, ethernet or memory.
2x PCI-E x16 slot
1x PCI-E x1 slot
M.2_1 Source (From CPU) supports up to PCIe 4.0 x4 , supports 2280/2260/2242 devices
M.2_2 Source (From Chipset) supports up to PCIe 4.0 x4 / SATA mode, supports 2280/2260/2242 devices
Internal I/O Connectors An I/O (Input/Output) port is a socket on a computer that a cable is plugged into. The port connects the CPU to a peripheral device via a hardware interface or to the network via a network interface.
1x Power Connector(ATX_PWR)
2x Power Connector(CPU_PWR)
1x CPU Fan
1x Pump Fan
4x System Fan
2x Front Panel (JFP)
1x Chassis Intrusion (JCI)
1x Front Audio (JAUD)
1x TBT connector (JTBT, supports RTD3)
1x Tuning Controller connector(JDASH)
2x Addressable V2 RGB LED connector (JARGB_V2)
1x RGB LED connector(JRGB)
1x TPM pin header(Support TPM 2.0)
4x USB 2.0 ports
2x USB 3.2 Gen1 Type A ports
1x USB 3.2 Gen2 Type C ports
Back Panel Connectors The back or rear panel is the portion of the motherboard that allows you to connect external devices, such as your monitor, speakers, keyboard, mouse etc.
4x USB 2.0 Type-A ports (From B760 chipset)
1x DisplayPort
1x HDMI port
3x USB 3.2 Gen 2 10Gbps Type-A ports (From GL3590 Hub)
1x USB 3.2 Gen 2x2 20Gbps Type-C port (From B760 chipset)
1x 2.5G LAN (RJ45) port
2x Wi-Fi Antenna connectors (For MAG B760M MORTAR MAX WIFI & MAG B760M MORTAR WIFI?
5x audio jacks
1x Optical S/PDIF Out connector

Software

Operating System Supports An operating system (OS) is system software that manages computer hardware, software resources, and provides common services for computer programs.
Support for Windows 11 64-bit, Windows 10 64-bit
Bundled Software
Drivers
MSI Center
Intel Extreme Tuning Utility
MSI APP Player (BlueStacks)
CPU-Z MSI GAMING
Norton 360 Deluxe
AIDA64 Extreme - MSI Edition

Physical

Form Factor The motherboard's form factor indicates the shape and size specifications of the board.
mATX
Dimensions
243.84mmx243.84mm
