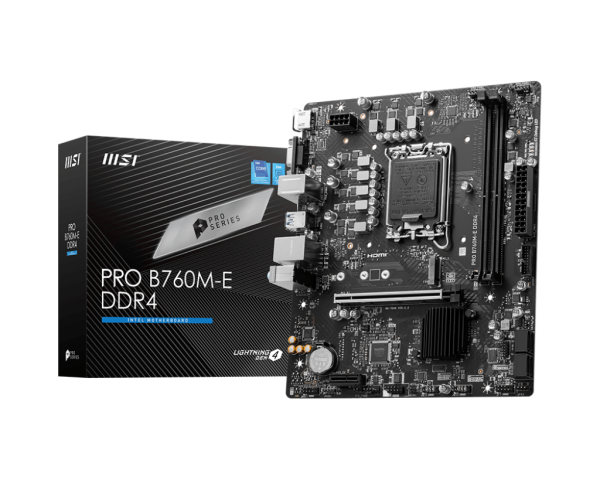

MSI B760M-E DDR4 LGA1700 Micro-ATX Motherboard

MSI B760M-E DDR4 LGA1700 Micro-ATX Motherboard

SKU : PRO B760M-E DDR4
Brand : MSI
Availablity : Online Only, In Stock
Ships within 1 and 3 days or pick up from our Seven Hills, NSW warehouse within 1 to 3 days
Chipset: Intel B760, RAM Capacity: upto 64GB (32GB each), DIMM Slots: 2, Form Factor: mATX, Dimensions: 200mmx236.16mm.
Ask a question about this product
$200.00

Buy Now

Estimated Shipping

Find

Pay what you see.

No surcharge On Credit Card, AMEX or Paypal. American express, master card, nab, Paypal, visa

Share

  • Description
  • Specifications
  • Reviews

Product Description

Manufacture # MSI | Model # PRO B760M-E DDR4



The PRO Series is tailored to professionals from all walks of life. The lineup features impressive performance and high quality, while aiming to provide users incredible experience. Users who care about productivity and efficiency can definitely count on the MSI PRO Series to assist you with multitasking and increasing efficiency.



Features:

  • Supports DDR4 Memory, Dual Channel DDR4 4800+MHz (OC)
  • Core Boost- With premium layout and digital power design to support more cores and provide better performance
  • Memory Boost- Advanced technology to deliver pure data signals for the best performance, stability and compatibility
  • Lightning Fast Experience- PCIe 4.0, Lightning Gen4 x4 M.2
  • AUDIO BOOST- Reward your ears with studio grade sound quality for the most immersive gaming experience
  • Steel Armor- Protecting VGA cards against bending and EMI for better performance, stability and strength



Overview:

  • Chipset: Intel B760
  • RAM Capacity: upto 64GB (32GB each)
  • DIMM Slots: 2
  • Form Factor: mATX
  • Dimensions: 200mmx236.16mm


Manufacturer Warranty: 03 Years Limited Warranty

Technical Specifications

General

Chipset A chipset is an electronic component in an integrated circuit known as a "Data Flow Management System" that manages the data flow between the processor, memory and peripherals.
Intel B760
Socket A CPU socket or CPU slot contains mechanical components providing mechanical and electrical connections between a processor and PCB. This allows for placing the CPU without soldering.
LGA 1700
Supports 12th/13th Gen Intel Core Processors, Pentium Gold and Celeron Processors
BIOS Basic Input/Output System, also known as the System BIOS is firmware used to provide runtime services for operating systems and programs to perform hardware initialization during the booting process.
1x 256 Mb flash
UEFI AMI BIOS
ACPI 6.4, SMBIOS 3.5
Multi-language
Unique Features
Mystic Light
User Scenario
Hardware Monitor
Frozr AI Cooling
True Colo
Audio Boost
Mystic Light SYNC
Ambient Devices Support
Memory Boost
Core Boost
PCI-E Steel Armor
EZ M.2 Clip
CPU Cooler Tuning
PCI-E Steel Armor
Click BIOS 5

Memory

RAM Capacity The total memory that can be added to a computer depends on the address registers built into the CPU.
upto 64GB (32GB each)
DIMM Slots DIMM (dual in-line memory module) slots are the place on your motherboard where the RAM goes.
2
RAM Frequency Supports RAM frequency is measured in MHz and usually immediately follows the DDR version in the RAM spec.
DDR4 4800(OC) / 4600(OC) / 4400(OC) / 4266(OC) / 4200(OC) / 4000(OC) / 3800(OC) / 3733(OC) / 3600(OC) / 3466(OC) / 3400(OC) / 3333(OC) / 3200(JEDEC) / 2933(JEDEC) / 2666(JEDEC) / 2400(JEDEC) / 2133(JEDEC)

Onboard Graphics

With HDMI
1x HDMI
Support HDMI™ 1.4 with HDR, maximum resolution of 4K 30Hz
With DisplayPort

Wireless Communication

Wi-Fi Wi-Fi is a wireless networking technology that allows devices such as computers, mobile devices, and other equipments to interface with the Internet.
Bluetooth Bluetooth is a wireless technology that enables the exchange of data between devices using wavelength.

Slots And Ports

Expansion Slots An expansion slot is a socket on the motherboard that is used to insert an expansion card, which provides additional features to a computer such as video, sound, graphics, ethernet or memory.
1x PCI-E x16 slot
1x PCI-E x1 slot
M.2_1 Source (From Chipset) supports up to PCIe 4.0 x4 / SATA mode, supports 2280/2260/2242 devices
Internal I/O Connectors An I/O (Input/Output) port is a socket on a computer that a cable is plugged into. The port connects the CPU to a peripheral device via a hardware interface or to the network via a network interface.
1x Power Connector(ATX_PWR)
1x Power Connector(CPU_PWR)
1x CPU Fan
2x System Fan
2x Front Panel (JFP)
1x Chassis Intrusion (JCI)
1x Front Audio (JAUD)
1x Com Port (JCOM)
1x RGB LED connector(JRGB)
1x TPM pin header(Support TPM 2.0)
2x USB 2.0 ports
1x USB 3.2 Gen1 Type A ports
Back Panel Connectors The back or rear panel is the portion of the motherboard that allows you to connect external devices, such as your monitor, speakers, keyboard, mouse etc.
1x HDMI port
1x VGA port
1x PS/2 keyboard/ mouse combo port
4x USB 2.0 Type-A ports (From B760 chipset)
2x USB 3.2 Gen 1 5Gbps Type-A ports (From B760 chipset)
1x LAN (RJ45) port
3x audio jacks

Software

Operating System Supports An operating system (OS) is system software that manages computer hardware, software resources, and provides common services for computer programs.
Support for Windows 11 64-bit, Windows 10 64-bit
Bundled Software
Drivers
MSI Center
Intel Extreme Tuning Utility
Realtek Console
CPU-Z MSI GAMING
Norton 360 Deluxe
7-ZIP
AIDA64 Extreme - MSI Edition

Physical

Form Factor The motherboard's form factor indicates the shape and size specifications of the board.
mATX
Dimensions
200mmx236.16mm
