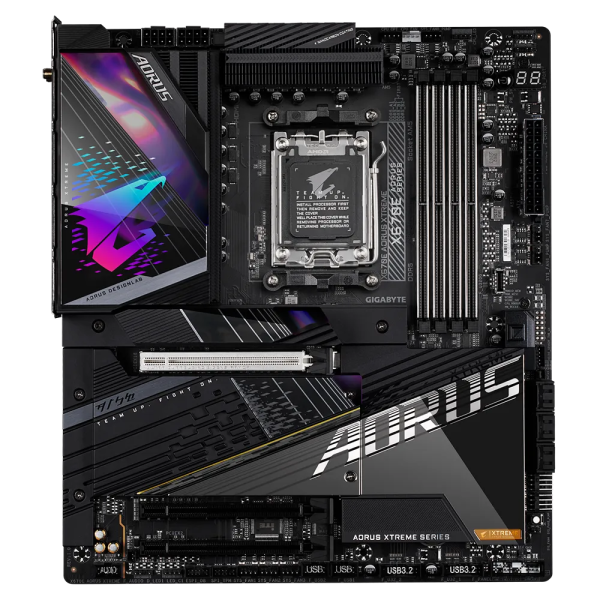

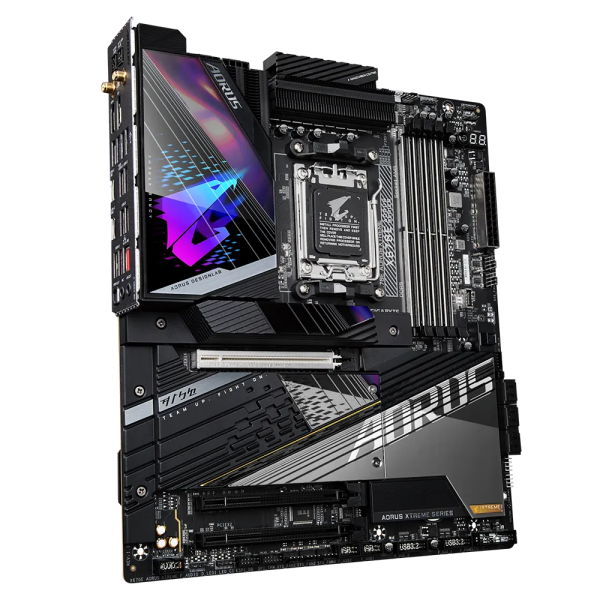

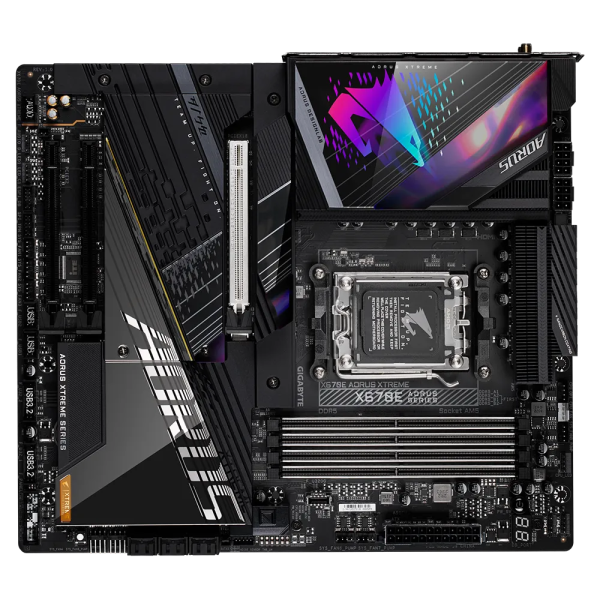

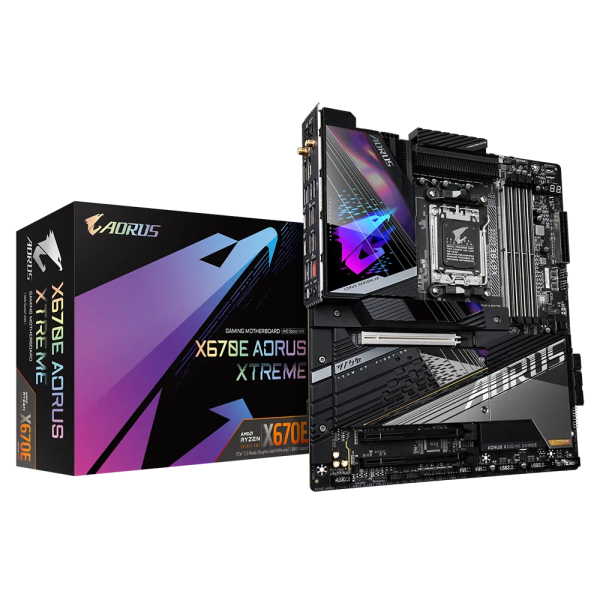

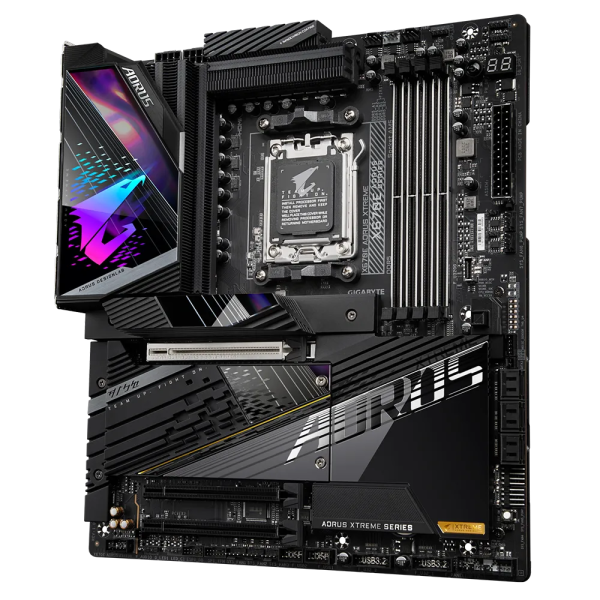

Name: Gigabyte X670E AORUS XTREME DDR5 AM5 E-ATX Motherboard
Brand: Gigabyte
SKU: X670E AORUS XTREME
Price: 1171 AUD
Availability: InStock

Gigabyte X670E AORUS XTREME DDR5 AM5 E-ATX Motherboard

SKU : X670E AORUS XTREME

Estimated Shipping

Find

Description
Specifications
Reviews

Product Description

Manufacture # Gigabyte | Model # X670E AORUS XTREME

Gigabyte Motherboards' unparalleled performance is guaranteed by innovative and optimized thermal design to ensure the best CPU, Chipset, SSD stability and low temperatures under full load application and gaming performance.

Features:

AMD Socket AM5: Supports AMD Ryzen 7000 Series Processors
Unparalleled Performance: Direct 18+2+2 Phases Digital VRM Solution
Dual Channel DDR5: 4*SMD DIMMs with AMD EXPO & Intel XMP Memory Module Support
Next Generation Storage: 4*PCIe 5.0 x4 M.2 Connectors
Fins-Array III & M.2 Thermal Guard III: To Ensure VRM Power Stability & 25110 PCIe 5.0 M.2 SSD Performance
EZ-Latch Plus: SMD PCIe 5.0 x16 Slot & M.2 Connectors with Quick Release & Screwless Design
Hi-Fi Audio with DTS:X Ultra: ALC1220 CODEC and Rear ESS SABRE Hi-Fi 9118 DAC with Front ESSential USB DAC Bundled
Fast Networks: Marvell AQtion 10GbE LAN & Intel Wi-Fi 6E 802.11ax
Extended Connectivity: DP, HDMI, USB-C 10Gbps, Dual USB-C 20Gbps and Upcoming GIGABYTE USB4 AIC Support
Q-Flash Plus: Update BIOS Without Installing the CPU, Memory and Graphics Card

Overview:

Chipset: AMD X670
RAM Capacity: upto 192GB (48GB each)
DIMM Slots: 4
OS: Support for Windows 11/10 64-bit
Form Factor: E-ATX

Manufacturer Warranty: 03 Years Limited Warranty

Write Review

Reviews

Write Review

Reviews

Be the first to write a review

Ask Question

Questions and Answers

Ask Question

Questions and Answers

Be the first to ask a question

Technical Specifications

General

Chipset

AMD X670

Socket

AM5
support for AMD Ryzen 7000 Series Processors

BIOS

1 x 256 Mbit flash
Use of licensed AMI UEFI BIOS
PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0

Unique Features

Support for GIGABYTE Control Center (GCC)
Support for Q-Flash
Support for Q-Flash Plus
Support for Smart Backup

Memory

RAM Capacity

upto 192GB (48GB each)

DIMM Slots

RAM Frequency Supports

DDR5 6666(OC) / 6600(OC) / 6400(OC) / 6200(OC) / 6000(OC) / 5600(OC) / 5200 / 4800 / 4400 MT/s memory modules

Onboard Graphics

With HDMI

1 x HDMI port
Supporting a maximum resolution of 4096x2160@60 Hz

With DisplayPort

1 x DisplayPort
Supporting a maximum resolution of 3840x2160@144 Hz

Wireless Communication

Wi-Fi

Intel Wi-Fi 6E AX210
WIFI a, b, g, n, ac, ax, supporting 2.4/5/6 GHz carrier frequency bands

Bluetooth

5.3

Slots And Ports

Expansion Slots

1 x PCI Express x16 slot
1 x M.2 connector (Socket 3, M key, type 25110/2280 PCIe 5.0* x4/x2 SSD support) (M2A_CPU)

Internal I/O Connectors

1 x 24-pin ATX main power connector
2 x 8-pin ATX 12V power connectors
1 x CPU fan header
1 x water cooling CPU fan header
4 x system fan headers
4 x system fan/water cooling pump headers
2 x addressable LED strip headers
2 x RGB LED strip headers
1 x CPU cooler LED strip/RGB LED strip header
4 x M.2 Socket 3 connectors
6 x SATA 6Gb/s connectors
1 x front panel header
1 x front panel audio header
1 x USB Type-C header, with USB 3.2 Gen 2x2 support
2 x USB 3.2 Gen 1 headers
2 x USB 2.0/1.1 headers
1 x noise detection header
1 x THB_U4 add-in card connector
1 x Trusted Platform Module header (For the GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0 module only)
1 x power button
1 x reset button
2 x temperature sensor headers
1 x reset jumper
1 x Clear CMOS jumper
Voltage Measurement Points

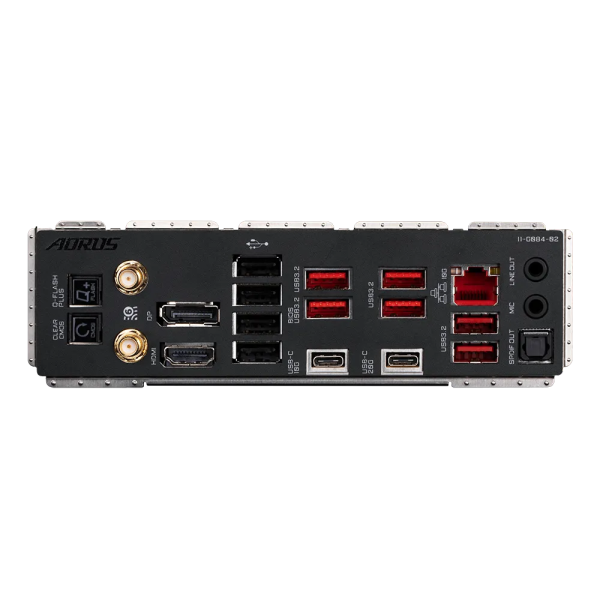

Back Panel Connectors

1 x Q-Flash Plus button
1 x Clear CMOS button
2 x SMA antenna connectors (2T2R)
1 x DisplayPort
1 x HDMI port
1 x USB Type-C port, with USB 3.2 Gen 2x2 support
1 x USB Type-C port, with USB 3.2 Gen 2 support
6 x USB 3.2 Gen 2 Type-A ports (red)
4 x USB 2.0/1.1 ports
1 x RJ-45 port
1 x optical S/PDIF Out connector
2 x audio jacks
