GP-UD750GM 750W power supply with 80 Plus Gold certification and Active PFC. Features high efficiency of 90%, hydraulic bearing fan, full protection (OVP, OPP, SCP), and >100,000 hours MTBF. Comes with flat all-black cables and various connector types.
100% Guarantee Safe Checkout
Description
Manufacture: Gigabyte | Model: GP-UD750GM

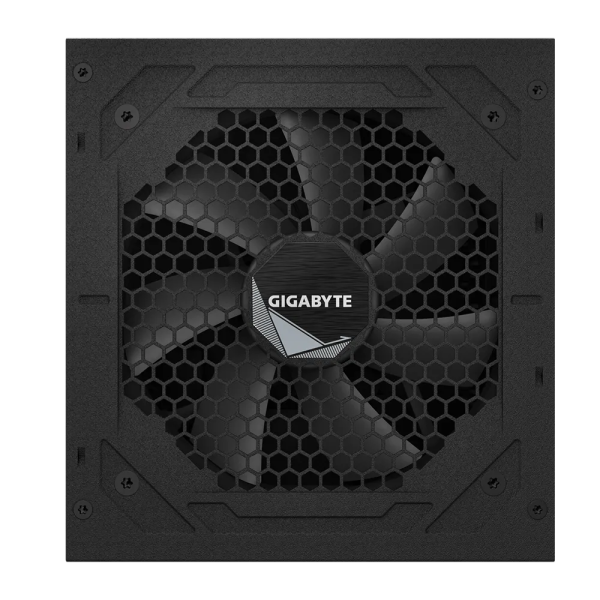

The GP-UD750GM is a high-performance 750W power supply built for gaming PCs and workstations. Designed to meet the Intel Form Factor ATX 12V v2.31 standard, it provides stable and efficient power delivery for modern components. With an 80 PLUS Gold certification, it ensures up to 90% efficiency at typical loads, reducing power loss and optimizing performance. The unit is equipped with a 120mm Hydraulic Bearing (HYB) fan, offering efficient cooling while maintaining quiet operation. Engineered for durability, it has an MTBF of over 100,000 hours and multiple built-in safety protections, including OVP, OPP, SCP, UVP, OCP, and OTP, safeguarding components from electrical issues. The PSU features fully modular, flat black cables that enhance cable management and airflow. Supporting full-range AC input (100-240V) with active PFC (>0.9 typical), it optimizes energy efficiency and ensures stable power output. With compact dimensions of 150 x 140 x 86 mm, the GP-UD750GM is designed for easy installation in various chassis sizes while offering reliable power for high-performance builds.
Model | GP-UD750GM |
Type | Intel Form Factor ATX 12V v2.31 |
PFC | Active PFC (>0.9 typical) |
Input Voltage | 100-240 Vac (full range) |
Input Current | 12-6A |
Input Frequency | 60-50 Hz |
Output Capacity | 750W |
Dimension | 150 x 140 x 86 mm |
Fan Type | 120mm Hydraulic Bearing (HYB) Fan |
80 PLUS | Gold |
Efficiency | 90% at typical load |
MTBF | >100,000 hours |
Protection | OVP, OPP, SCP, UVP, OCP, OTP |
Power Good Signal | 100-150ms |
Hold Up Time | >16ms |
Cable Type | Flat, All Black |
Connectors | ATX/MB 20+4 Pin x 1: 610mm*1 CPU/EPS 4+4 Pin x 2: 600mm*2 PCI-e 6+2 Pin x 4: 600mm+150mm*2 SATA x 8: 600mm+150mm+150mm+150mm*2 4 Pin Peripheral x 3 + 4-Pin Floppy x 1: 500mm+120mm+120mm+150mm*1 |
