Sku: ROG-STRIX-850P-GAMING
Brand: Asus
Category: Power Supplies
Availability: On Order
On Order - These items are sourced upon request and may take longer to deliver. We will confirm availability once your order is received, as some products may occasionally be discontinued or unavailable.
Shipping Calculator
Find
Discover the 850W ATX12V Power Supply with 80Plus Platinum efficiency, Active PFC, and advanced protection features. Designed with 0dB Technology for quieter operation, this PSU includes PCI-E, SATA, and peripheral connectors. Perfect for high-performance setups.
We Accept
Manufacture: Asus | Model: ROG-STRIX-850P-GAMING

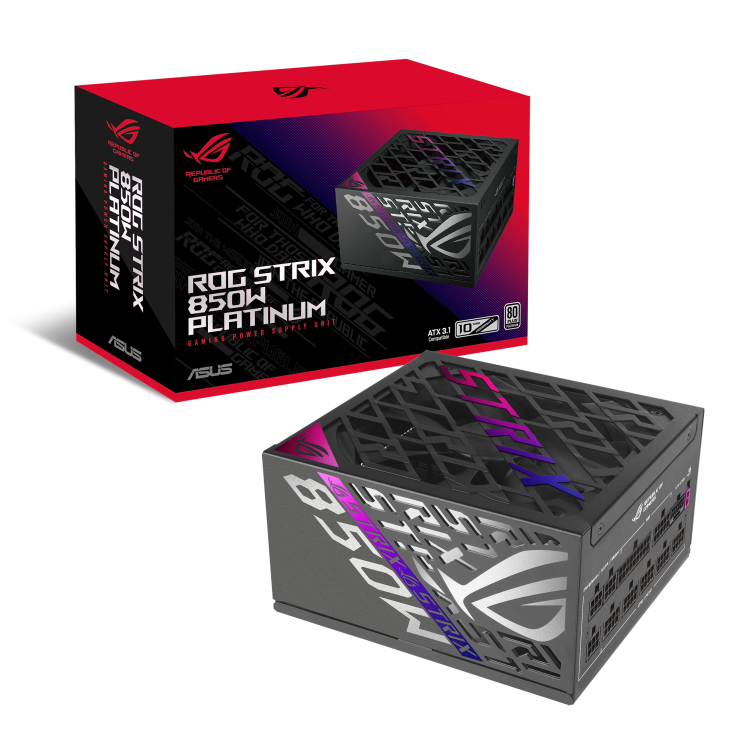

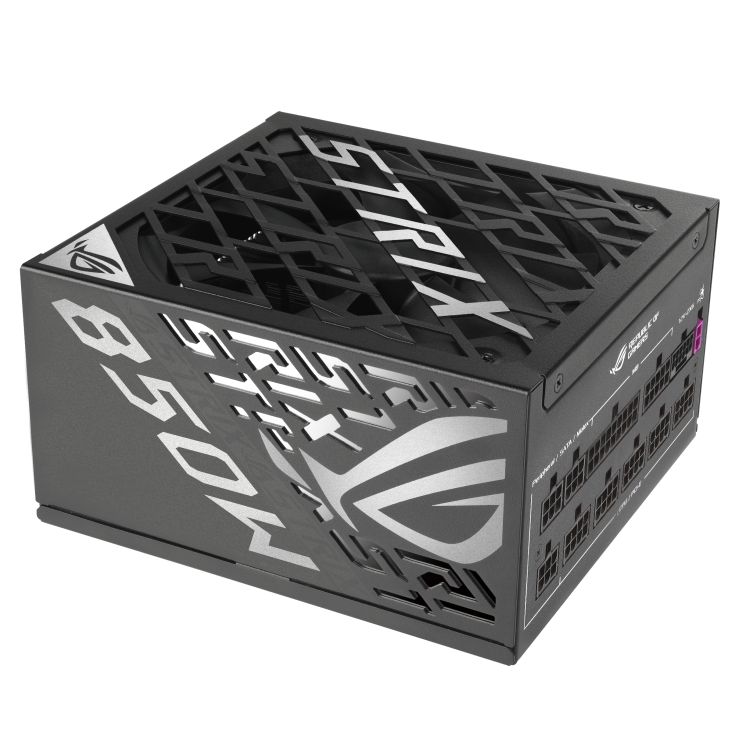

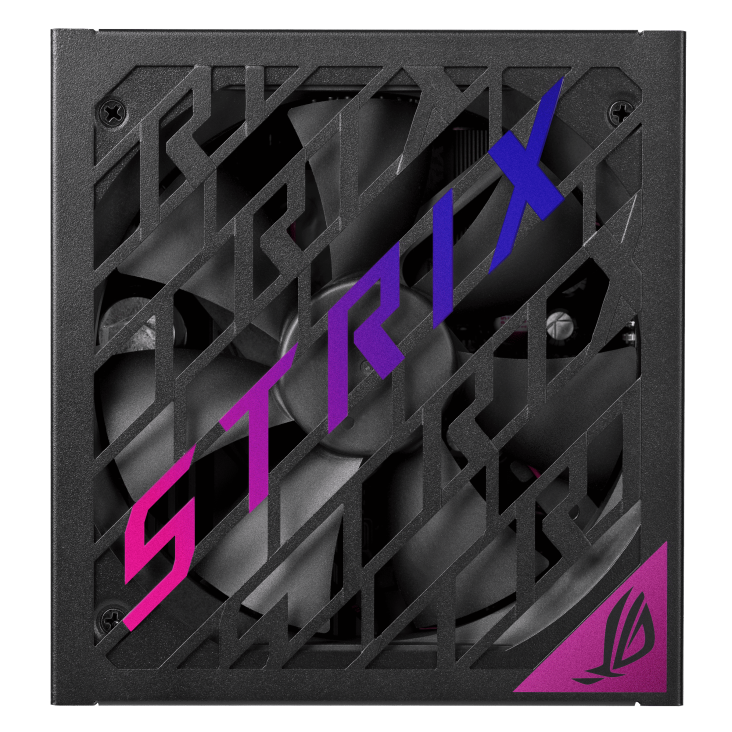

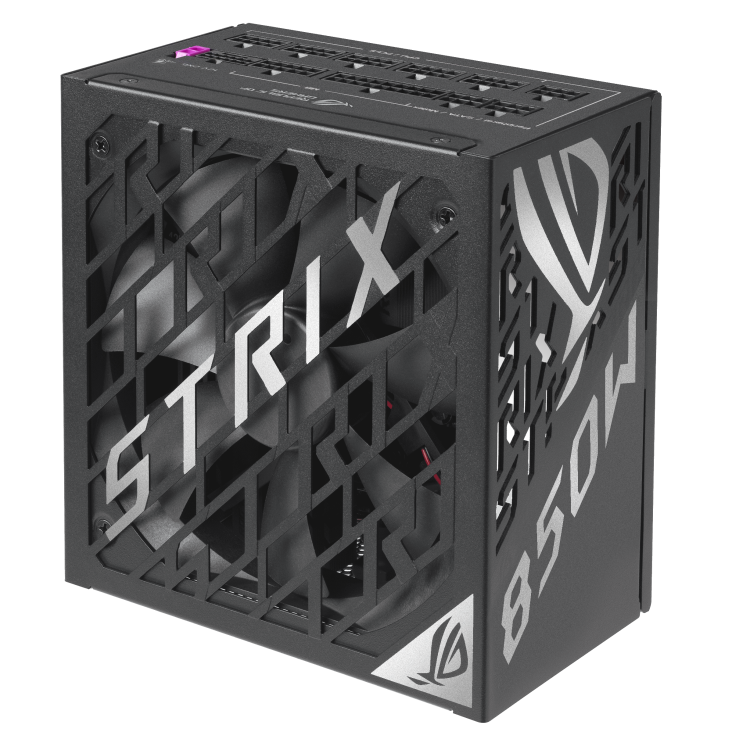

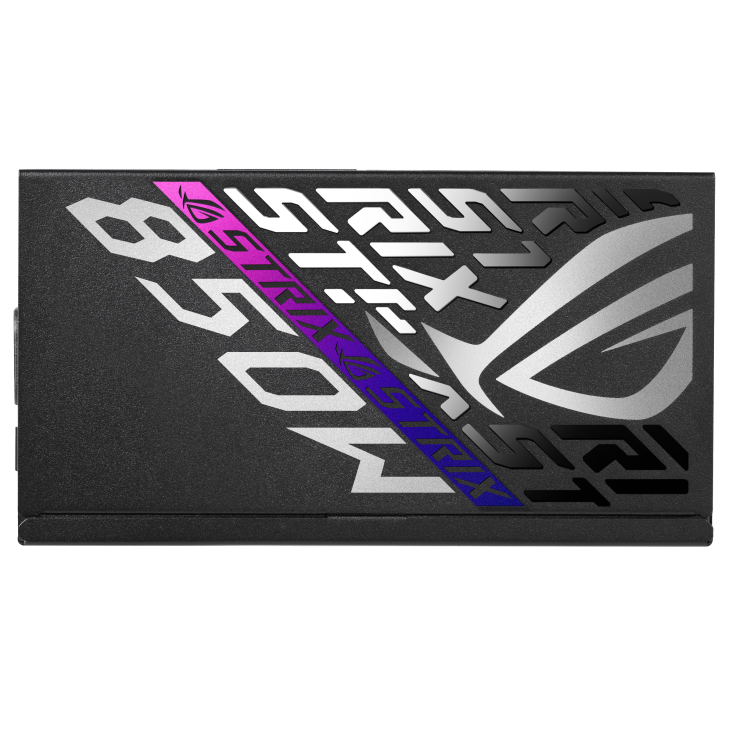

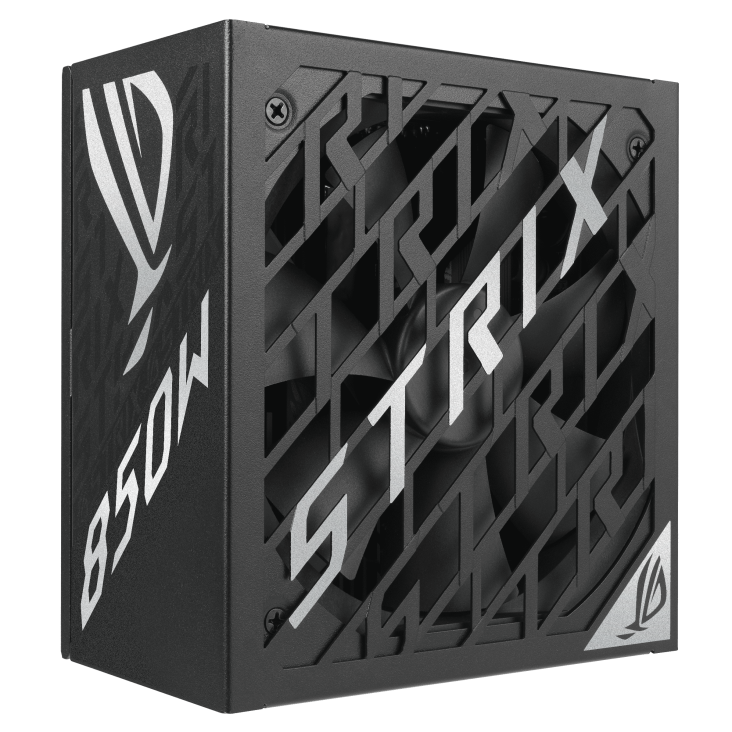

The ROG Strix 850W Platinum power supply is engineered for high-performance systems, offering stable power delivery with an emphasis on efficiency. Featuring GaN MOSFET technology, it improves power efficiency by up to 30%, while also providing a more organized internal layout for cooler operation. The patented "GPU-FIRST" voltage sensing with an intelligent voltage stabilizer enhances voltage delivery by up to 45% to your graphics card, ensuring smoother gameplay and steady performance. With large ROG heatsinks, the PSU efficiently lowers temperatures and reduces noise compared to standard reference designs. The dual ball fan bearings offer up to twice the lifespan of traditional sleeve bearings. Additionally, the 0dB technology allows for silent operation during light gaming. Compliant with ATX 3.1 standards, it offers enhanced voltage and current regulation, while the PCIe 5.1-ready native 12V-2x6 connector ensures support for next-gen graphics cards. 80 PLUS Platinum certified, the PSU guarantees industry-leading power efficiency. Backed by a 10-year warranty, the ROG Strix 850W Platinum ensures reliable, long-lasting performance.
| Form Factor | ATX12V |
| PFC Type | Active PFC |
| ATX Standard | ATX 3.1 |
| Dimensions | 160 x 150 x 86 mm |
| Efficiency | 80Plus Platinum |
| MTBF | >120,000 hrs @ 25°C |
| Protection Features | OPP, OVP, UVP, SCP, OCP, OTP |
| Hazardous Materials | ROHS |
| AC Input Range | 100-240Vac |
| DC Output Voltage | +3.3V, +5V, +12V, -12V, +5Vsb |
| Maximum Load | +3.3V: 25A, +5V: 25A, +12V: 70.8A, -12V: 0.3A, +5Vsb: 3A |
| Combined Load | 130W (+3.3V & +5V), 850W (+12V), 3.6W (-12V), 15W (+5Vsb) |
| Total Output | 850W |

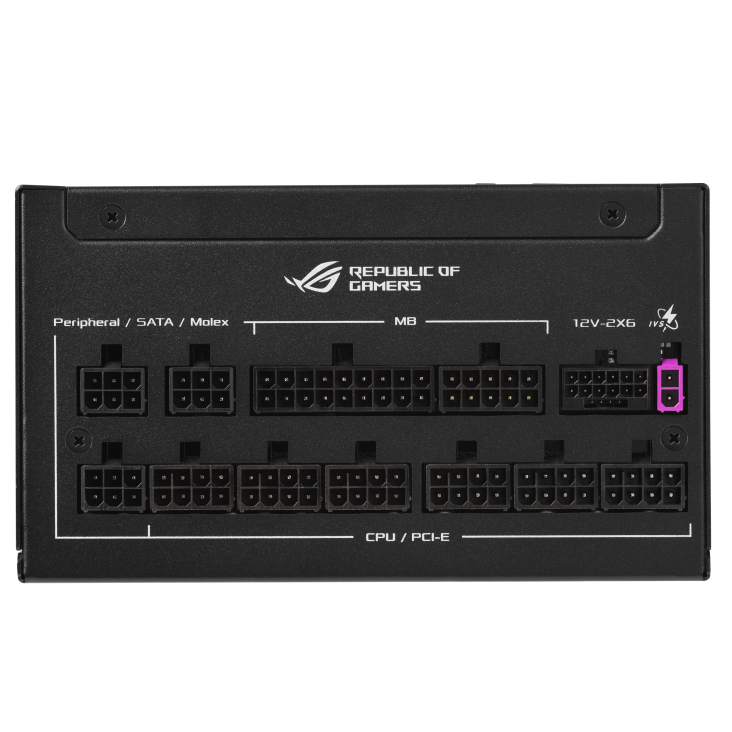

| Cable Connectors | MB 24/20-pin x 1 CPU 4+4-pin x 2 PCI-E 16-pin x 1 (both PSU & component side) PCI-E 6+2-pin x 3 SATA x 6 PERIPHERAL x 3 |
| Package Contents | Power Cord x 1 Motherboard Power Cable x 1 (610mm) CPU Cable x 2 (1000mm) PCI-E Gen 5.1 (16-pin-to-16-pin) Cable x 1 (750mm) PCI-E (8-pin-to-6+2pin) Cable x 3 (750mm) SATA 1-to-3 Cable x 2 (400+120+120mm) Peripheral 1-to-3 Cable x 1 (400+150+150mm) ROG Strix DIY sticker x 1 User Manual x 1 |
| Weight | 1.78 kg (single PSU) |
| Cybenetics Noise Level Certification | TBD |
| 0dB Technology | Supported - The fan shuts off entirely when the PSU is under certain load |

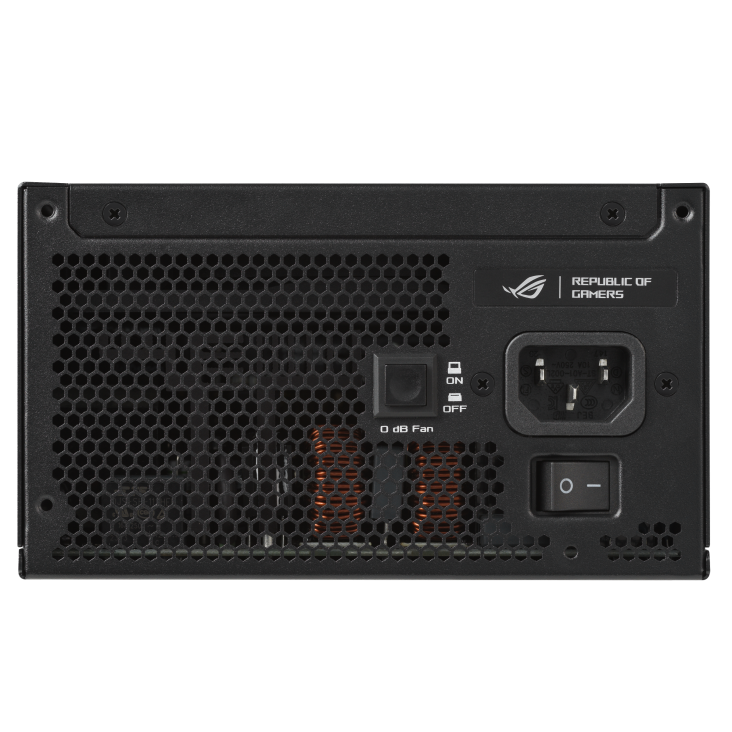

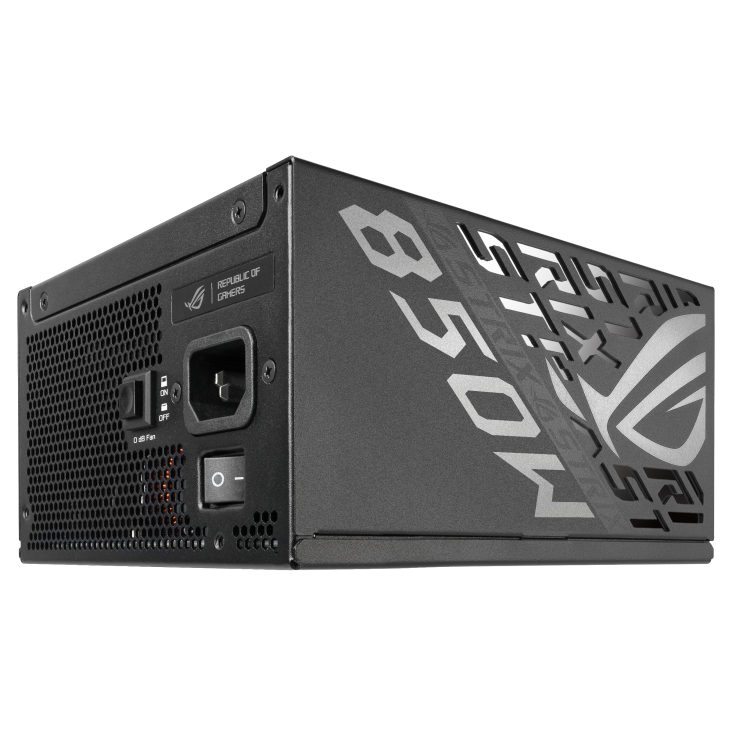

| 0dB Fan Button | Yes - When ON, the fan spins only at certain loads. When OFF, the fan spins continuously at all loads. |
