Explore the high-performance 1200W ATX12V Power Supply with 80Plus Platinum efficiency, Active PFC, and robust protection features. Offering a total of 1200W output, the PSU includes 6 SATA connectors, 4 PCI-E connectors, and more. Enjoy quiet operation with 0dB Technology and Cybenetics A-level noise certification.
We Accept
Manufacture: Asus | Model: ROG-STRIX-1200P-GAMING

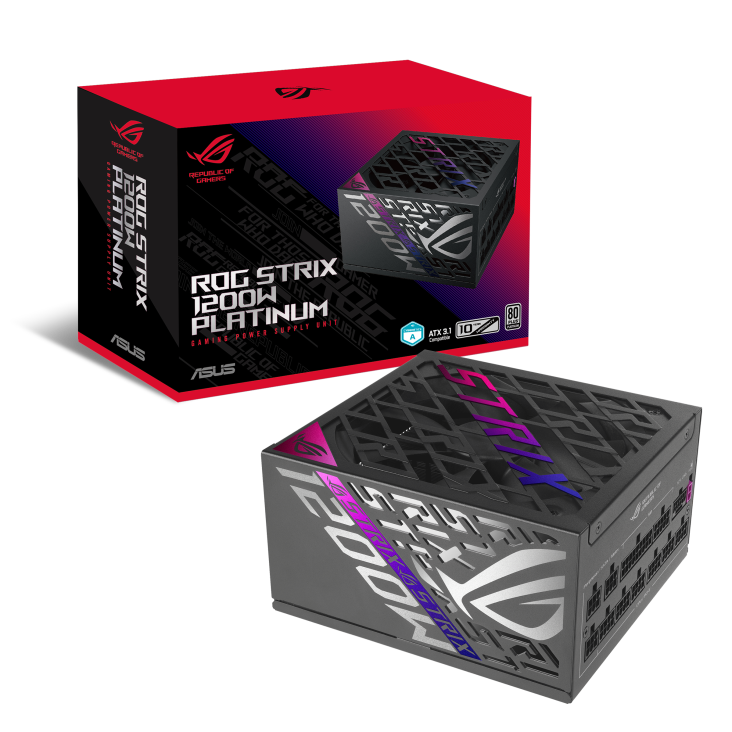

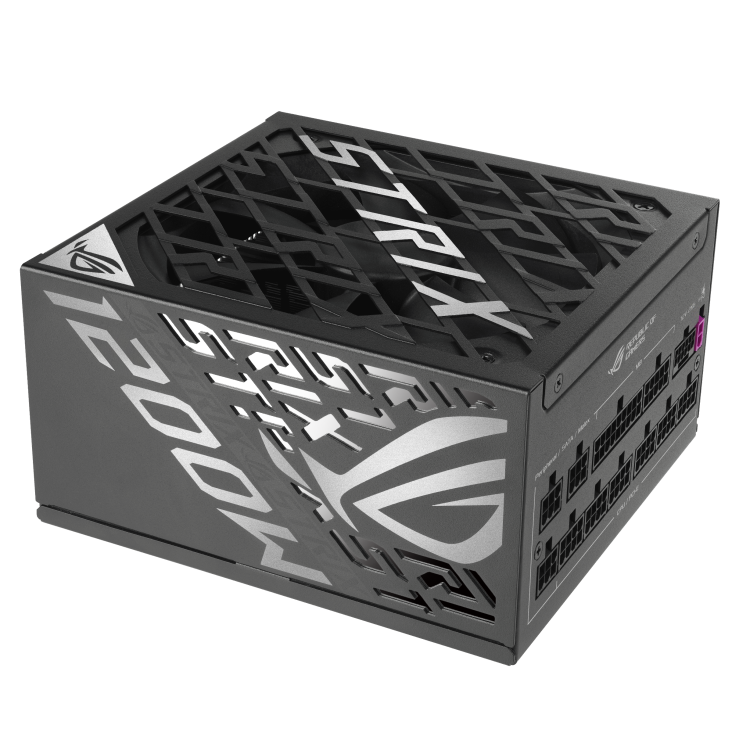

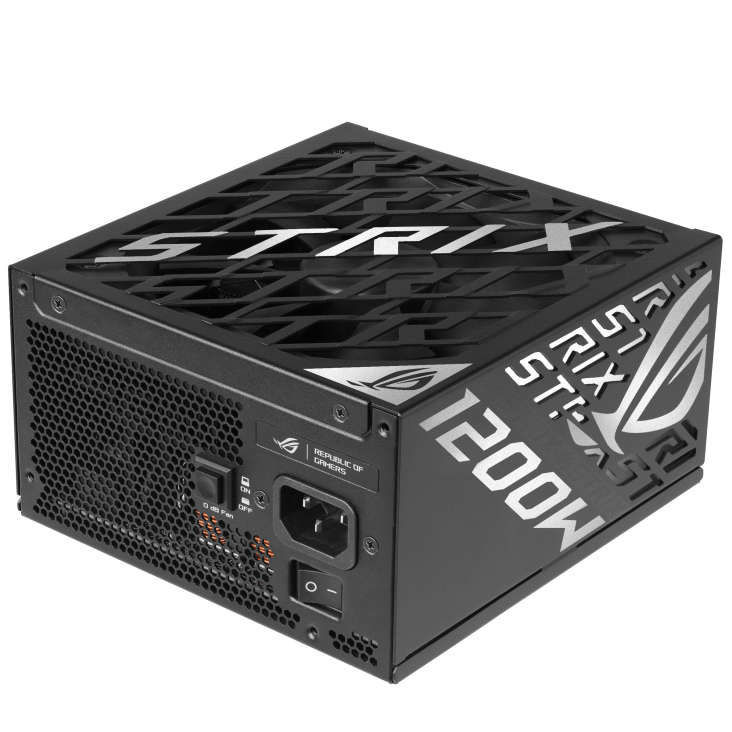

The ROG Strix 1200W Platinum power supply combines advanced technology and exceptional performance, engineered to provide stable power delivery for high-performance systems. Featuring GaN MOSFET technology, this PSU offers superior power efficiency, increasing it by up to 30% while maintaining a cooler internal layout. The patented "GPU-FIRST" voltage sensing and intelligent voltage stabilizer further enhance voltage delivery to your graphics card by up to 45%, ensuring smoother gameplay and consistent performance. With large ROG heatsinks, it efficiently lowers temperatures and noise compared to reference designs. The dual ball fan bearings ensure longer lifespan, while the 0dB technology delivers near-silent operation during light gaming. Compliant with ATX 3.1 and PCIe 5.1 standards, this PSU provides future-proof performance, supporting next-gen graphics cards with its native 12V-2x6 connector. Certified with Lambda A for low noise levels under 25dB and 80 PLUS Platinum certification, it boasts industry-leading power efficiency. Backed by a 10-year warranty, the ROG Strix 1200W Platinum is built to deliver long-lasting, reliable performance.
| Form Factor | ATX12V |
| PFC Type | Active PFC |
| ATX Standard | ATX 3.1 |
| Dimensions | 160 x 150 x 86 mm |
| Efficiency | 80Plus Platinum |
| MTBF | >120,000 hrs @ 25°C |
| Protection Features | OPP, OVP, UVP, SCP, OCP, OTP |
| Hazardous Materials | ROHS |
| AC Input Range | 100-240Vac |
| DC Output Voltage | +3.3V, +5V, +12V, -12V, +5Vsb |
| Maximum Load | +3.3V: 25A, +5V: 25A, +12V: 100A, -12V: 0.3A, +5Vsb: 3A |
| Combined Load | 130W (+3.3V & +5V), 1200W (+12V), 3.6W (-12V), 15W (+5Vsb) |
| Total Output | 1200W |

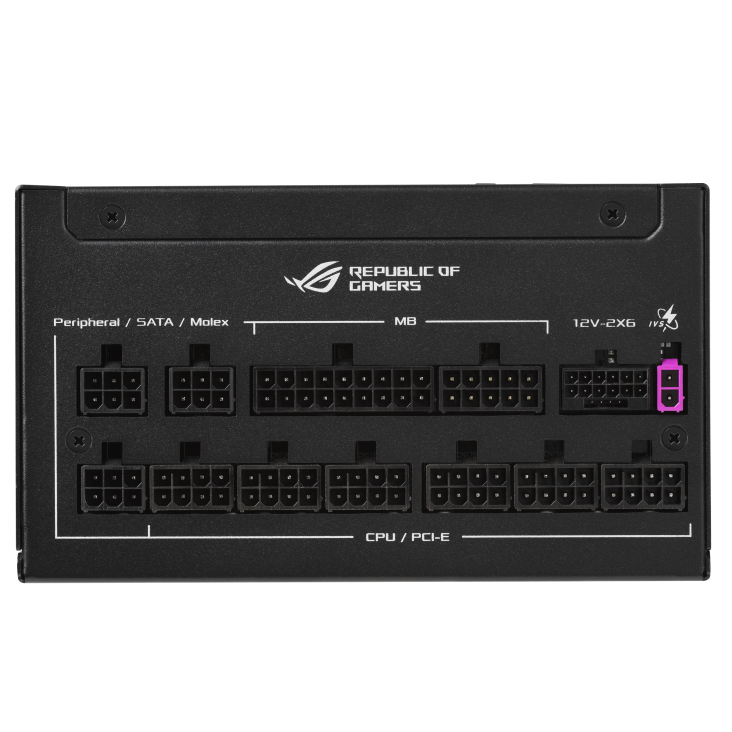

| Cable Connectors | MB 24/20-pin x 1 CPU 4+4-pin x 2 PCI-E 16-pin x 1 (both PSU & component side) PCI-E 6+2-pin x 4 SATA x 6 PERIPHERAL x 3 |
| Package Contents | Power Cord x 1 Motherboard Power Cable x 1 (610mm) CPU Cable x 2 (1000mm) PCI-E Gen 5.1 (16-pin-to-16-pin) Cable x 1 (750mm) PCI-E (8-pin-to-6+2pin) Cable x 4 (750mm) SATA 1-to-3 Cable x 2 (400+120+120mm) Peripheral 1-to-3 Cable x 1 (400+150+150mm) ROG Strix DIY sticker x 1 User Manual x 1 |
| Weight | 1.84 kg (single PSU) |
| Cybenetics Noise Level Certification | A |
| 0dB Technology | Supported - The fan shuts off entirely when the PSU is under certain load |

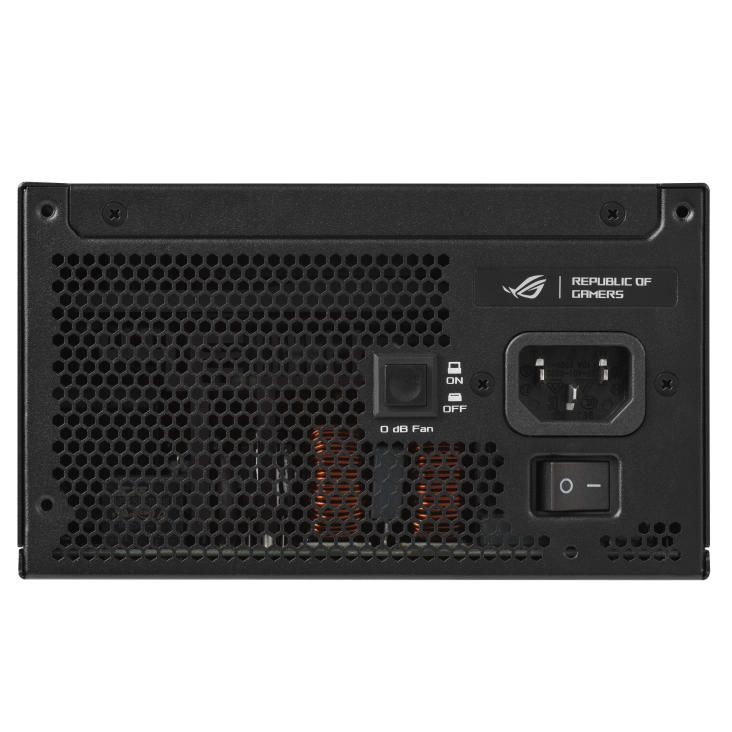

| 0dB Fan Button | Yes - When ON, the fan spins only at certain loads. When OFF, the fan spins continuously at all loads. |
