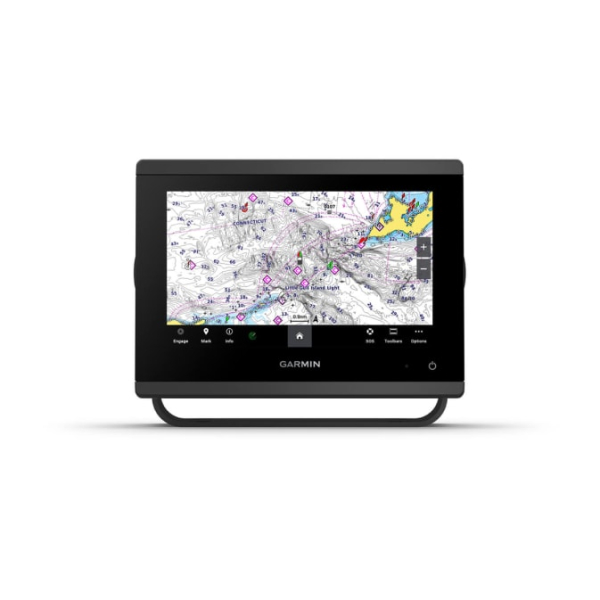

Name: Garmin Gpsmap 753xsv Traditional Chirp Sonar with Mapping
Brand: Garmin
SKU: 010-02365-62
Price: 1792 AUD
Availability: InStock

Garmin Gpsmap 753xsv Traditional Chirp Sonar with Mapping

SKU : 010-02365-62

Brand : Garmin

Availablity : Online Only, In Stock
Ships within 1 and 3 days from our Seven Hills, NSW warehouse

Estimated Shipping

Find

Description
Specifications
Reviews

Product Description

Manufacture # Garmin | Model # 010-02365-62

With its sleek design, powerful processing and upgraded IPS display, this advanced 7”, 9” or 12” chartplotter integrates seamlessly into your Garmin marine system.

Features:

Easily integrate with more engines.
Connect to compatible third-party devices with OneHelm digital switching.
Easily build your marine system using the best of network connectivity.
Navigate any waters with preloaded Garmin Navionics+ charts and mapping.
See below your boat with built-in sonar capabilities.
Manage your marine experience from nearly anywhere.

Overview:

Display Size: 6.1" X 3.5"; 7.0" Diagonal (15.4 X 9.1 Cm; 17.8 Cm Diagonal)
Display Resolution: 1024 X 600 Pixels
Display Type: Wsvga
Touchscreen: Yes

Manufacturer Warranty: 01 Year Limited Warranty

Technical Specifications

General :-
Dimension	7.6" X 5.5" X 2.9" (19.2 X 14.0 X 7.4 Cm)
Touchscreen	Yes
Input	Touchscreen
Display Size	6.1" X 3.5"; 7.0" Diagonal (15.4 X 9.1 Cm; 17.8 Cm Diagonal)
Display Resolution	1024 X 600 Pixels
Display Type	Wsvga
Weight	2.8 Lbs (1.3 Kg)
Waterproof	Ipx7
Mounting Options	Bail, Flush Or Flat (Garmin Does Not Offer Any Hardware Or Accessories For A Flat-mount Installation. Professional Tools And Knowledge Is Required.)
Maps & Memory :-
Accepts Data Cards	2 Microsd Cards (Back Of Unit)
Waypoints	5000
Track Points	50000
Tracks	50 Saved Tracks
Navigation Routes	100
Sensors :-
Has Built-in Receiver	Yes
Receiver	10 Hz
Nmea 2000 Compatible	Yes
Nmea 0183 Compatible	Yes
Gps	Yes
Glonass	Yes
Galileo	Yes
Supports Waas	Yes
Built-in Maps :-
Built-in Auto Guidance+	Yes
Garmin Navionics+ Inland & Coastal	Yes
Tide Tables	Yes
Optional Map Support :-
Garmin Navionics+	Yes
Garmin Navionics Vision+	Yes
Topo	Yes
Standard Mapping	Yes
Garmin Quickdraw Contours	Yes
Raster Chart Support	Yes
Chartplotter Features :-
Smart Mode Compatible	Yes
Ais	Yes
Dsc	Yes
Supports Fusion-link Compatible Radios	Yes
Gsd Black Box Sonar Support	Yes
Gcv Black Box Sonar Support	Yes
Activecaptain Mobile Planning Compatible	Yes
Grid (Garmin Remote Input Device) Compatible	Yes
Wireless Remote Compatible	Yes
Sailing Features	Yes
Spoken Audio Alerts	Yes
Onehelm Support	Yes
Electrical Features :-
Power Input	10 To 32 Vdc
Typical Current Draw At 12 Vdc	1.18 A
Maximum Current Draw At 12 Vdc	2.96 A
Maximum Power Usage At 10 Vdc	35.9w
Sonar Features & Specifications :-
Displays Sonar	Yes
Power Output	1 Kw
Traditional Sonar (Dual Frequency/Beam)	Built-in (Single Channel Chirp, 70/83/200 Khz, L, M, H Chirp)
Clearvu	Built-in 260/455/800/1000/1200 Khz
Sidevu	Built-in 260/455/800/1000/1200 Khz
Panoptix Sonar	Yes
Livescope	Yes
Connections :-
Nmea 2000 Ports	1
Connections Nmea0183 Input Ports	1
Nmea 0183 Input (Tx) Ports	1
Video Input Ports	1 (Bnc Composite)
J1939 Ports	1
Garmin Marine Network Ports	1
12-pin Transducer Ports	1
Usb Ports	Yes
Bnc External Gps Antenna Port	Yes
Bluetooth Pairing	Yes
Ant+ (Connectivity)	Yes
Garmin Wi-fi Network (Local Connection)	Yes
