Advantech 11.6" TFT LCD Touch Monitor Black

SKU : USC-M3P-BST00
Brand : ADVANTECH
Availablity : on order
On Order items usually have to be ordered in and may take bit longer to get them delivered from our Seven Hills, NSW warehouse
Display: 11.6" HD TFT, Touch Screen: Yes, Audio: Speak 2W x 1, Output: 1 x VGA port, 1 x HDMI port, VESA: 75 x 75 mm, Warranty: 01 Year, USC-M3P-BST00.
Ask a question about this product
$689.00

Estimated Shipping

Pay what you see.

No surcharge On Credit Card, AMEX or Paypal. American express, master card, nab, Paypal, visa

Share

  • Description
  • Specifications
  • Reviews

Product Description

Manufacture # Advantech | Model # USC-M3P-BST00

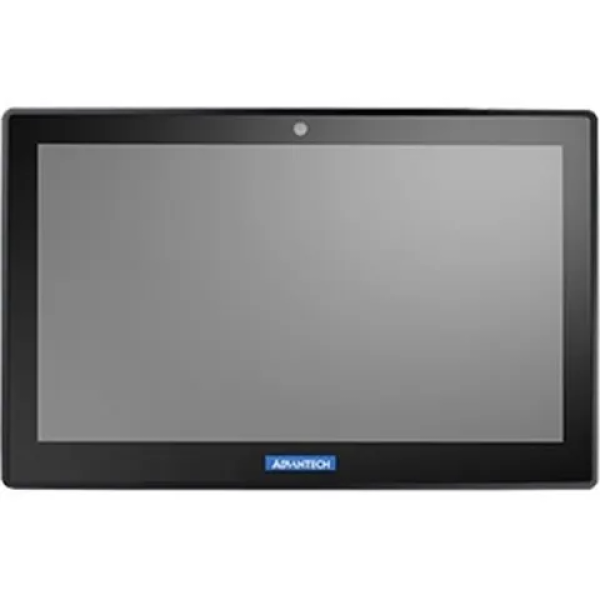

The Advantech 11.6" TFT LCD Touch Monitor Black is a rugged, industrial-grade touch monitor that is ideal for use in harsh environments. It features a 11.6" TFT LCD display with a resolution of 1366x768, a P-CAP touch panel, and an IP65 front panel rating. The monitor also supports 75x75mm VESA mounting, making it easy to mount on a wall or other surface.



Features:

  • 11.6" touch monitor display with LED backlight
  • Flat and bezel-free front P-CAP touch panel design
  • Reserved side hatch for optional peripheral

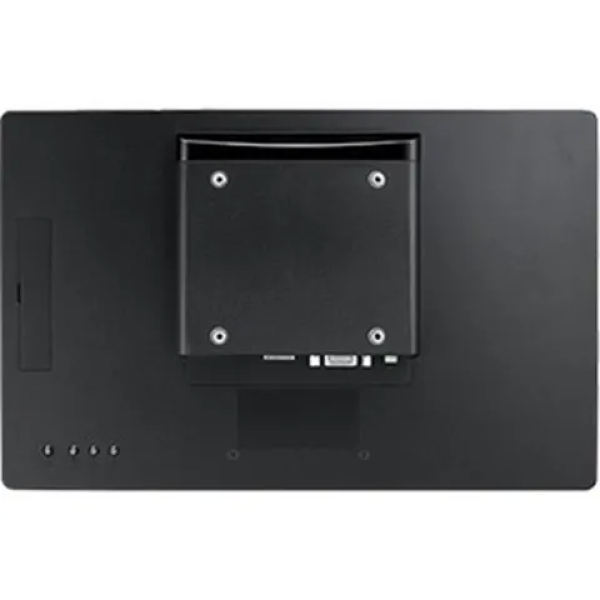

  • Supports 75x75mm VESA mount, wall mount and panel mount
  • Ultra slim 12mm of front panel
  • IP65 for front panel for dust and water resistance
  • Touch monitors for POS, kiosks, digital signage, HMI and more



Overview:

  • Display: 11.6" HD TFT
  • Touch Screen: Yes
  • Audio: Speak 2W x 1

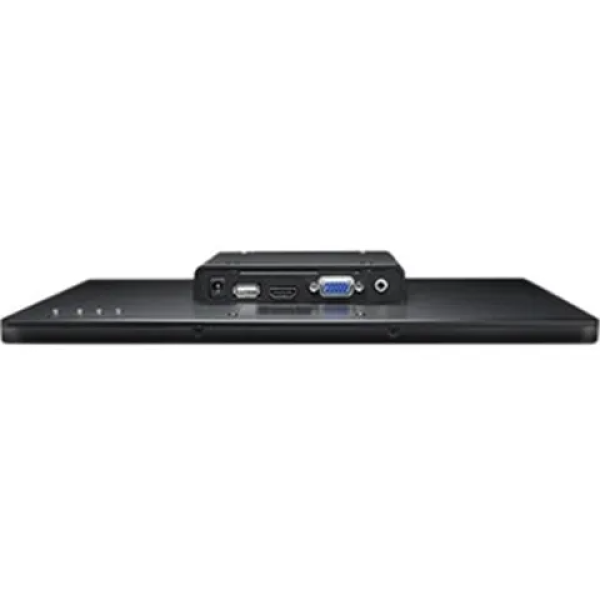

  • Output: 1 x VGA port, 1 x HDMI port
  • VESA: 75 x 75 mm



Manufacturer Warranty: 01 Year Limited Warranty

Technical Specifications

Display Brightness: 220 - 300 cd/m²
Max. Resolution: HD (1366 x 768) ; Optional FHD (1920 x 1080)
Size: 11.6" TFT LCD
Touch Screen Projected Capacitive Touch Panel (Pcap. Flat Glass)
Power Supply 12V DC
Color Black
I/O Interface Audio: Speak 2W x 1
Output: 1 x VGA port, 1 x HDMI port
Add-on Module MSR or iButton
Power 12V 25W Adapter
Operating Temperature 0 ~ 40° C
VESA Mounting Patterns 75 x 75 mm
Enviroment Operating Humidity: 10 ~ 95% @ 40°C non-condensing
