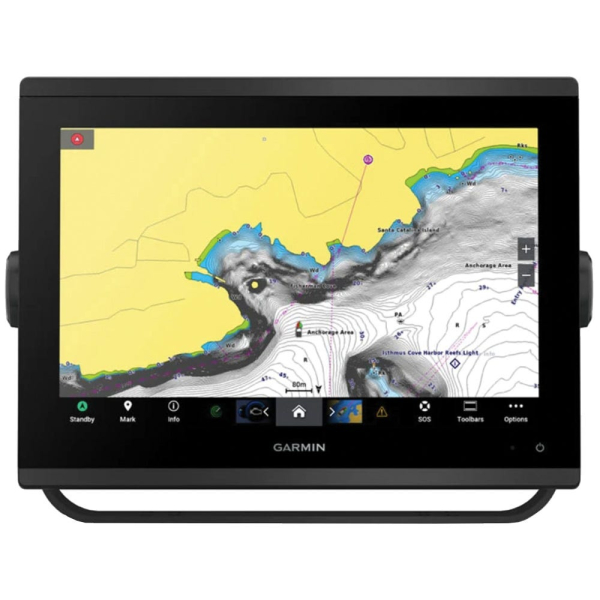

Garmin Gpsmap 1253xsv Traditional Chirp Sonar with Mapping

SKU : 010-02367-62
Brand : Garmin
Availablity : Online Only, In Stock
Ships within 1 and 3 days from our Seven Hills, NSW warehouse
Display Size: 10.3" X 6.4"; 12.1" Diagonal, Display Resolution: 1280 X 800 Pixels, Display Type: Wxga, Touchscreen: Yes, Warranty: 01 Year, 010-02367-62
Ask a question about this product
$4,480.00

Estimated Shipping

Pay what you see.

No surcharge On Credit Card, AMEX or Paypal. American express, master card, nab, Paypal, visa

Share

  • Description
  • Specifications
  • Reviews

Product Description

Manufacture # Garmin | Model # 010-02367-62



With its sleek design, powerful processing and upgraded IPS display, this advanced 7", 9" or 12" chartplotter integrates seamlessly into your Garmin marine system.



Features:

  • Easily integrate with more engines.
  • Connect to compatible third-party devices with OneHelm digital switching.
  • Easily build your marine system using the best of network connectivity.
  • Navigate any waters with preloaded Garmin Navionics+ charts and mapping.
  • See below your boat with built-in sonar capabilities.
  • Manage your marine experience from nearly anywhere.



Overview:

  • Display Size: 10.3" X 6.4"; 12.1" Diagonal, (26.2 X 16.3 Cm; 30.7 Cm Diagonal)
  • Display Resolution: 1280 X 800 Pixels
  • Display Type: Wxga
  • Touchscreen: Yes



Manufacturer Warranty: 01 Year Limited Warranty



GET A SHARPER VIEW FROM YOUR CONNECTED HELM

With its sleek design, powerful processing and upgraded IPS display, this advanced 7”, 9” or 12” chartplotter integrates seamlessly into your Garmin marine system.

Easily integrate with more engines.

Connect to compatible third-party devices with OneHelm™ digital switching.

Easily build your marine system using the best of network connectivity.

Navigate any waters with preloaded Garmin Navionics+™ charts and mapping.

See below your boat with built-in sonar capabilities.

Manage your marine experience from nearly anywhere.

See the world
below.

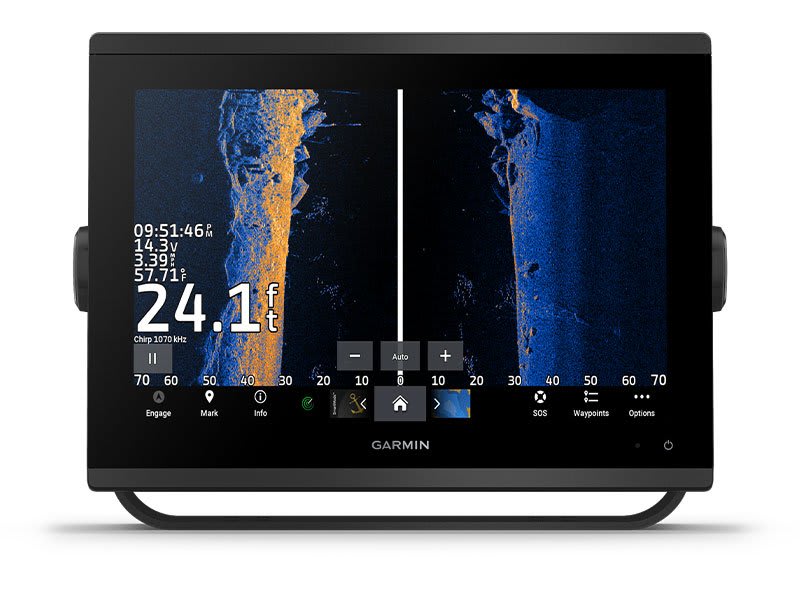

ULTRA HIGH-DEFINITION SCANNING SONAR

Get built-in Ultra High-Definition SideVü and ClearVü scanning sonars with vivid, high-contrast color palettes to help distinguish fish from structure. GPSMAP® X3 series also supports 1 kW CHIRP traditional sonar capabilities. Built-in sonar compatibility only available on xsv models.

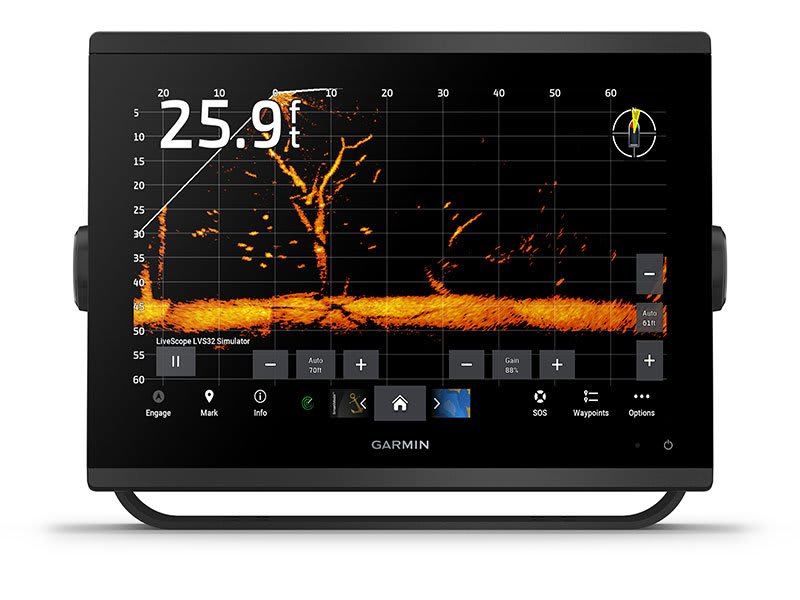

PANOPTIX™ & LIVESCOPE™ SONAR SUPPORT

Pair with Panoptix or LiveScope™ easy-to-interpret live sonar (transducer required, sold separately) to see all around your boat in real time.



Made for your helm.

FASTER, SHARPER, SMARTER

With its added processing power and new slimline design featuring edge-to-edge glass and a smaller unit footprint, it’s easy to retrofit this plotter in a wider range of dash configurations.

IMPROVED DISPLAY OPTICS

New higher-resolution IPS displays for 9" and 12" plotters offer improved sunlight readability and visibility from any angle, with 50% more pixels than previous-generation 9" GPSMAP devices.

CHARTS AND MAPS

Bring a fresh new look and feel to your chartplotter with optional Garmin Navionics+™ or premium Garmin Navionics Vision+™ cartography featuring integrated coastal/inland content, access to daily updates, Auto Guidance+™ technology and more.

OPTIONAL RADAR BUNDLE

To help you avoid weather and traffic on the water, the compact 4 kW GMR™ 18 HD+ dome radar is available as a bundled option with your GPSMAP chartplotter/sonar package.




Sail and navigate
with ease.

GARMIN SAILASSIST™ SAILING FEATURES

View laylines, race start line guidance, enhanced wind rose, heading and course-over-ground lines, true wind data fields and tide/current/time slider, wind angle, set and drift, wind speed and more.

OPTIONAL PREMIUM NAVIGATION FEATURES

These optional charts offer the best of Garmin and Navionics® data, Auto Guidance technology and other premium navigation features.

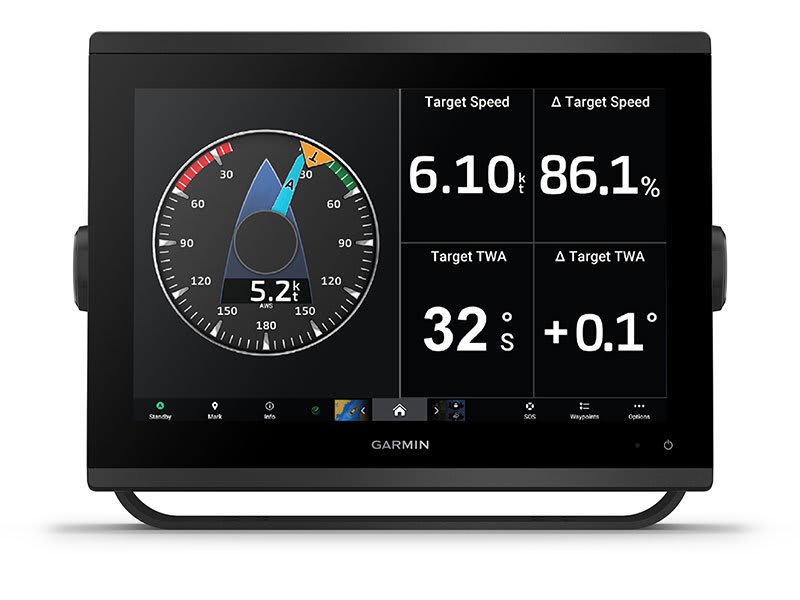

SAILING POLARS

Use the polar table to see key data, including how fast you should go at a certain wind angle and speed — so you know whether you need to adjust sail trim.

GARMIN MARINE NETWORK

If you have multiple compatible Garmin devices on your boat, you can share information — such as maps, user data, radar and IP camera video — among them.

NMEA 2000® AND NMEA 0183 NETWORKS

Connect to compatible autopilots, digital switching, weather, Fusion-Link™ audio system, media, VHF, AIS and more from one screen.

ACTIVECAPTAIN® APP

Built-in Wi-Fi® connectivity pairs with the free all-in-one mobile app for access to the OneChart™ feature, smart notifications, software updates, Garmin Helm™ digital switching, Garmin Quickdraw™ Community.

INTEGRATED ANT® TECHNOLOGY

Connect with some of your favourite devices, such as quatix® marine watches, gWind™ Wireless 2 transducers transducers, GNX™ Wind marine instruments and wireless remote controls.

ENGINE CONNECTIVITY

Now you can connect your chartplotter to different kinds of engines, including select Yamaha engines.

ONEHELM FEATURE

This feature brings together all the operations and capabilities of select third-party devices, such as EmpirBus™ digital switching, on one screen.

SEND INREACH® DEVICE MESSAGES

Pair your inReach satellite communicator to your chartplotter, and type custom messages using your MFD’s on-screen keyboard. Access your contact list or enter an email, inReach address or phone number. You can also group messages by conversation for a texting-like experience.




Manage your marine
experience using
the free
ActiveCaptain®
app.

Show the sea what you're made of with the quatix® 7X Solar smartwhatch

Make confident decision using GNX™ Wind Instruments

Technical Specifications

General :-
Dimension 12.1" X 8.9" X 3.2" (30.8 X 22.8 X 8.2 Cm)
Touchscreen Yes
Input Touchscreen
Display Size 10.3" X 6.4"; 12.1" Diagonal, (26.2 X 16.3 Cm; 30.7 Cm Diagonal)
Display Resolution 1280 X 800 Pixels
Display Type Wxga
Weight 6.6 Lbs. (3.0 Kg)
Waterproof Ipx7
Mounting Options Bail, Flush Or Flat (Garmin Does Not Offer Any Hardware Or Accessories For A Flat-mount Installation. Professional Tools And Knowledge Is Required.)
Maps & Memory :-
Accepts Data Cards 2 Microsd Cards (Back Of Unit)
Waypoints 5000
Track Points 50000
Tracks 50 Saved Tracks
Navigation Routes 100
Sensors :-
Has Built-in Receiver Yes
Receiver 10 Hz
Nmea 2000 Compatible Yes
Nmea 0183 Compatible Yes
Gps Yes
Glonass Yes
Galileo Yes
Supports Waas Yes
Built-in Maps :-
Built-in Auto Guidance+ Yes
Garmin Navionics+ Inland & Coastal Yes
Tide Tables Yes
Optional Map Support :-
Garmin Navionics+ Yes
Garmin Navionics Vision+ Yes
Topo Yes
Standard Mapping Yes
Garmin Quickdraw Contours Yes
Raster Chart Support Yes
Chartplotter Features :-
Smart Mode Compatible Yes
Ais Yes
Dsc Yes
Supports Fusion-link Compatible Radios Yes
Gsd Black Box Sonar Support Yes
Gcv Black Box Sonar Support Yes
Activecaptain Mobile Planning Compatible Yes
Grid (Garmin Remote Input Device) Compatible Yes
Wireless Remote Compatible Yes
Sailing Features Yes
Spoken Audio Alerts Yes
Onehelm Support Yes
Electrical Features :-
Power Input 10 To 32 Vdc
Typical Current Draw At 12 Vdc 1.68 A
Maximum Current Draw At 12 Vdc 3.56 A
Maximum Power Usage At 10 Vdc 43.0w
Sonar Features & Specifications :-
Displays Sonar Yes
Power Output 1 Kw
Traditional Sonar (Dual Frequency/Beam) Built-in (Single Channel Chirp, 70/83/200 Khz, L, M, H Chirp)
Clearvu Built-in 260/455/800/1000/1200 Khz
Sidevu Built-in 260/455/800/1000/1200 Khz
Panoptix Sonar Yes
Livescope Yes

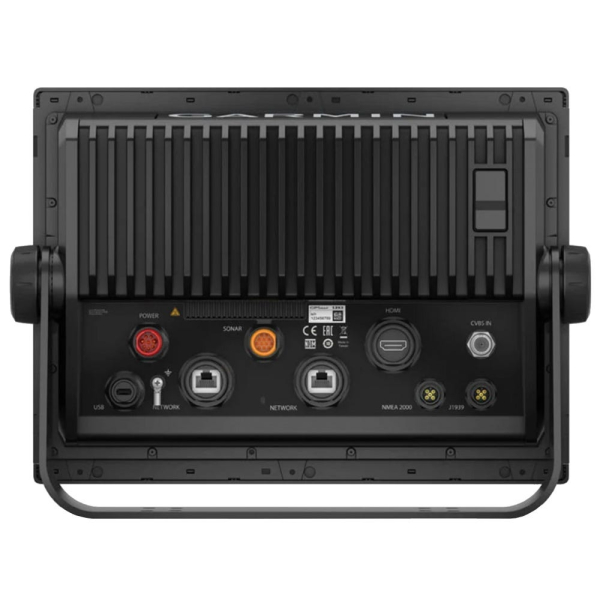

Connections :-
Nmea 2000 Ports 1
Connections Nmea0183 Input Ports 1
Nmea 0183 Input (Tx) Ports 1
Video Input Ports 1 (Bnc Composite); 1 Hdmi (Hdcp Compliant)
Video Output Ports 1 Hdmi
J1939 Ports 1
Garmin Marine Network Ports 2
12-pin Transducer Ports 1
Usb Ports Yes
Bnc External Gps Antenna Port Yes
Bluetooth Pairing Yes
Ant+ (Connectivity) Yes
Garmin Wi-fi Network (Local Connection) Yes
