Garmin Echomap UHD 75sv Touchscreen with GT56UHD-TM Transducer

SKU : 010-02521-20
Brand : Garmin
Availablity : Online Only, In Stock
Ships within 1 and 3 days or pick up from our Seven Hills, NSW warehouse within 1 to 3 days
Display Size: 6.1" X 3.4"; 7.0", Display Resolution: 800 X 480 Pixels, Display Type: Wvga, Np, Waterproof: Ipx7, Waypoints: 5000, Track Points: 50000, Warranty: 01 Year, 010-02521-20.
Ask a question about this product
$1,700.00

Estimated Shipping

Pay what you see.

No surcharge On Credit Card, AMEX or Paypal. American express, master card, nab, Paypal, visa

Share

  • Description
  • Specifications
  • Reviews

Product Description

Manufacture # Garmin | Model # 010-02521-20

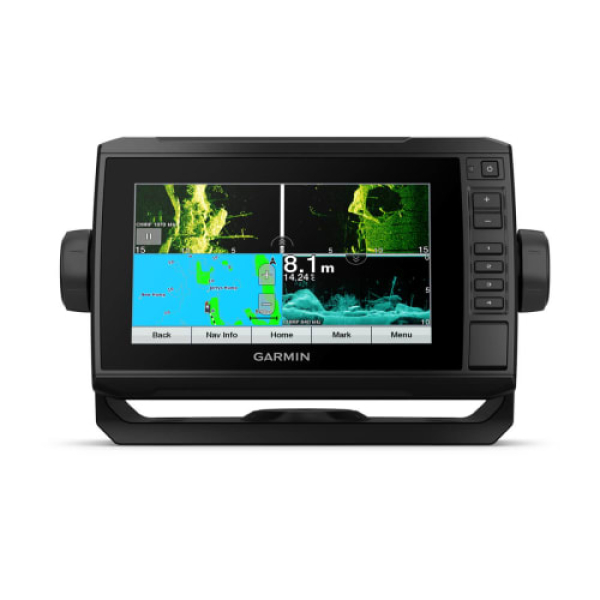

The sunlight-readable 7” touchscreen chartplotter features a quick-release bail mount, and the transducer bundle adds Ultra High-Definition scanning sonar and CHIRP traditional sonar.



Features:

  • See below and around your boat in incredible detail with included transducer.
  • Navigate any waters with preloaded Australia and New Zealand BlueChart g3 coastal charts.
  • Share data and maps with select ECHOMAP devices on your network.
  • Manage your marine experience from nearly anywhere1.
  • Control the most powerful trolling motor available2.
  • Create your own maps on the fly and tailor them to fit your needs.



Overview:

  • Display Size: 6.1" X 3.4"; 7.0"
  • Display Resolution: 800 X 480 Pixels
  • Display Type: Wvga, Np
  • Waterproof: Ipx7
  • Waypoints: 5000
  • Track Points: 50000



Manufacturer Warranty: 01 Year Limited Warranty

Technical Specifications

General :-
Dimension 9.8" X 5.5" X 2.0" (25 X 13.9 X 5.1 Cm)
Touchscreen Yes
Input Touchscreen With Keyed Assist
Display Size 6.1" X 3.4"; 7.0" Diagonal (15.5 X 8.6 Cm; 17.8 Cm Diagonal)
Display Resolution 800 X 480 Pixels
Display Type Wvga, Np
Weight 1.7 Lbs (0.77 Kg)
Waterproof Ipx7
Mounting Options Bail Or Flush
Maps & Memory :-
Accepts Data Cards 1 Microsd Card; 32 Gb Maximum Size
Waypoints 5000
Track Points 50000
Tracks 50 Saved Tracks
Navigation Routes 100
Sensors :-
Has Built-in Receiver Yes
Receiver 5 Hz
Nmea 2000 Compatible Yes
Nmea 0183 Compatible Yes
Gps Yes
Supports Waas Yes
Built-in Maps :-
Lakevu (Inland) Yes
Tide Tables Yes
Optional Map Support :-
Bluechart G3 Yes
Bluechart G3 Vision Yes
Lakevu G3 Yes
Lakevu G3 Ultra Yes
Garmin Navionics+ Yes
Garmin Navionics Vision+ Yes
Topo Yes
Standard Mapping Yes
Garmin Quickdraw Contours Yes
Chartplotter Features :-
Ais Yes
Dsc Yes
Supports Fusion-link Compatible Radios Yes
Activecaptain Mobile Planning Compatible Yes
Wireless Remote Compatible Yes
Sailing Features Yes
Electrical Features :-
Power Input 9 To 18 Vdc
Typical Current Draw At 12 Vdc 0.8 A
Maximum Current Draw At 12 Vdc 1.25 A
Maximum Power Usage At 10 Vdc 15w
Sonar Features & Specifications :-
Displays Sonar Yes
Power Output 500 W
Traditional Sonar (Dual Frequency/Beam) Built-in (Single Channel Chirp, 70/83/200 Khz, L, M, H Chirp)
Clearvu Built-in 260/455/800/1000/1200 Khz
Sidevu Built-in 260/455/800/1000/1200 Khz
Panoptix Sonar Yes
Livescope Yes
Connections :-
Nmea 2000 Ports 1
Connections Nmea0183 Input Ports 1
Nmea 0183 Input (Tx) Ports 1
Garmin Marine Network Ports 1 Panoptix Port
12-pin Transducer Ports 1
