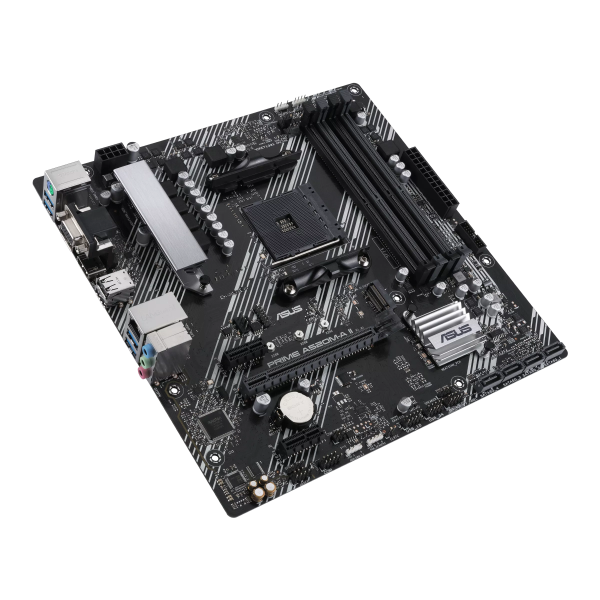

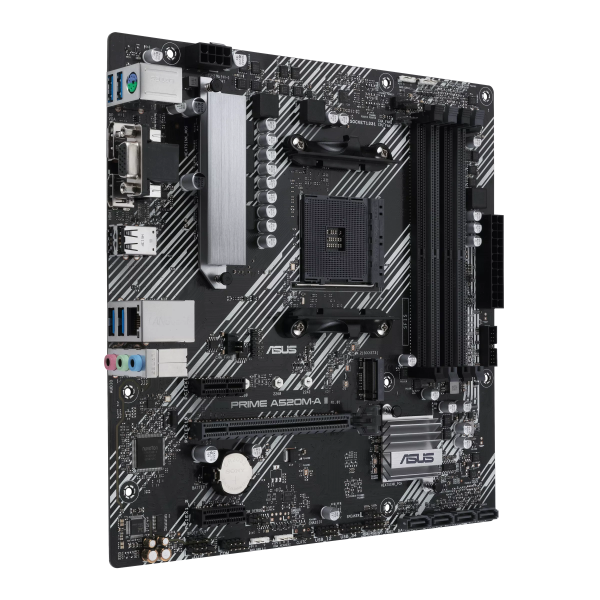

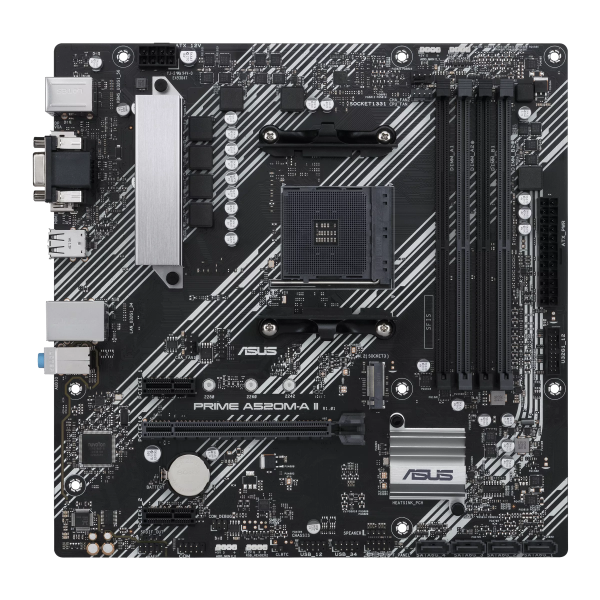

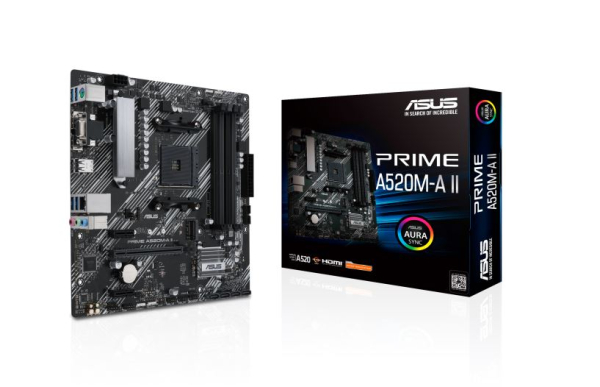

Name: Asus PRIME A520M-A II AM4 micro ATX Motherboard
Brand: Asus
SKU: PRIME A520M-A II
Price: 132 AUD
Availability: InStock

Asus PRIME A520M-A II AM4 micro ATX Motherboard

SKU : PRIME A520M-A II

Brand : Asus

Estimated Shipping

Find

Description
Specifications
Reviews

Product Description

Manufacture # Asus | Model # PRIME A520M-A II

ASUS Prime series is expertly engineered to unleash the full potential of AMD Ryzen platform. Boasting a robust power design, comprehensive cooling solutions and intelligent tuning options, Prime A520 series motherboards provide daily users and DIY PC builders a range of performance tuning options via intuitive software and firmware features.

Features:

AMD AM4 socket- Ready for Ryzen 5000 Series/ 4000 G-Series/ 3000 Series Desktop Processors
Comprehensive cooling- VRM heatsink, PCH heatsink, and Fan Xpert 2+
Ultrafast connectivity- M.2 support,1 Gb Ethernet, USB 3.2 Gen 1 Type-A
Aura Sync RGB- Onboard RGB headers and addressable Gen 2 headers for RGB LED strips, easily synced with Aura Sync-capable hardware

Overview:

Chipset: AMD A520
RAM Capacity: upto 128GB (32GB each)
DIMM Slots: 4
Operating System Supports: Windows 10 64bit
Form Factor: microATX
Dimensions: 24.4cm x 24.4cm

Manufacturer Warranty: 03 Years Limited Warranty

Write Review

Reviews

Write Review

Reviews

Be the first to write a review

Ask Question

Questions and Answers

Ask Question

Questions and Answers

Be the first to ask a question

Technical Specifications

General

Chipset

AMD A520

Socket

AM4
AMD Ryzen 5000 Series/ 5000 G-Series/ 4000 G-Series/ 3000 Series Desktop Processors

BIOS

128 Mb Flash ROM
UEFI AMI BIOS

Unique Features

Asus 5X PROTECTION III
Asus Q-Design
Asus Thermal Solution
AURA Sync

Memory

RAM Capacity

upto 128GB (32GB each)

DIMM Slots

RAM Frequency Supports

4866(OC) / 4800(OC) / 4600(OC) / 4466(OC) / 4400(OC) / 4266(OC) / 4133(OC) / 4000(OC) / 3866(OC) / 3733(OC) / 3600(OC) / 3466(OC) / 3333(OC) / 3200 / 3000 / 2800 / 2666 / 2400 / 2133 MHz, Un-buffered Memory

Onboard Graphics

With HDMI

1 X HDMI 2.1(4k@60Hz)

With DisplayPort

1 X Displayport 1.2

Wireless Communication

Wi-Fi

Bluetooth

Slots And Ports

Expansion Slots

1 x PCIe 3.0 x16 slot (supports x16 mode)
2 x PCIe 3.0 x1 slots
M.2 slot (Key M), type 2242/2260/2280 (supports PCIe 3.0 x4 & SATA modes)

Internal I/O Connectors

1 x 4-pin CPU Fan header
2 x 4-pin Chassis Fan headers
1 x 24-pin Main Power connector
1 x 8-pin +12V Power connector
1 x M.2 slot (Key M)
4 x SATA 6Gb/s ports
1 x USB 3.2 Gen 1 header supports additional 2 USB 3.2 Gen 1 ports
2 x USB 2.0 headers support additional 4 USB 2.0 ports
2 x AURA Addressable Gen 2 header
2 x AURA RGB headers
1 x Clear CMOS header
1 x COM Port header
1 x Front Panel Audio header (AAFP)
1 x S/PDIF Out header
1 x Speaker header
1 x SPI TPM header (14-1pin)
1 x 10-1 pin System Panel header

Back Panel Connectors

4 x USB 3.2 Gen 1 ports (4 x Type-A)
2 x USB 2.0 ports (2 x Type-A)
1 x DisplayPort
1 x HDMITM port
1 x D-Sub
1 x Realtek 1Gb Ethernet port
3 x Audio jacks
1 x PS/2 Keyboard/Mouse combo port
