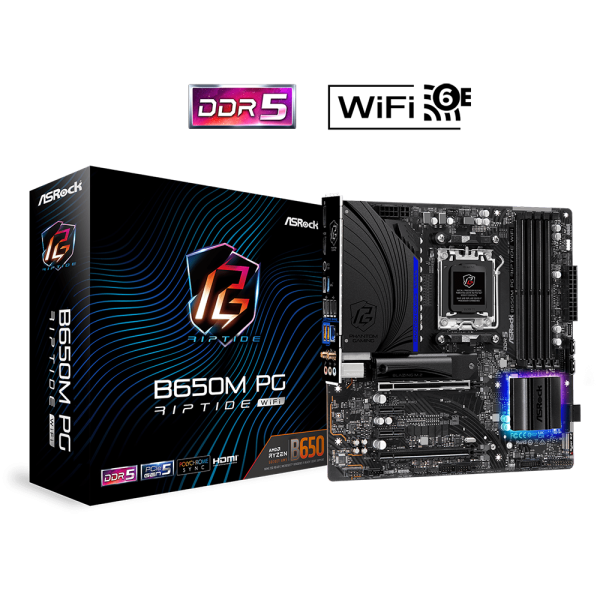

Name: AsRock B650M PG Riptide WiFi DDR5 Micro-ATX AM5 Motherboard
Brand: ASRock
SKU: B650M PG RIPTIDE WIFI
Price: 260 AUD
Availability: InStock

AsRock B650M PG Riptide WiFi DDR5 Micro-ATX AM5 Motherboard

SKU : B650M PG RIPTIDE WIFI

Estimated Shipping

Find

Description
Specifications
Reviews

Product Description

Manufacture # AsRock | Model # B650M PG RIPTIDE WIFI

Riptide is named after a specific kind of water current with strong waves that occurs in the ocean, representing the philosophy of sea’s double-side, calm and unlimited strength. Built around powerful gaming-related features, the Riptide has given a powerful smash and immersed users in the sense of stability.

Features:

Supports AMD Ryzen 8000 and 7000 Series Processors
12+2+1 Power Phase, Dr.MOS
Supports DDR5 7200MHz (OC)
2 PCIe 4.0 x16, 2 PCIe 3.0 x1
Graphics Output Options: HDMI, DisplayPort
Realtek ALC897 7.1 CH HD Audio Codec, Nahimic Audio
4 SATA3, 1 Blazing M.2 (PCIe Gen5x4), 1 Hyper M.2 (PCIe Gen4x4)

Overview:

Chipset: AMD B650
BIOS: 256Mb AMI UEFI Legal BIOS with GUI support
RAM Capacity: upto 192GB (48GB each)
DIMM Slots: 4
Operating System Supports: Microsoft Windows 10 64-bit / 11 64-bit
Form Factor: Micro ATX

Manufacturer Warranty: 03 Years Limited Warranty

4.7

5	☆
4	☆
3	☆
2	☆
1	☆

Write Review

Reviews (10)

Write Review

Reviews (10)

Ask Question

Questions and Answers

Ask Question

Questions and Answers

Be the first to ask a question

Technical Specifications

General

Chipset

AMD B650

Socket

AM5
AMD Ryzen 8000 and 7000 Series Processors

BIOS

256Mb AMI UEFI Legal BIOS with GUI support

Unique Features

Superb Productivity
Rock-Solid Durability
Ultrafast Gaming
EZ Update
EZ Troubleshooter

Memory

RAM Capacity

upto 192GB (48GB each)

DIMM Slots

RAM Frequency Supports

DDR5 7200+(OC), Un-buffered Memory

Onboard Graphics

With HDMI

1 x HDMI 2.1 TMDS/FRL 8G Compatible, supports HDR, HDCP 2.3 and max. resolution up to 4K 120Hz

With DisplayPort

1 x DisplayPort 1.4 with DSC (compressed), supports HDCP 2.3 and max. resolution up to 4K 120Hz

Wireless Communication

Wi-Fi

802.11ax Wi-Fi 6E Module
Supports IEEE 802.11a/b/g/n/ac/ax
Supports Dual-Band 2x2 with extended 6GHz band* support

Bluetooth

5.2

Slots And Ports

Expansion Slots

1 x PCIe 4.0 x16 Slot
2 x PCIe 3.0 x1 Slots
1 x Vertical M.2 Socket
1 x Blazing M.2 Socket (M2_1, Key M), supports type 2260/2280 PCIe Gen5x4 (128 Gb/s) mode
1 x Hyper M.2 Socket (M2_2, Key M), supports type 2260/2280 PCIe Gen4x4 (64 Gb/s) mode

Internal I/O Connectors

1 x SPI TPM Header
1 x Power LED and Speaker Header
1 x RGB LED Header*
3 x Addressable LED Headers**
1 x CPU Fan Connector (4-pin)***
1 x CPU/Water Pump Fan Connector (4-pin) (Smart Fan Speed Control)****
3 x Chassis/Water Pump Fan Connectors (4-pin) (Smart Fan Speed Control)*****
1 x 24 pin ATX Power Connector
1 x 8 pin 12V Power Connector
1 x 4 pin 12V Power Connector
1 x Front Panel Audio Connector
1 x Thunderbolt™ AIC Connector (5-pin) (Supports ASRock Thunderbolt™ 4 AIC Card)
2 x USB 2.0 Headers (Support 4 USB 2.0 ports)
2 x USB 3.2 Gen1 Headers (Support 4 USB 3.2 Gen1 ports)
1 x Front Panel Type C USB 3.2 Gen1 Header

Back Panel Connectors

2 x Antenna Ports
1 x HDMI Port
1 x DisplayPort 1.4
1 x USB 3.2 Gen2 Type-A Port (10 Gb/s) (ReDriver)
1 x USB 3.2 Gen2 Type-C Port (10 Gb/s) (ReDriver)
2 x USB 3.2 Gen1 Ports (USB32_23 are Lightning Gaming Ports.)
4 x USB 2.0 Ports
1 x RJ-45 LAN Port
1 x BIOS Flashback Button
HD Audio Jacks: Line in / Front Speaker / Microphone
