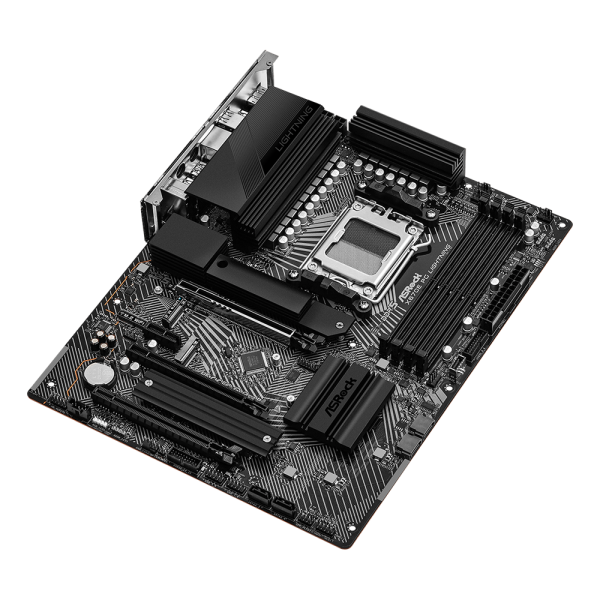

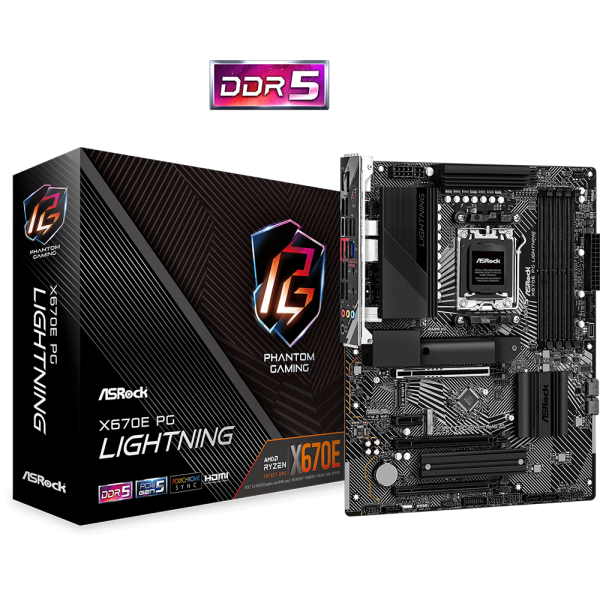

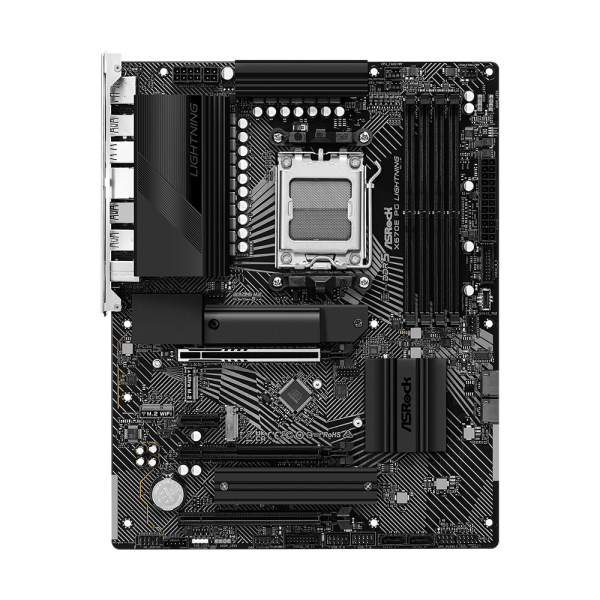

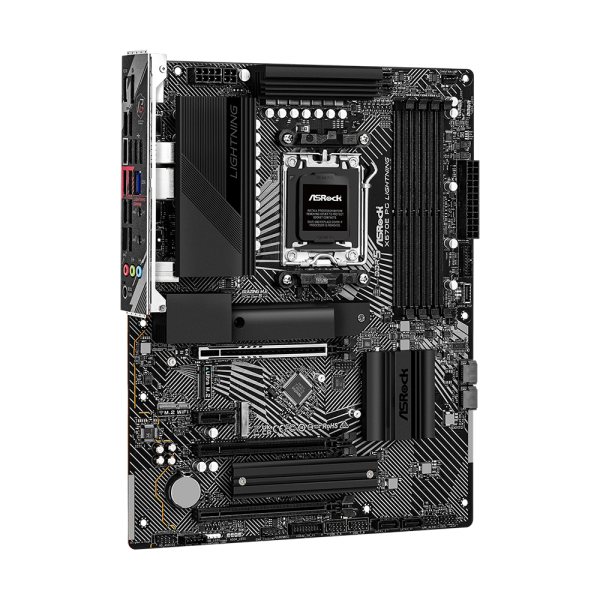

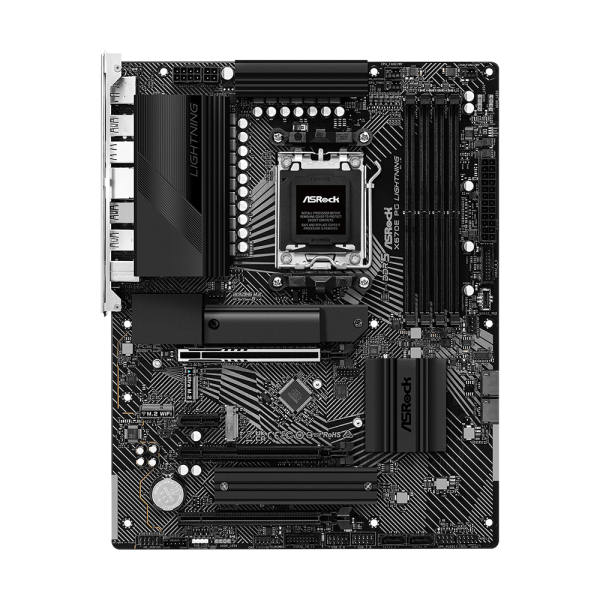

Name: ASRock X670E PG Lightning DDR5 ATX Motherboard
Brand: ASRock
SKU: X670E PG LIGHTNING
Price: 431 AUD
Availability: InStock

ASRock X670E PG Lightning DDR5 ATX Motherboard

SKU : X670E PG LIGHTNING

Brand : ASRock

Availablity : on order
On Order items usually have to be ordered in and may take bit longer to get them delivered from our Seven Hills, NSW warehouse

Estimated Shipping

Find

Description
Specifications
Reviews

Product Description

Manufacture # ASRock | Model # X670E PG LIGHTNING

The built for stable and reliable designing concept, ASRock does not compromise on any details. All X670E motherboards are built with 8-Layer and premium low-loss materials, enthusiasts are able to enjoy the boost of DDR5 memory overclocking performance up to 7600MHz and beyond by enabling the pre-tested profiles. Make sure the memory modules are AMD EXPO™/ Intel^® XMP capable and overclocking can be made so affordable, satisfying and absolutely no sweat at all.

Features:

Supports AMD Socket AM5 Ryzen 8000 and 7000 Series Processors
14+2+1 Phase Power Design, SPS
4 x DDR5 DIMMs, supports up to 7200+(OC)
1 PCIe 5.0 x16, 2 PCIe 4.0 x16, 1 PCIe 4.0 x1,
1 M.2 Key-E for WiFi
Graphics Output Options: 1 HDMI, 1 DisplayPort
Realtek ALC897 7.1 CH HD Audio Codec, Nahimic Audio

Overview:

Chipset: AMD X670
RAM Capacity: upto 192GB (48GB each)
BIOS: 256Mb AMI UEFI Legal BIOS with GUI support
DIMM Slots: 4
OS: Microsoft Windows 10 64-bit / 11 64-bit
Form Factor: ATX

Manufacturer Warranty: 03 Years Limited Warranty

Technical Specifications

General

Chipset

AMD X670

Socket

AM5
AMD Ryzen 8000 and 7000 Series Processors

BIOS

256Mb AMI UEFI Legal BIOS with GUI support

Unique Features

Superb Productivity
Rock-Solid Durability
Ultrafast Connectivity
EZ Update
EZ Troubleshooter

Memory

RAM Capacity

upto 192GB (48GB each)

DIMM Slots

RAM Frequency Supports

DDR5 7200+(OC), Un-buffered Memory

Onboard Graphics

With HDMI

1 x HDMI 2.1 TMDS/FRL 8G Compatible, supports HDR, HDCP 2.3 and max. resolution up to 4K 120Hz

With DisplayPort

1 x DisplayPort 1.4 with DSC (compressed), supports HDCP 2.3 and max. resolution up to 4K 120Hz

Wireless Communication

Wi-Fi

Bluetooth

Slots And Ports

Expansion Slots

1 x PCIe 5.0 x16 Slot
1 x PCIe 4.0 x16 Slot
1 x PCIe 4.0 x1 Slot
1 x Blazing M.2 Socket (M2_1, Key M), supports type 2280 PCIe Gen5x4 (128 Gb/s) mode
1 x Ultra M.2 Socket (M2_2, Key M), supports type 2280 SATA3 6.0 Gb/s & PCIe Gen3x4 (32 Gb/s)

Internal I/O Connectors

1 x SPI TPM Header
1 x Power LED and Speaker Header
1 x RGB LED Header*
3 x Addressable LED Headers**
1 x CPU Fan Connector (4-pin)***
1 x CPU/Water Pump Fan Connector (4-pin) (Smart Fan Speed Control)****
4 x Chassis/Water Pump Fan Connectors (4-pin) (Smart Fan Speed Control)*****
1 x 24 pin ATX Power Connector
1 x 8 pin 12V Power Connector (Hi-Density Power Connector)
1 x 4 pin 12V Power Connector (Hi-Density Power Connector)
1 x Front Panel Audio Connector
1 x Thunderbolt™ AIC Connector (5-pin) (Supports ASRock Thunderbolt™ 4 AIC Card)
2 x USB 2.0 Headers (Support 4 USB 2.0 ports)
2 x USB 3.2 Gen1 Headers (Support 4 USB 3.2 Gen1 ports)
1 x Front Panel Type C USB 3.2 Gen2x2 Header (20 Gb/s) (ReDriver)

Back Panel Connectors

2 x Antenna Mounting Points
1 x HDMI Port
1 x DisplayPort 1.4
1 x USB 3.2 Gen2x2 Type-C Port (20 Gb/s)
1 x USB 3.2 Gen2 Type-A Port (10 Gb/s)
6 x USB 3.2 Gen1 Ports (USB32_34 are Lightning Gaming Ports)
4 x USB 2.0 Ports
1 x RJ-45 LAN Port
1 x BIOS Flashback Button
HD Audio Jacks: Line in / Front Speaker / Microphone
