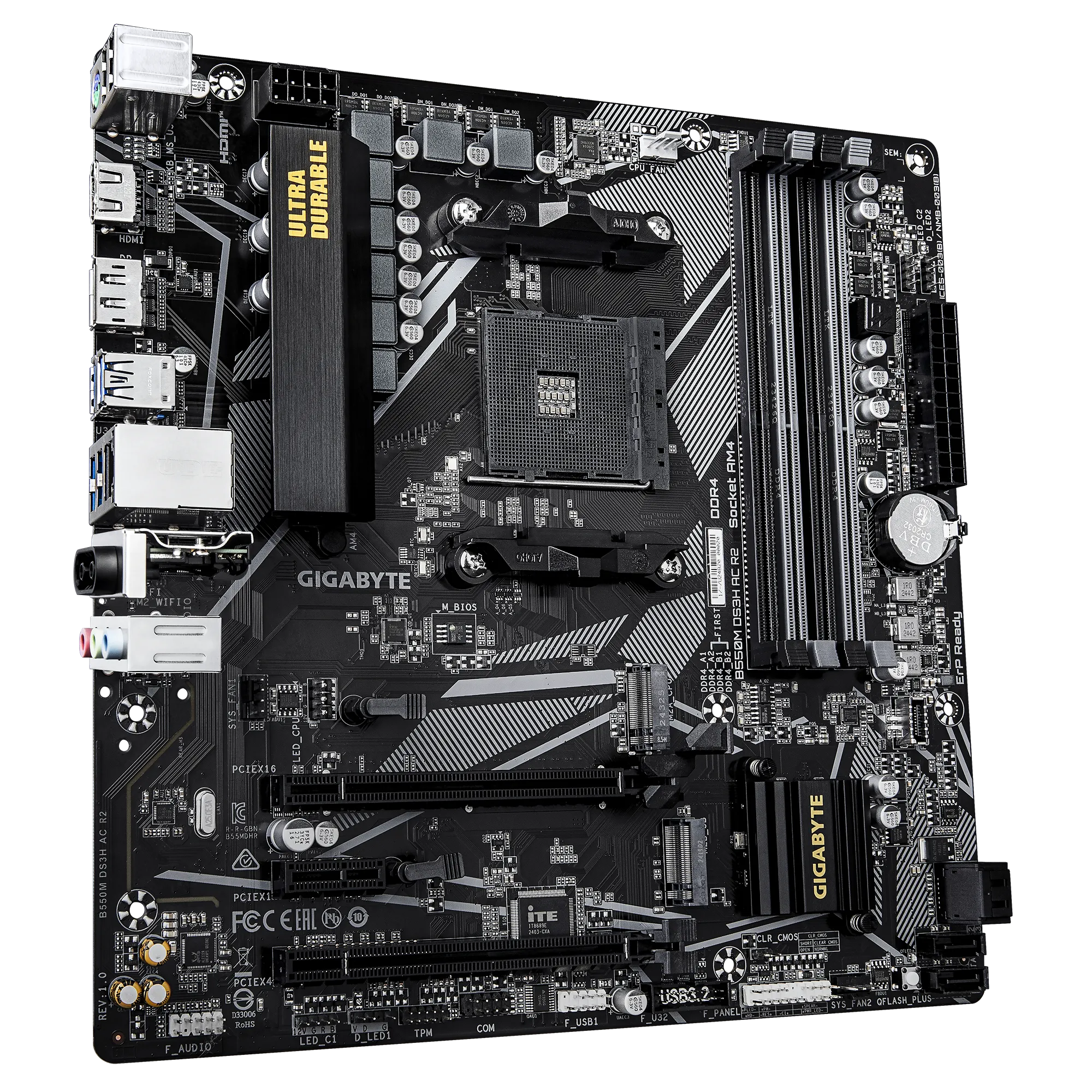

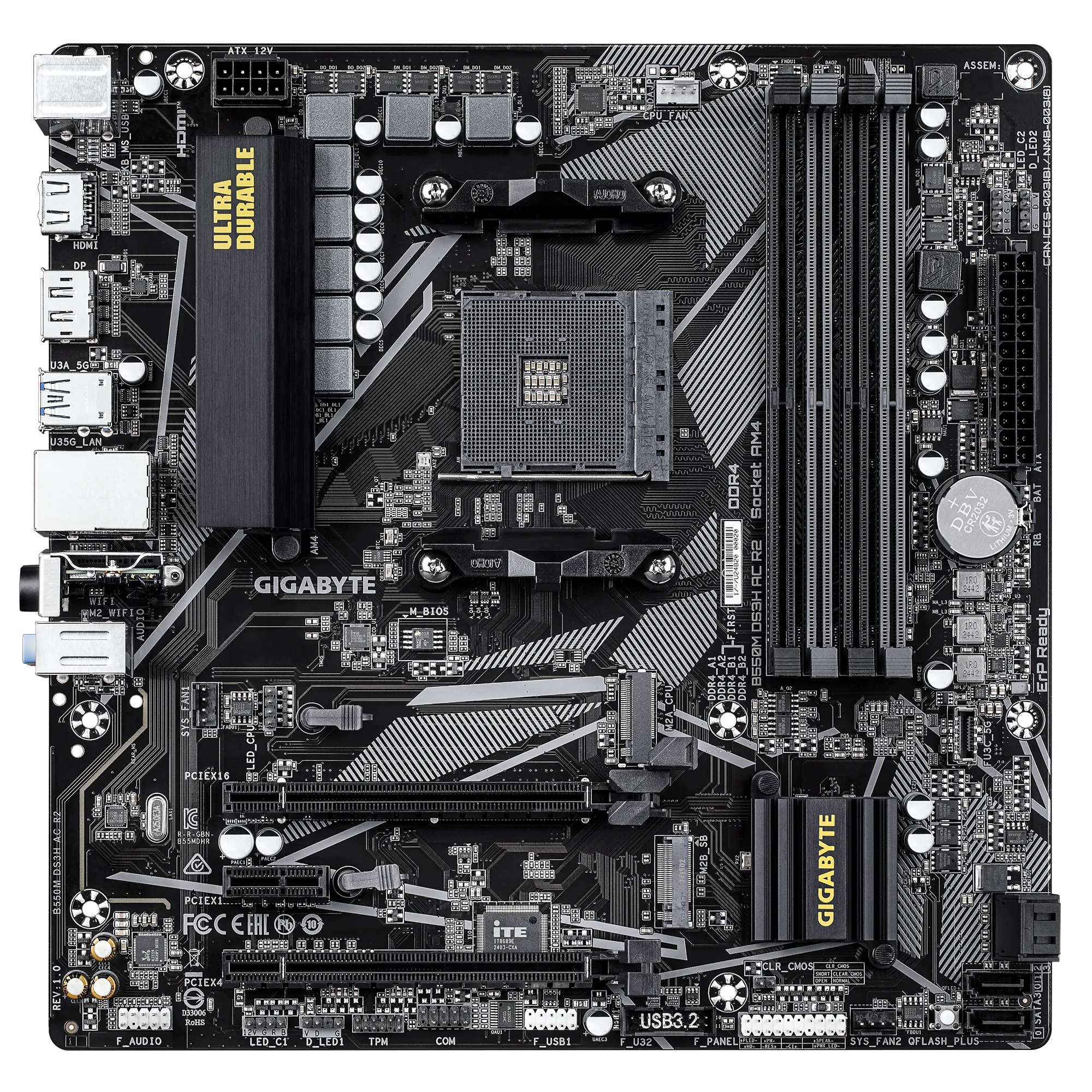

Gigabyte B550M DS3H AC R2 Motherboard AM4 DDR4 Micro-ATX Motherboard

Description

Manufacture: Gigabyte | Model: GA-B550M DS3H AC R2

The GIGABYTE GA-B550M DS3H AC R2 is a performance-focused micro-ATX motherboard designed to unleash the full potential of AMD Ryzen™ 5000, 4000, and 3000 series processors. With a digital 5+3 phase VRM solution, PCIe 4.0 slots, and dual M.2 connectors, it ensures lightning-fast storage and enhanced stability. Featuring Wi-Fi 5 with Bluetooth 5.0, Realtek GbE LAN, and HDMI 2.1 support, it offers rich connectivity and multimedia performance. Smart Fan 6 and VRM Thermal Armor Advanced keep your system cool and quiet, while RGB Fusion 2.0 adds flair with addressable RGB lighting support. Ideal for gamers and creators seeking a compact yet feature-rich platform.

Key Features

• Socket AM4: Supports AMD Ryzen™ 5000/4000/3000 series processors

• Power Design: Digital 5+3 phase VRM with low RDS(on) MOSFETs

• Dual M.2 Slots: Includes PCIe 4.0 x4 for ultra-fast NVMe storage

• Wi-Fi + Bluetooth: Integrated Intel® Dual Band 802.11ac Wi-Fi + BT 5.0

• PCIe 4.0 Ready: With reinforced PCIe x16 slot for high-end GPUs

• Memory Support: Up to 128GB DDR4 4733+ (OC), dual channel

• Display Outputs: HDMI 2.1 and DisplayPort 1.4 (up to 5K resolution)

• Cooling: Smart Fan 6 with multiple headers and fan curve controls

• Audio: Realtek ALC1220 codec with DSD audio support

• Lighting: RGB Fusion 2.0 with addressable LED support

• Networking: Realtek GbE LAN with bandwidth management

• Storage RAID: Supports RAID 0/1/10 on both SATA and NVMe SSDs

• BIOS Features: Q-Flash Plus, UEFI BIOS, BIOS profile saving

• Form Factor: Micro ATX – 24.4 cm x 24.4 cm
