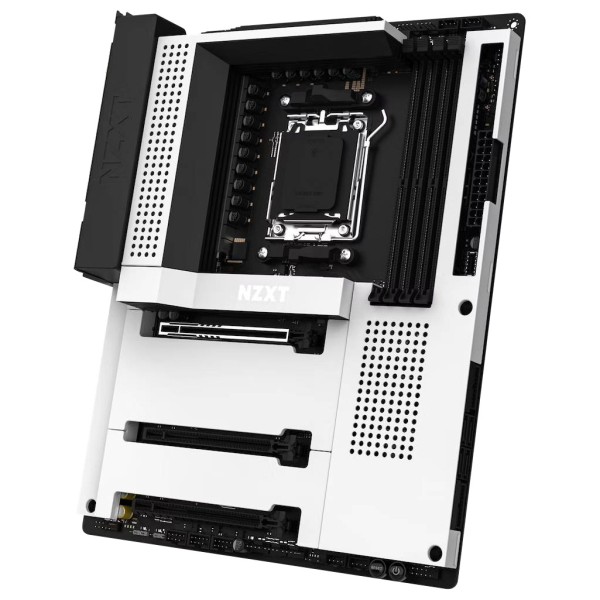

Name: NZXT N7 B650E Wi-Fi AM5 ATX Motherboard White
Brand: NZXT
SKU: N7-B65XT-W1
Price: 597 AUD
Availability: InStock

NZXT N7 B650E Wi-Fi AM5 ATX Motherboard White

SKU : N7-B65XT

Brand : NZXT

Availablity : Online Only, In Stock
Ships within 1 and 3 days from our Seven Hills, NSW warehouse

Estimated Shipping

Find

Description
Specifications
Reviews

Product Description

Manufacture # NZXT | Model # N7-B65XT-W1

Leverage the full value of your AMD Ryzen 7000 series CPU with the AMD B650 chipset. The N7 B650E features upgraded compatibility as well as N7 favorites, such as digital RGB and fan control, Wi-Fi 6e, and more.

Features:

16+2+1 Power phase design with 90A Smart Power Stage
Seamless cover with integrated heat spreader
Digital RGB lighting control through CAM
Digital fan control for convenient fan profiles with seven independent fan channels

Overview:

Chipset: AMD B650E
DIMM Slots: 4, DDR5 only
Max Memory Support: 128GB
Wireless: 802.11ax Wi-Fi 6E Module:Supported, Bluetooth: V5.2
Audio: Realtek ALC1220 Codec

Manufacturer Warranty: 03 Years Limited Warranty

Technical Specifications

CPU	AMD Socket AM5 Ryzen 7000 Series Processors:Supported
Chipset	AMD B650E
Memory	DIMM Slots:4, DDR5 only Max Memory Support:128GB Memory Architecture:Dual-Channel OC Frequency:DDR5 Non-ECC, Un-buffered Memory up to 6000+ (OC). Please refer to Memory QVL on NZXT’s website (www.nzxt.com) for more information. Extreme Memory Profile (XMP):Supported EXTended Profiles for Overclocking (EXPO):Supported
Expansion Slots	PCIe 5.0 x16 slt (PCIEX16_1), supports ×16 mode:1 (Supports NVMe SSD as boot disks) PCIe 4.0 x16 slots (PCIEX16_2 and PCIEX16_3), support ×2 mode:2 (Supports NVMe SSD as boot disks) M.2 Socket (Key E), supports Type 2230 Wi-Fi/BT PCIe Wi-Fi module:1
Integrated Graphics	Integrated AMD RDNA 2 graphics:Supported HDMI 2.1 TMD Compatible:1 HDR:Supported HDCP 2.3:max. resolution up to 4K 60Hz
Storage	M.2_1, Type 2242/2260/2280 (PCIe 5.0 ×4 mode):1 M.2_2, Type 2242/2260/2280 (PCIe 4.0 ×4 mode):1 M.2_3, Type 2242/2260/2280 (PCIe 4.0 ×2 mode):1 SATA 6Gb/s ports:4 RAID 0/1/10 for SATA storage devices:Supported RAID 0/1/10 for M.2 NVMe storage devices:Supported NVMe SSD as boot disks:Supported
Lan	Realtek:RTL8125BG 2.5G LAN
Wireless	802.11ax Wi-Fi 6E Module:Supported Bluetooth:V5.2
Audio	Realtek:ALC1220 Codec

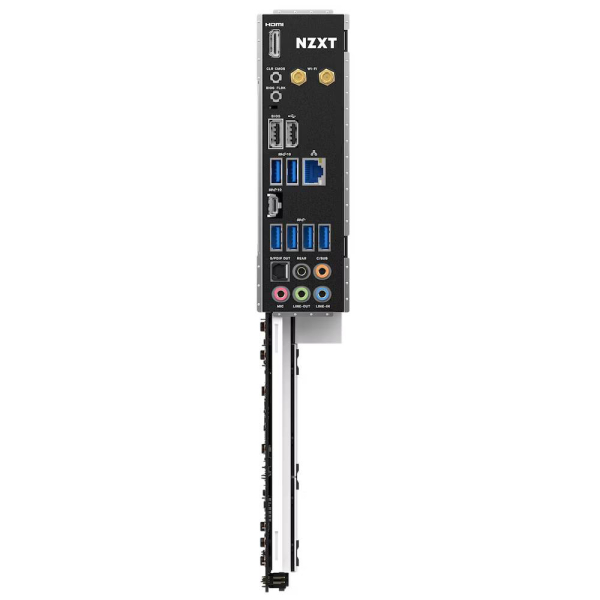

Rear I/O	Wireless antenna SMA connectors:2 HDMI port:1 USB 2.0:2 USB 3.2 Gen 2 Type-C port:1 USB 3.2 Gen 2 ports:2 USB 3.2 Gen 1 ports:4 Clear CMOS button:1 BIOS Flashback button:1 LAN (RJ45) port:1 Audio jacks:5 Optical S/PDIF Out port:1
Internal I/O	24-pin ATX power connector:1 8+4-pin ATX 12V power connector:1 4-pin CPU_FAN connector:1 4-pin AIO_PUMP connector:1 4-pin SYS_FAN connectors:5 NZXT RGB LED connectors:4 5V ARGB LED connector:2 USB 2.0 header (Up to 6 USB 2.0 ports):3 USB 3.2 Gen1 header (Up to 4 USB 3.2 Gen 1 ports):2 USB 3.2 Gen2x2 front panel header (For USB Type-C):1 Front panel audio connector:1 Power button:1 Reset button:1 POST LEDs:4
General	System Requirements:NZXT CAM software requires Microsoft Windows 11/10 operating system. Form Factor:ATX
Inside The Box	N7 B650E Motherboard x 1 SATA cables (2 x 90°, 2 x 180°) x 4 M.2 screws x 2 Wireless antenna x 2
