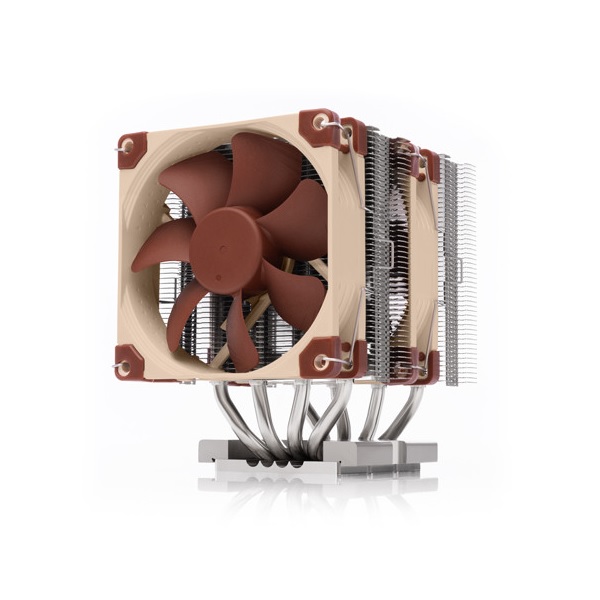

Manufacture # Noctua | Model # NH-D9-DX-3647-4U
Noctua’s DX line CPU coolers have become a default choice in premium grade quiet cooling solutions for Intel Xeon processors. The NH-D9 DX-3647 4U features a larger, custom-designed contact surface and supports both square and narrow type LGA3647-0 platforms. Based on the proven, 92mm size NH-D9L heatsink and equipped with two of Noctua’s award-winning, PWM controlled NF-A9 92mm fans (high-efficiency 2500rpm version), it combines strong performance with excellent compatibility for 4U systems and other space-restricted applications. Topped off with the professional SecuFirm2™ mounting system and pre-applied NT-H1 thermal compound, the NH-D9 DX-3647 4U forms a complete premium quality package for quietly cooling LGA3647 based Xeon workstations and servers.
Features:
- The new DX-3647 line coolers are dedicated, customised solutions for Intel’s professional LGA3647 platform, which makes them an ideal fit for both Skylake-SP based Xeon Scalable CPUs (Platinum, Gold, Silver or Bronze, Purley series) and Xeon-Phi processors (code names Knight’s Landing or Knight’s Mill).
- At 70x56mm, the heatsink’s copper contact surface is more than double the size of the standard model. Tailored to fit the enormous integrated heat-spreaders (IHS) of Intel’s LGA3647-based processors, this customised design allows for an optimal heat flow from the CPU over the base to the heatpipes and on to the cooling fins.
- The heatsink’s SecuFirm2 mounting system includes two sets of brackets in order to support both square and narrow type LGA3647-0 sockets.
- The NH-D9 DX-3647 4U is equipped with two of Noctua’s award-winning NF-A9 92mm fans in their high-speed 2500rpm HS-PWM variant.
- This push/pull dual fan configuration makes it possible to achieve a level of cooling performance that is remarkable for such a compact cooler and comes close to the bigger NH-U12S DX-3647.
- The NF-A9 premium fans supplied with the NH-D9 DX-3647 4U support PWM for convenient automatic speed control through the motherboard, which allows them to run near silent at lighter loads and to speed up only when necessary.
Overview:
- Socket compatibility: Intel Xeon LGA3647-0
- NSPR: 134
- Max. acoustical noise: 30,6 dB(A)
- Input power (max.): 1,68 W
- Voltage range: 12 V
Manufacturer Warranty: 06 Years Limited Warranty
